Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the rear side door stepwell lamp.
  2. Install the molding to the pillar:
    1. 2.1. Align the fasteners with the slots in the pillar.
    2. 2.2. Press firmly until the fasteners are fully seated.

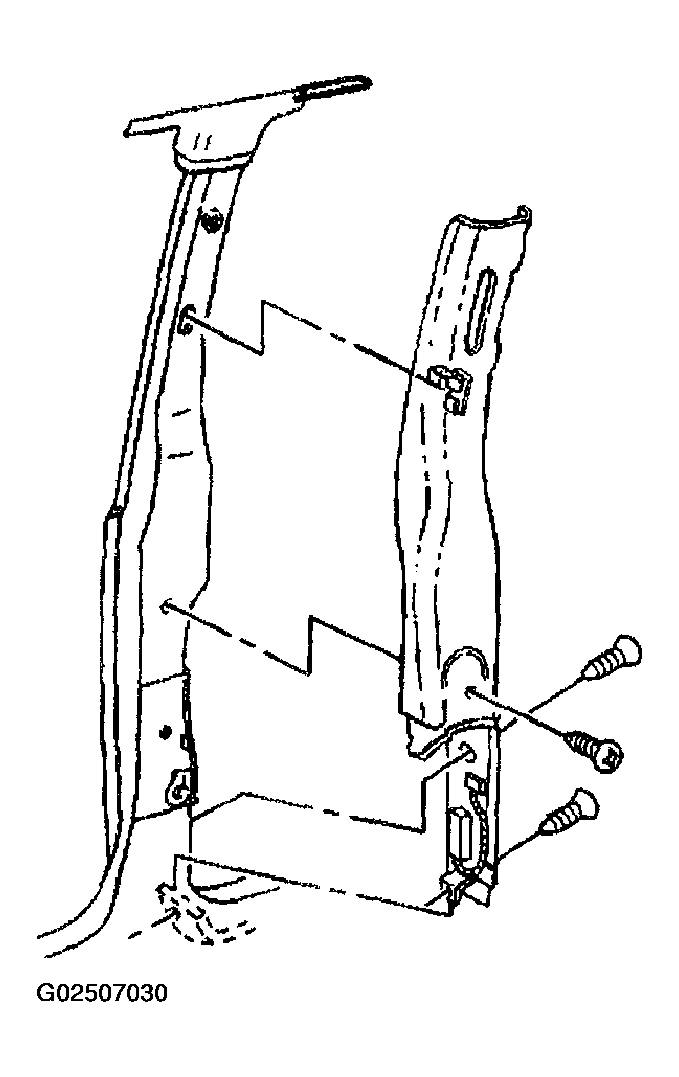

    Fig 1: Installing Garnish Molding Screws
    G02507030Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the bolts that retain the assist handle to the pillar.

    Tighten

    Tighten the bolts that retain the assist handle to the pillar to 8 N.m (71 in. lb.).

  4. Install the front passenger's seat belt upper retainer. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FR in Seat Belts.
  5. Install the retaining screws.

    Tighten

    Tighten the retaining screws to 2 N.m (18 in. lb.).

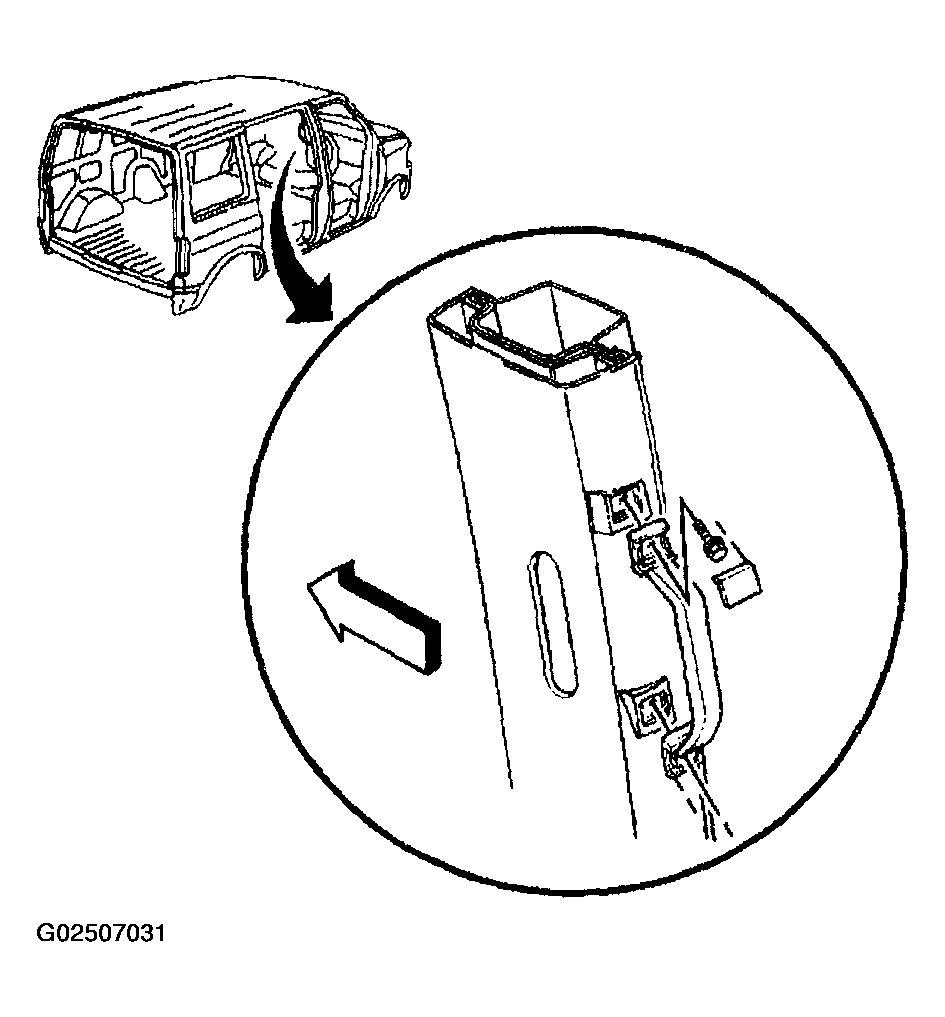

    Fig 2: Installing Screws Retaining Assist Handle To RF Lock Pillar
    G02507031Courtesy of GENERAL MOTORS CORP.
