Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the retaining screw from the garnish molding.
  2. Remove the driver's side seat belt upper mounting bolt. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FR in Seat Belts.
  3. Pull back on the garnish molding in order to release the fasteners.
  4. Remove the garnish molding from the pillar.

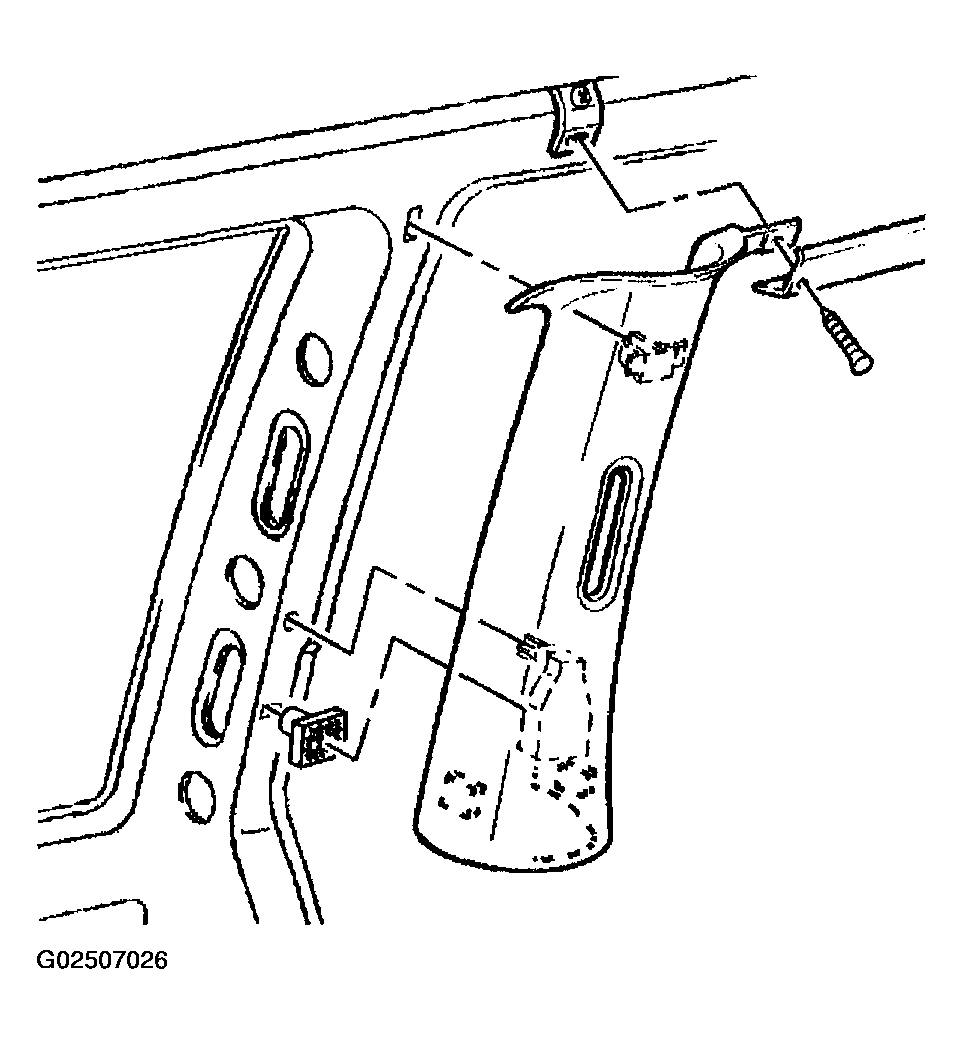

    Fig 1: Removing LF Lock Pillar Garnish Molding
    G02507026Courtesy of GENERAL MOTORS CORP.
