Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the garnish molding to the pillar:
    1. 1.1. Align the locator pin with the pillar.
    2. 1.2. Press the locator pin firmly into place, seating all fasteners.
  2. Install the driver's seat belt upper mounting bolt. Refer to SHOULDER BELT GUIDE ADJUSTER REPLACEMENT - FR in Seat Belts.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  3. Install the garnish molding retaining screw.

    Tighten

    Tighten the garnish molding retaining screw to 2 N.m (18 in. lb.).

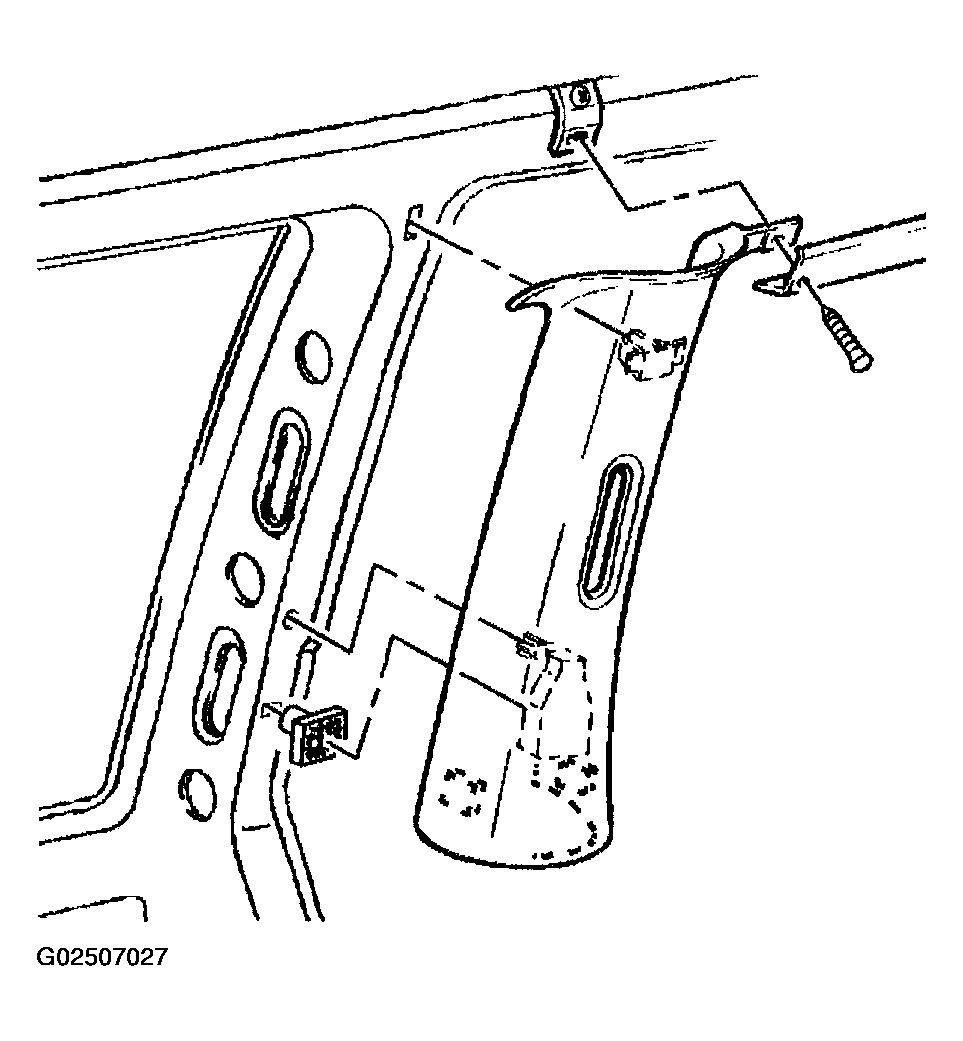

    Fig 1: Installing LF Lock Pillar Garnish Molding
    G02507027Courtesy of GENERAL MOTORS CORP.
