Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel extension. Refer to INSTRUMENT PANEL, GAGES & CONSOLE .
  2. Remove the floor air outlet duct. Refer to MANUAL A/C-HEATER SYSTEMS .

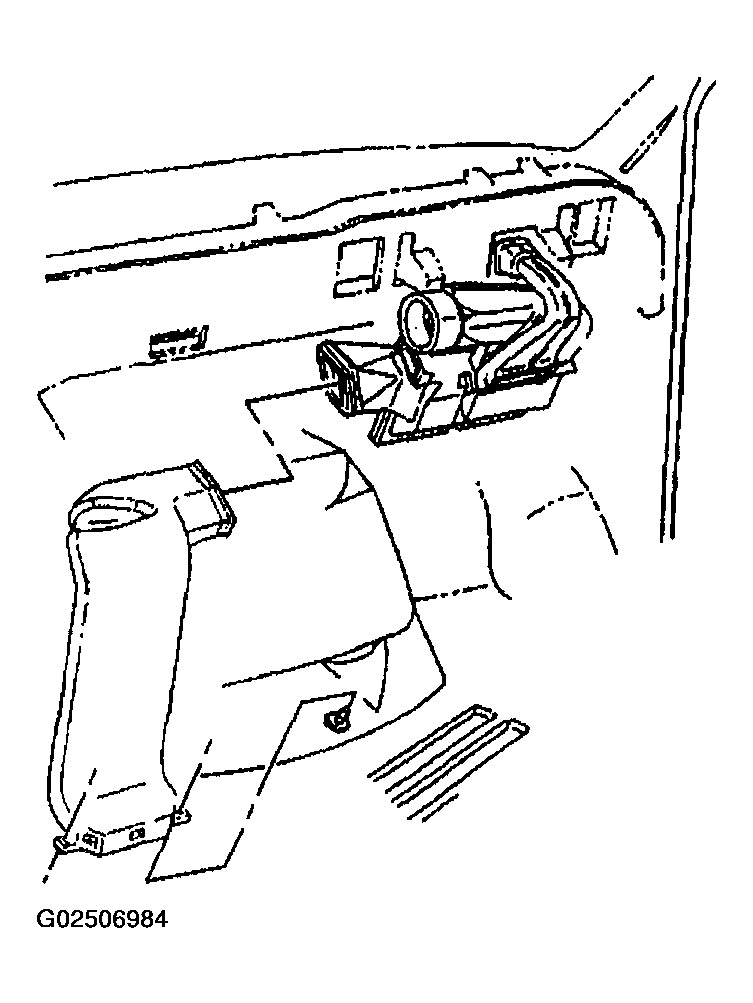

    Fig 1: Removing Floor Air Outlet Duct
    G02506984Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts from the brackets:
    1. 3.1. Loosen the bolt.
    2. 3.2. Rotate the bracket out of the way.
  4. Remove the latches.

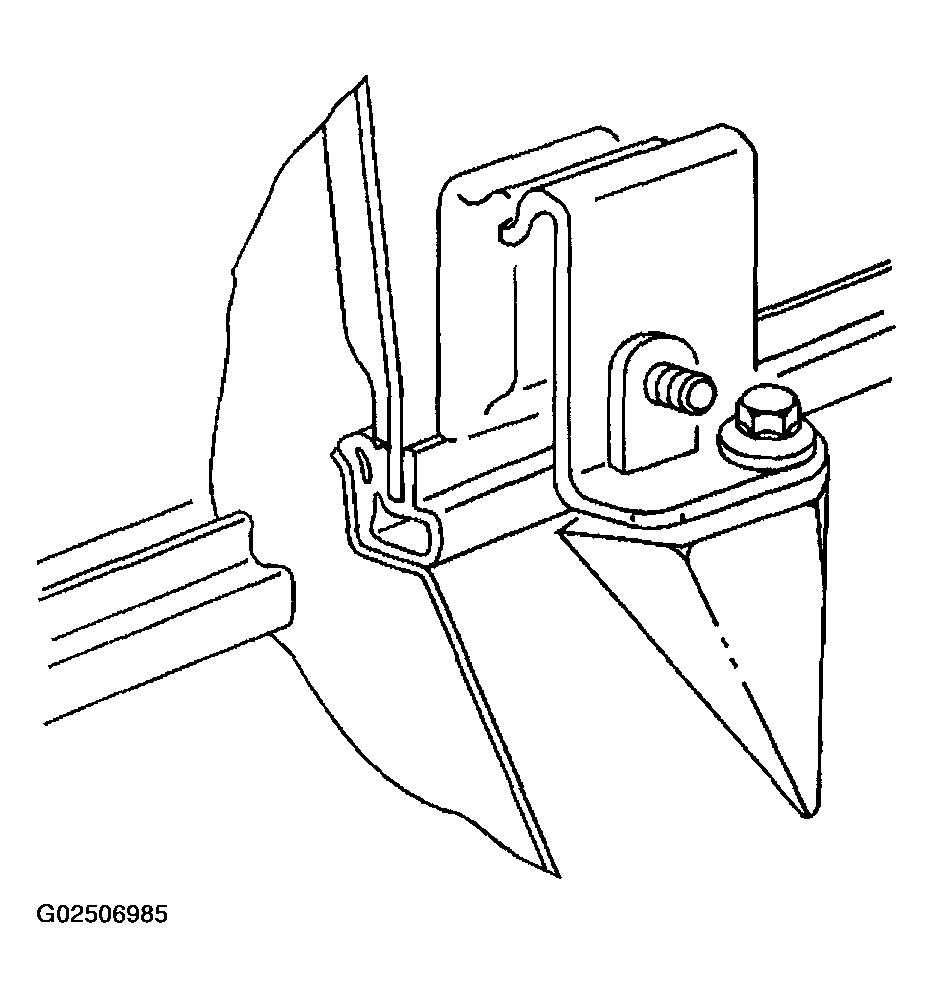

    Fig 2: Removing Latches
    G02506985Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws.
    Fig 3: Removing Screws
    G02506986Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine cover.

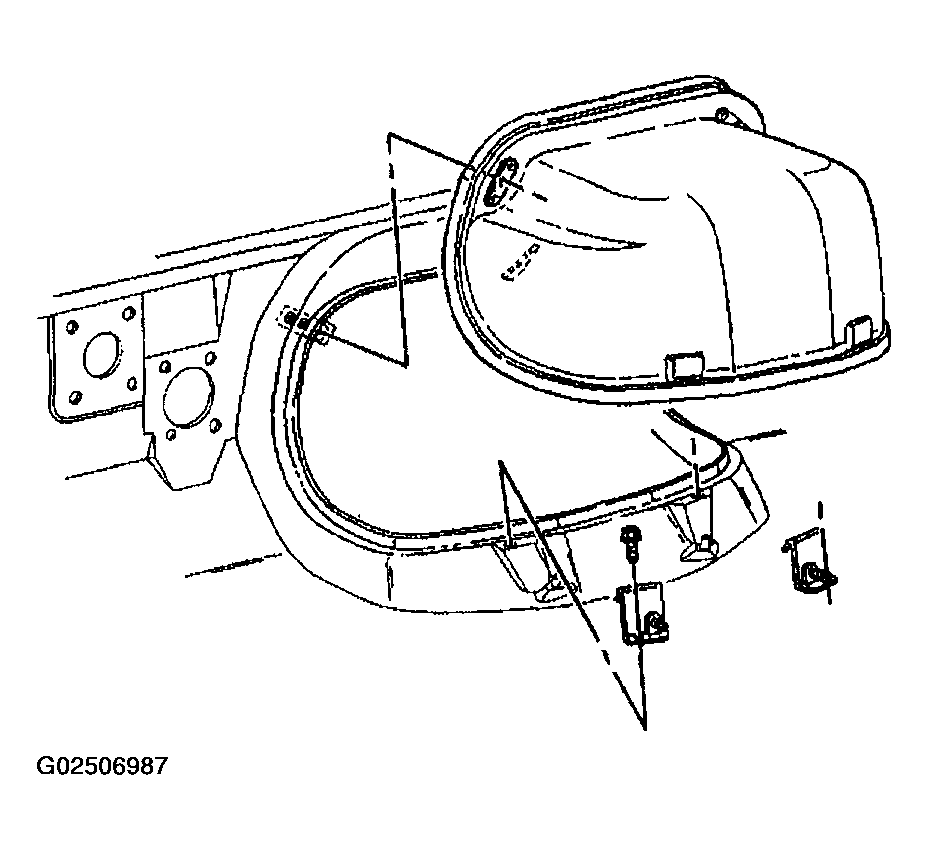

    Fig 4: Removing Engine Cover
    G02506987Courtesy of GENERAL MOTORS CORP.
