Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine cover guide assembly.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the bolts that retain the engine cover guide assembly to the vehicle.

    Tighten

    Tighten the bolts that retain the engine cover guide to 8.5 N.m (75 in. lb.).

  3. Install the engine cover. Refer to Engine Cover Replacement  .

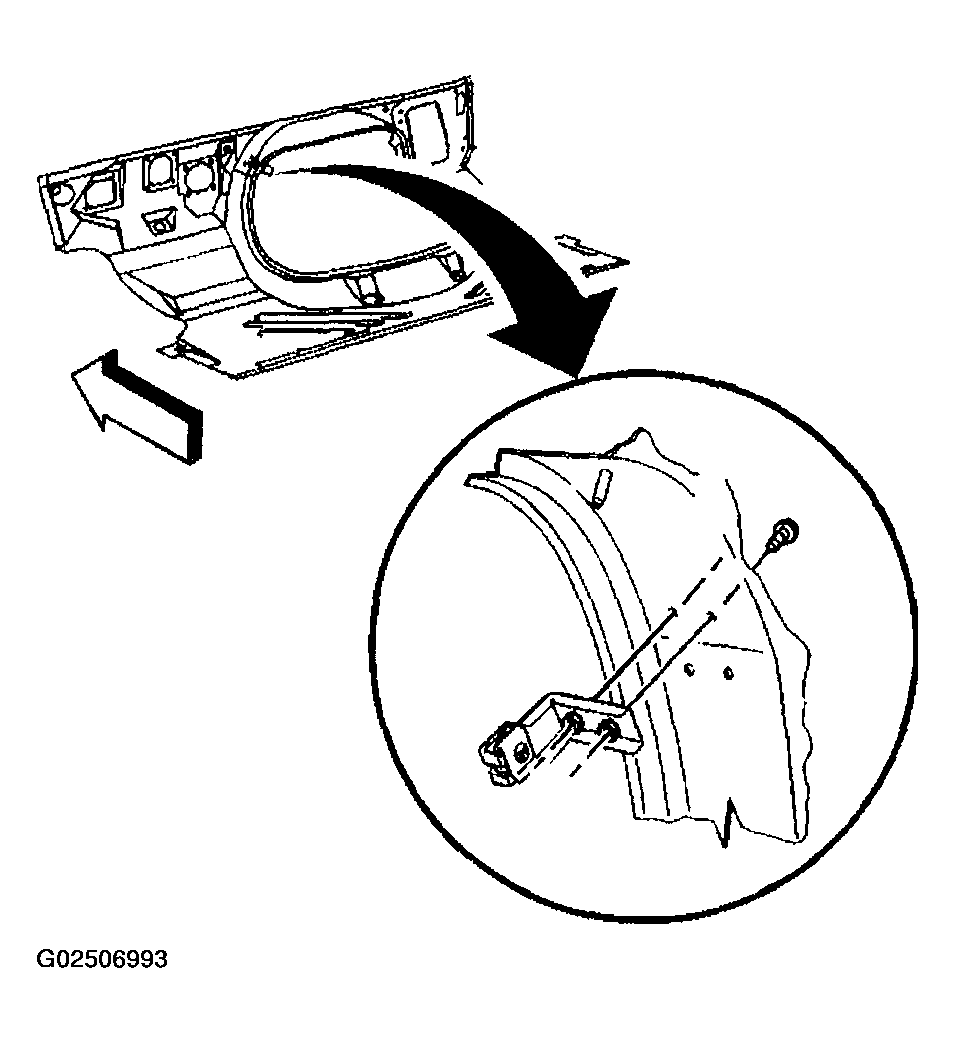

    Fig 1: Installing Engine Cover Guide
    G02506993Courtesy of GENERAL MOTORS CORP.
