Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.

Because the compass system is so complex and susceptible to outside influences, examine the system thoroughly before performing any repairs. Diagnose the system in an area free from potential interference, such as an open field. Recalibrate the system before performing any other repairs in order to verify the existence of a problem. Refer to INSTRUMENT PANEL, GAGES & CONSOLE .

Remove the retaining screws from the overhead console.
1. 1.1. Remove the dome lamp lens from the overhead console.
2. 1.2. Remove the front screws from the overhead console.
3. 1.3. Remove the rear screws from the overhead console.
Disconnect the electrical connectors.
Remove the overhead console as follows:
1. 3.1. Swing the overhead console downward.
2. 3.2. Pull the overhead console forward in order to clear the rear mounting tabs.

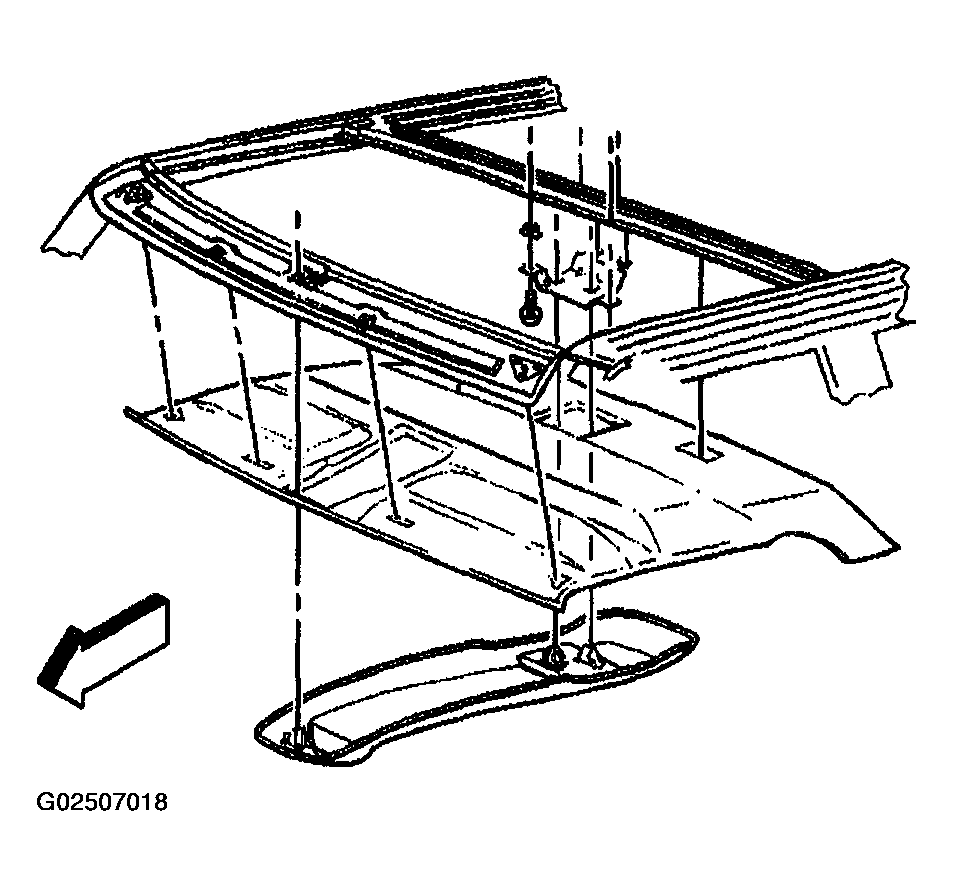

Fig 1: Removing Overhead Console Assembly
Courtesy of GENERAL MOTORS CORP.
