Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coat hook to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the screw through the coat hook and the panel.

    Tighten

    Tighten the screw to the coat hook to 2 N.m (18 in. lb.).

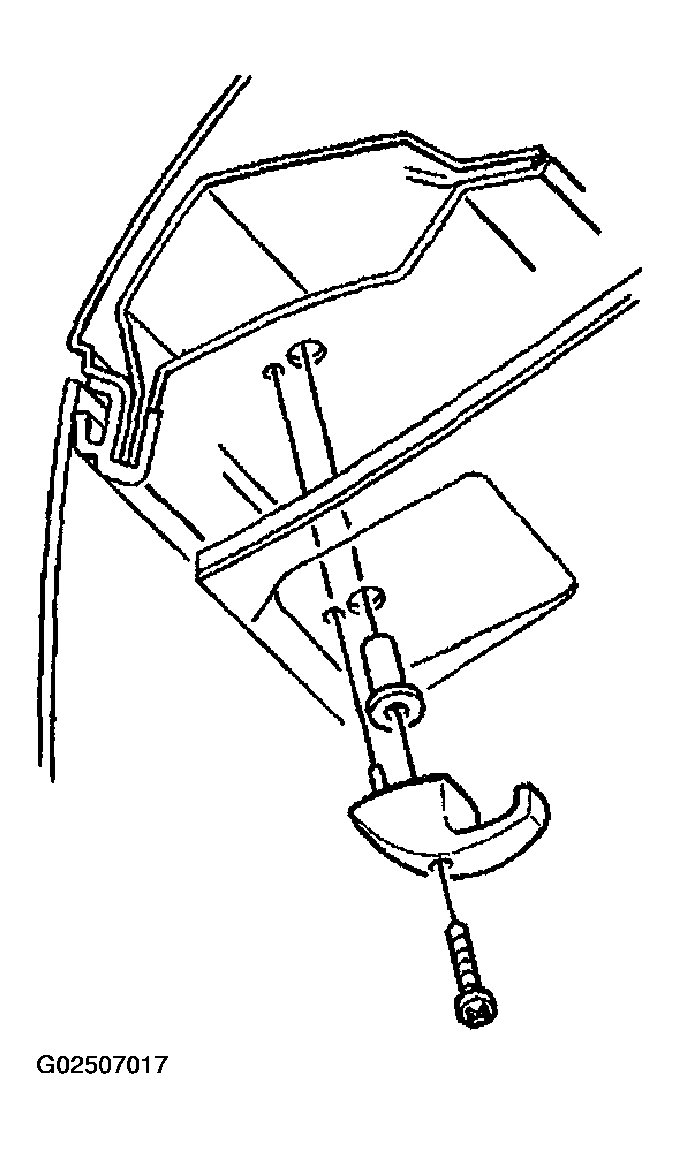

    Fig 1: Installing Coat Hook
    G02507017Courtesy of GENERAL MOTORS CORP.
