Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door(s).
  2. Remove the screws that retain the left front door step trim plate to the vehicle.

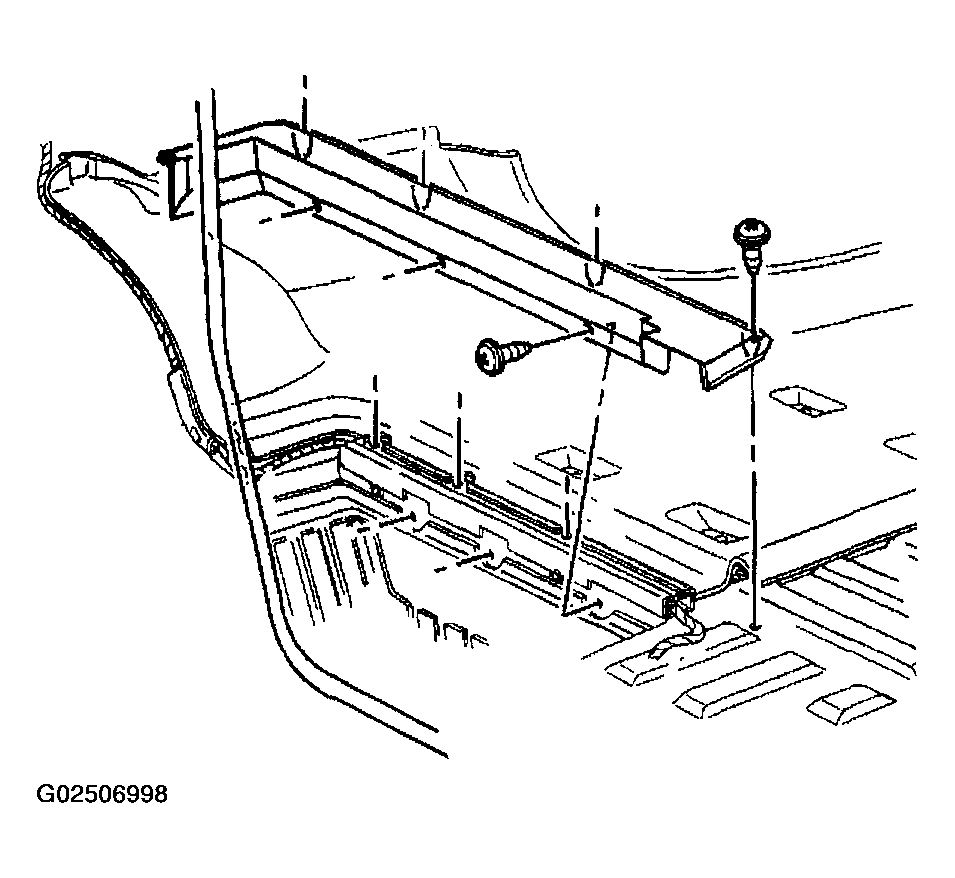

    Fig 1: Removing Left Front Door Step Trim Plate Retaining Screws
    G02506998Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws that retain the right front door step trim plate to the vehicle.

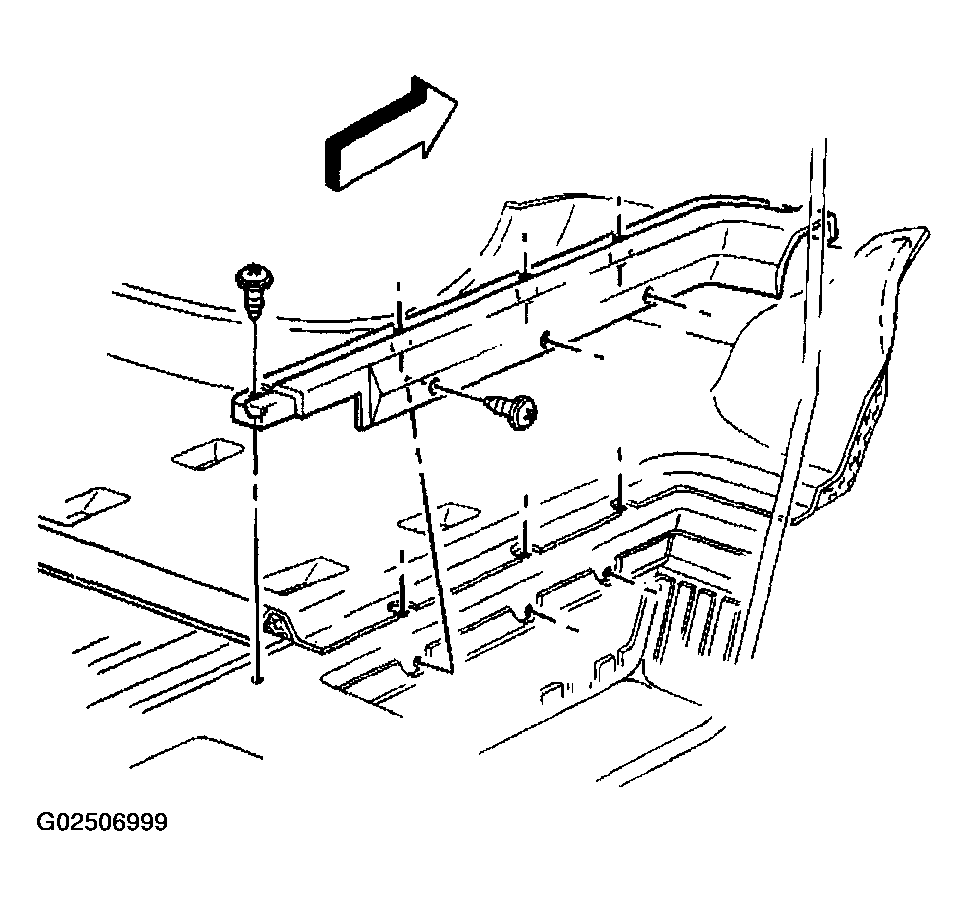

    Fig 2: Removing Right Front Door Step Trim Plate Retaining Screws
    G02506999Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws that retain the sliding door step trim plate to the vehicle.

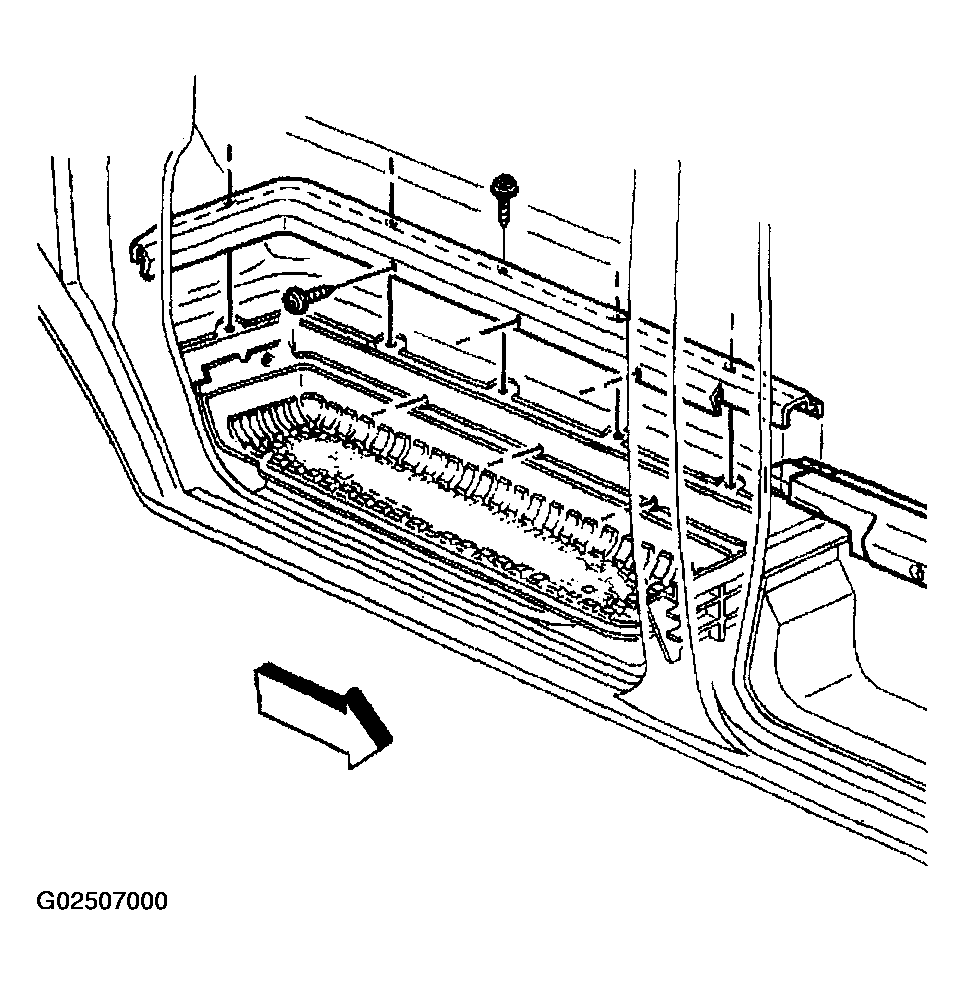

    Fig 3: Removing Sliding Door Step Trim Plate Retaining Screws
    G02507000Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws that retain the rear trim plate to the vehicle.
  6. Remove the trim plate from the vehicle.

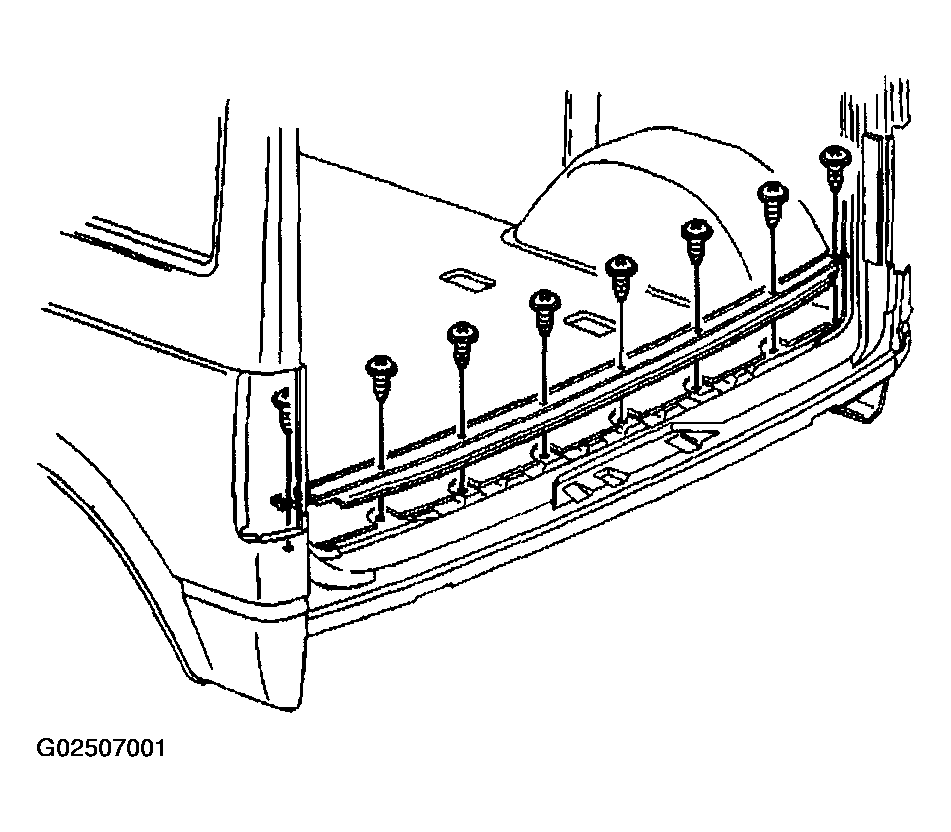

    Fig 4: Removing Rear Trim Plate Retaining Plate Screws & Plate
    G02507001Courtesy of GENERAL MOTORS CORP.
