Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the trim plate to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the screws that retain the left front door step trim plate to the vehicle.

    Tighten

    Tighten the screws that retain the left front door step trim plate to 2 N.m (18 in. lb.).

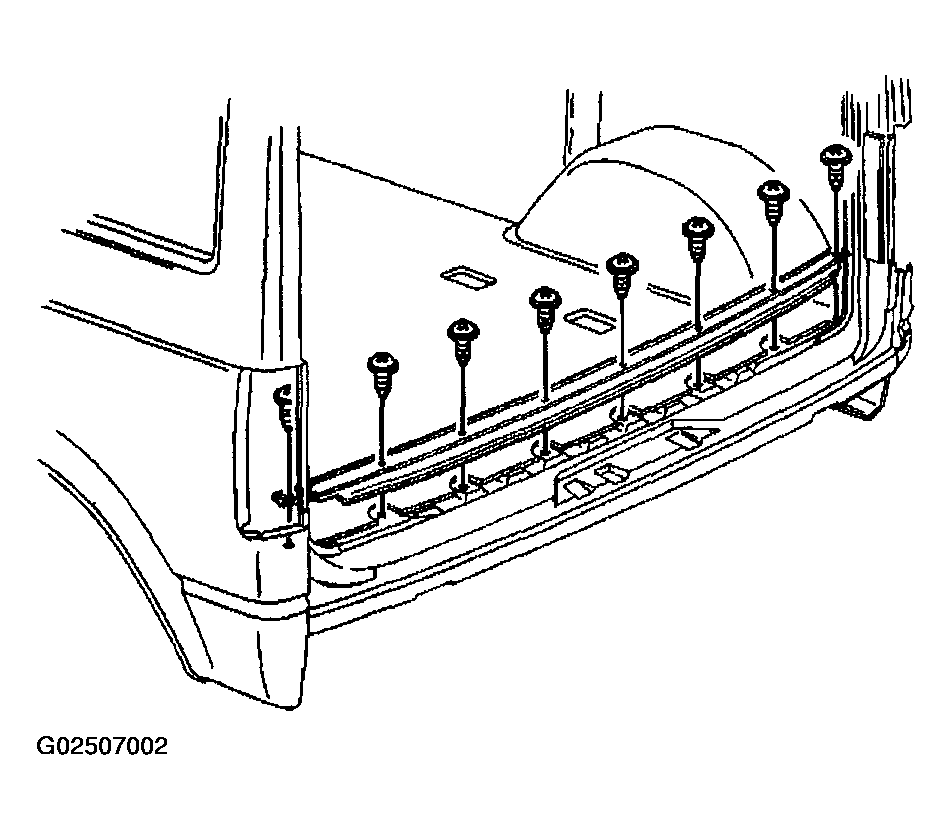

    Fig 1: Installing Rear Trim Plate & Retaining Screws
    G02507002Courtesy of GENERAL MOTORS CORP.
  3. Install the screws that retain the right front door step trim plate.

    Tighten

    Tighten the screws that retain the right front door step trim plate to 2 N.m (18 in. lb.).

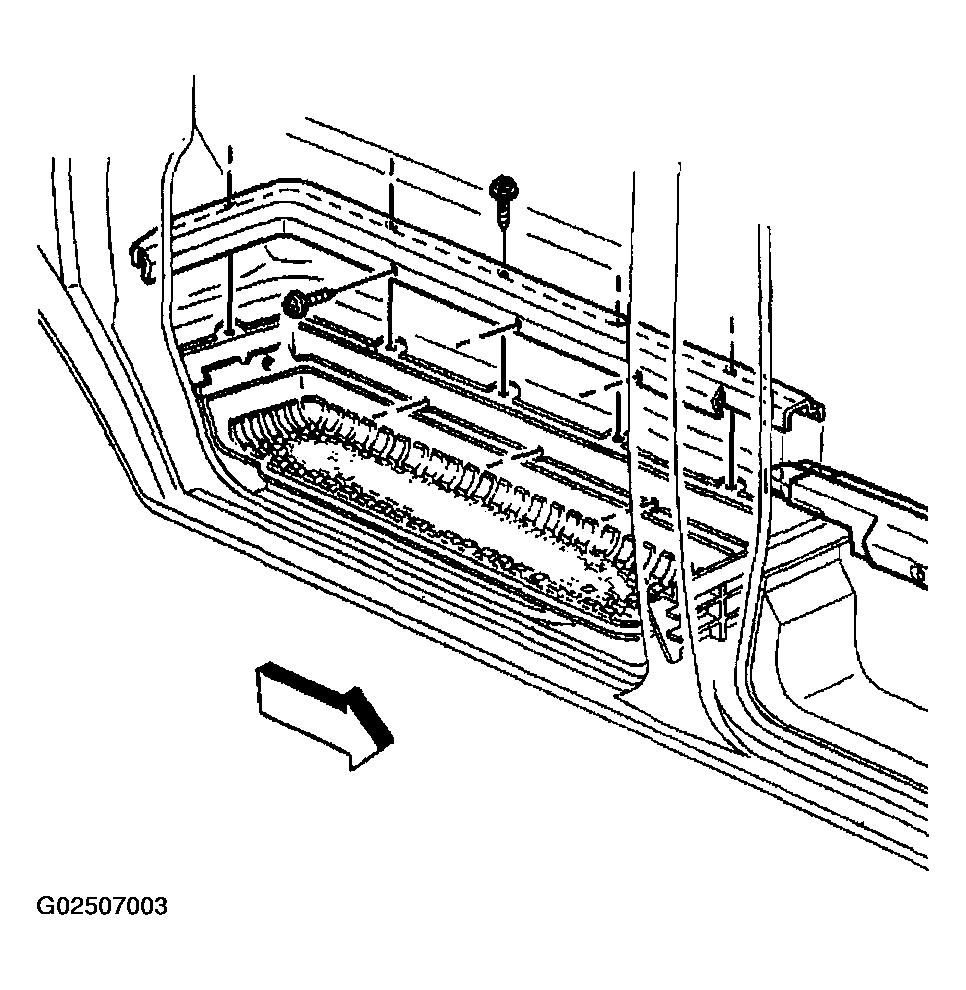

    Fig 2: Installing Right Front Door Step Trim Plate & Retaining Screws
    G02507003Courtesy of GENERAL MOTORS CORP.
  4. Install the screws that retain the sliding door step trim plate to the vehicle.

    Tighten

    Tighten the screws that retain the sliding door step trim plate to 2 N.m (18 in. lb.).

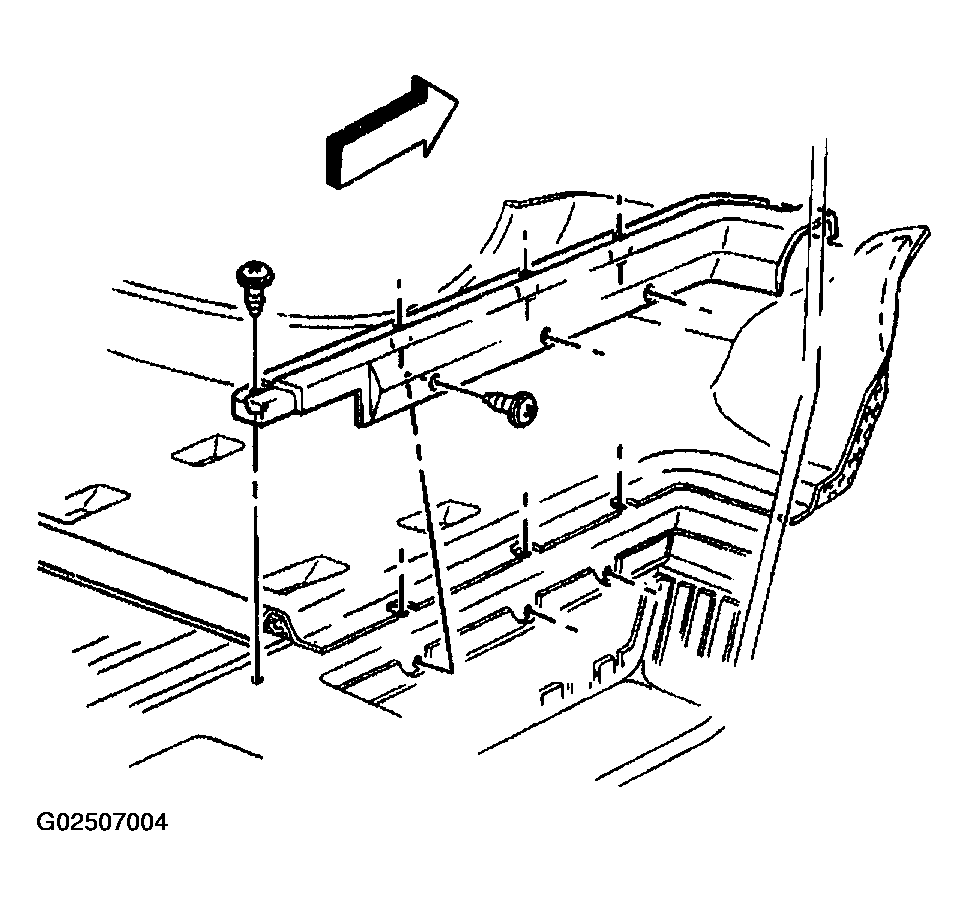

    Fig 3: Installing Sliding Door Step Trim Plate & Retaining Screws
    G02507004Courtesy of GENERAL MOTORS CORP.
  5. Install the screws that retain the rear trim plate to the vehicle.

    Tighten

    Tighten the screws that retain the rear trim plate to 2 N.m (18 in. lb.).

  6. Close the door(s).

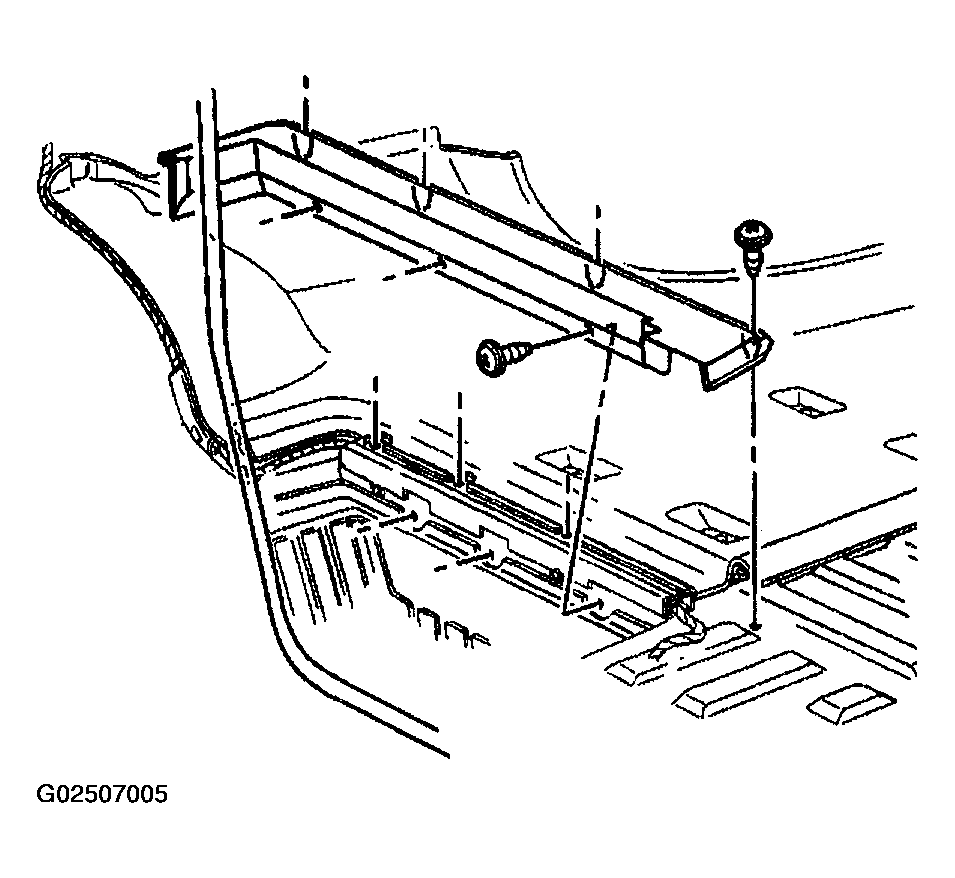

    Fig 4: Installing Rear Trim Plate & Screws
    G02507005Courtesy of GENERAL MOTORS CORP.
