Overhead Console Description

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, 2001 Chevrolet Astro, and 2000 GMC Safari. However, it is still accessible from the selected car via links, so may be relevant.

The overhead console is a convenience package that contains the following components:

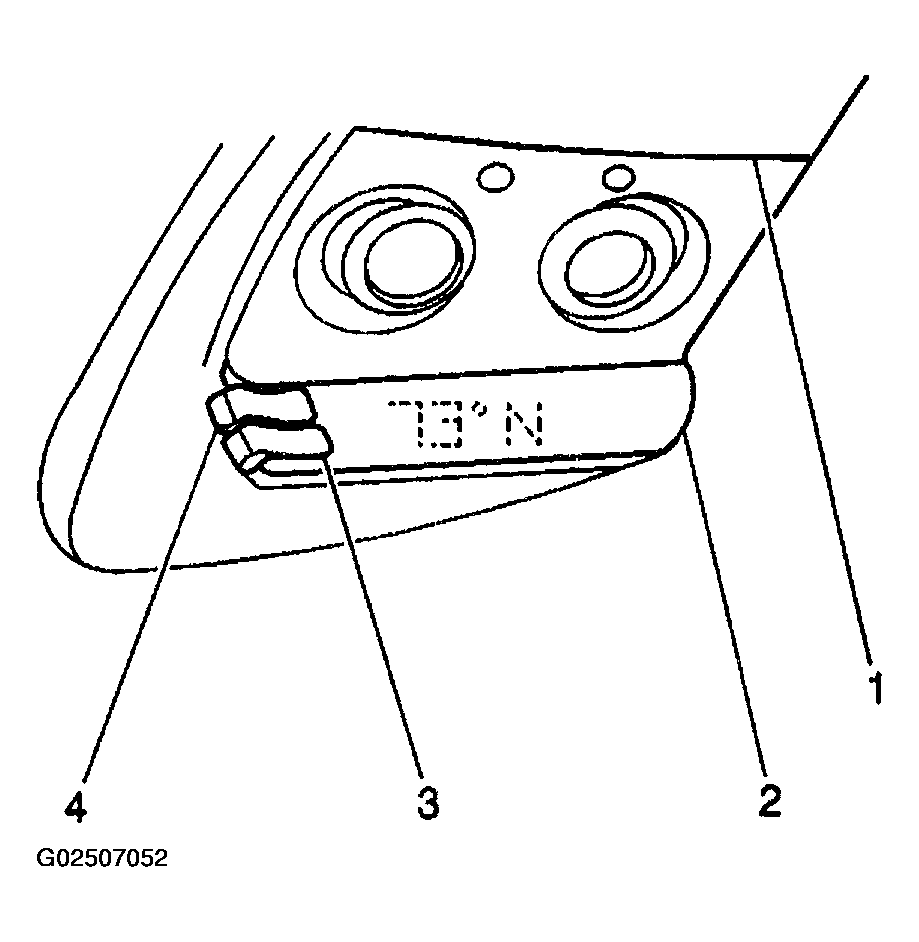

Fig 1: Identifying Partial Overhead Console Components

Courtesy of GENERAL MOTORS CORP.

A digital display (4) that provides:
- The outside temperature
- Eight primary compass readings indicating the direction the vehicle is travelling
Two switches (3) including:
- An ON/OFF switch for the temperature/compass display
- A U.S./METRIC switch that changes the temperature readout from degrees Fahrenheit (F) to degrees Celsius (C)

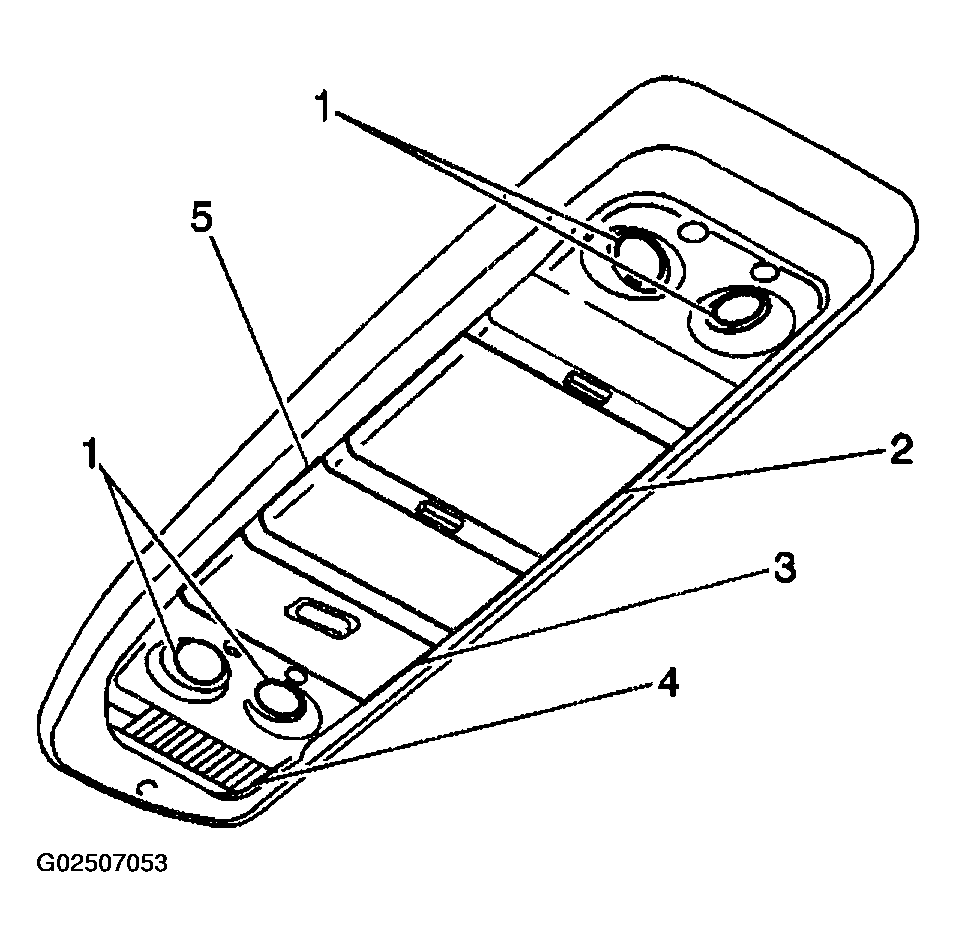

Fig 2: Identifying Overhead Console Switches & Lamps
Courtesy of GENERAL MOTORS CORP.
Two pivoting courtesy/map lamps (1)

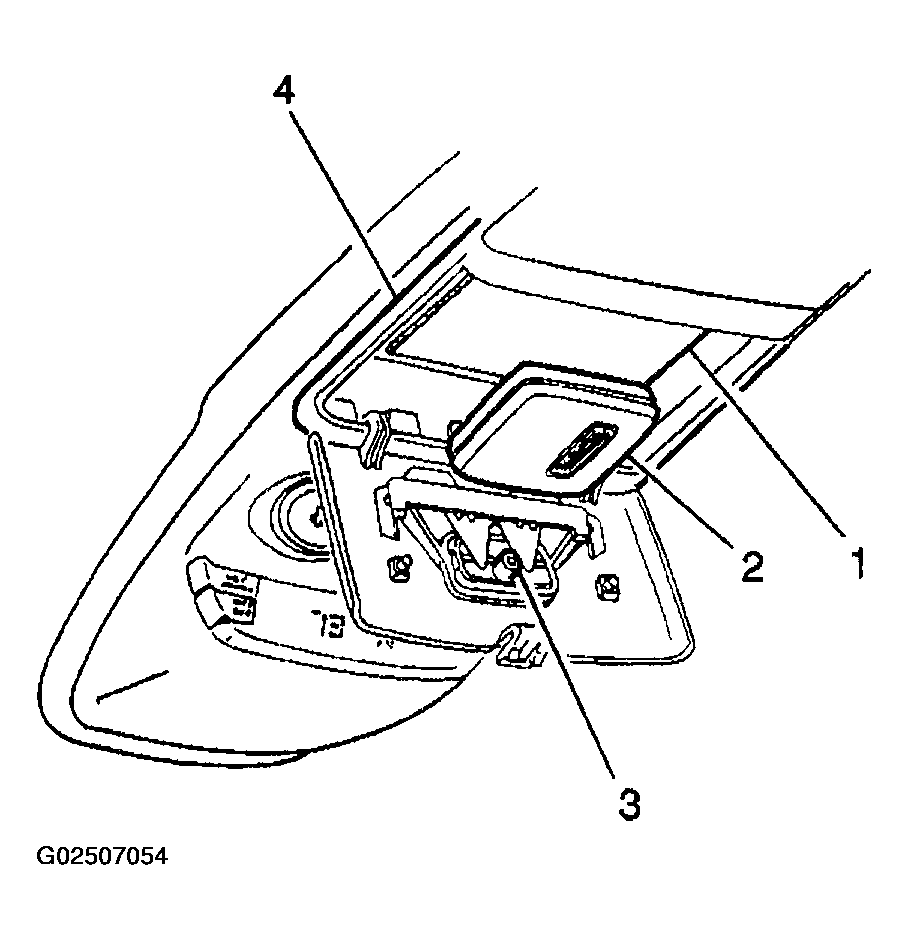

Fig 3: Identifying Garage Door Opener Transmitter & Further Storage Capabilities
Courtesy of GENERAL MOTORS CORP.
A compartment (4) for a garage door opener with a transmitter (2) that can be activated by pressing the button (3) on the compartment door.
A compartment for storing sunglasses
A compartment for storing compact discs or tapes

For more information on the overhead console, refer to Driver Information Center (DIC) Description and Operation on page 8-513 in Instrument Panel, Gages and Console.
