Dimensions - Frame (2500 Suburban/Yukon XL/Avalanche 2WD)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

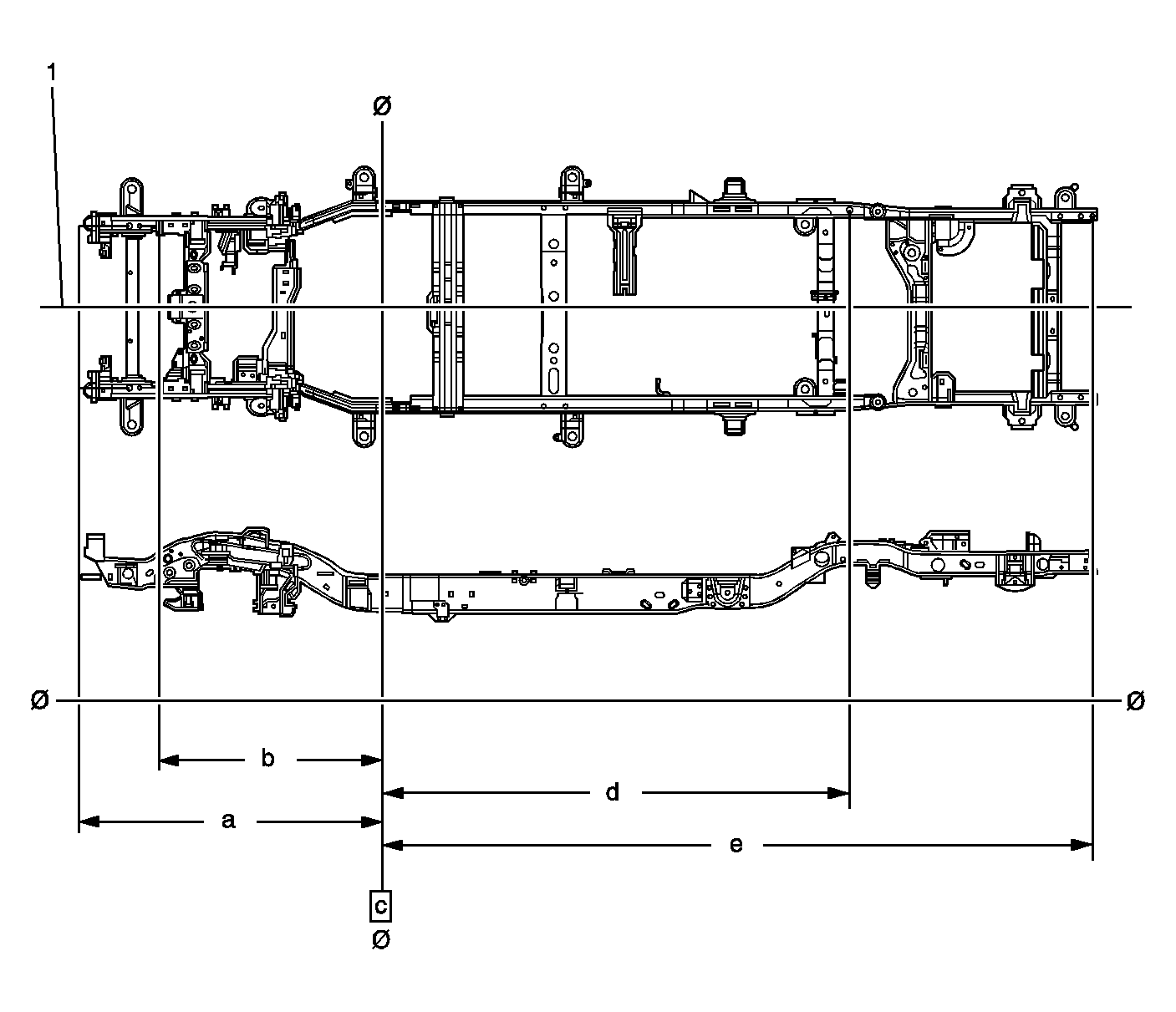

Fig 1: Dimensions - Frame (2500 Suburban/Yukon XL/Avalanche 2WD)

Courtesy of GENERAL MOTORS CORP.

Description	Location	Length	Width	Height
32 mm hole	a	1327 mm	411 mm	471 mm
23.5 x 13.5 mm slot	b	1276 mm	411 mm	466 mm
17.3 mm hole	c	0 mm	523 mm	370 mm
28 x 19 mm slot	d	2457 mm	523 mm	610 mm
19.5 mm hole	e	3733 mm	500 mm	574 mm
All dimensions are measured in millimeters, from a zero line, center line, and a common datum. All dimensions are symmetrical, unless otherwise specified.
