Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 38778 in order to remove the retainers.
  2. Use 3M Release Agent in order to break the weatherstrip adhesive bond.
  3. Use the J 38778 in order to remove the plastic retainers.
  4. Remove the left door weatherstrip.
  5. Remove the right door weatherstrip.

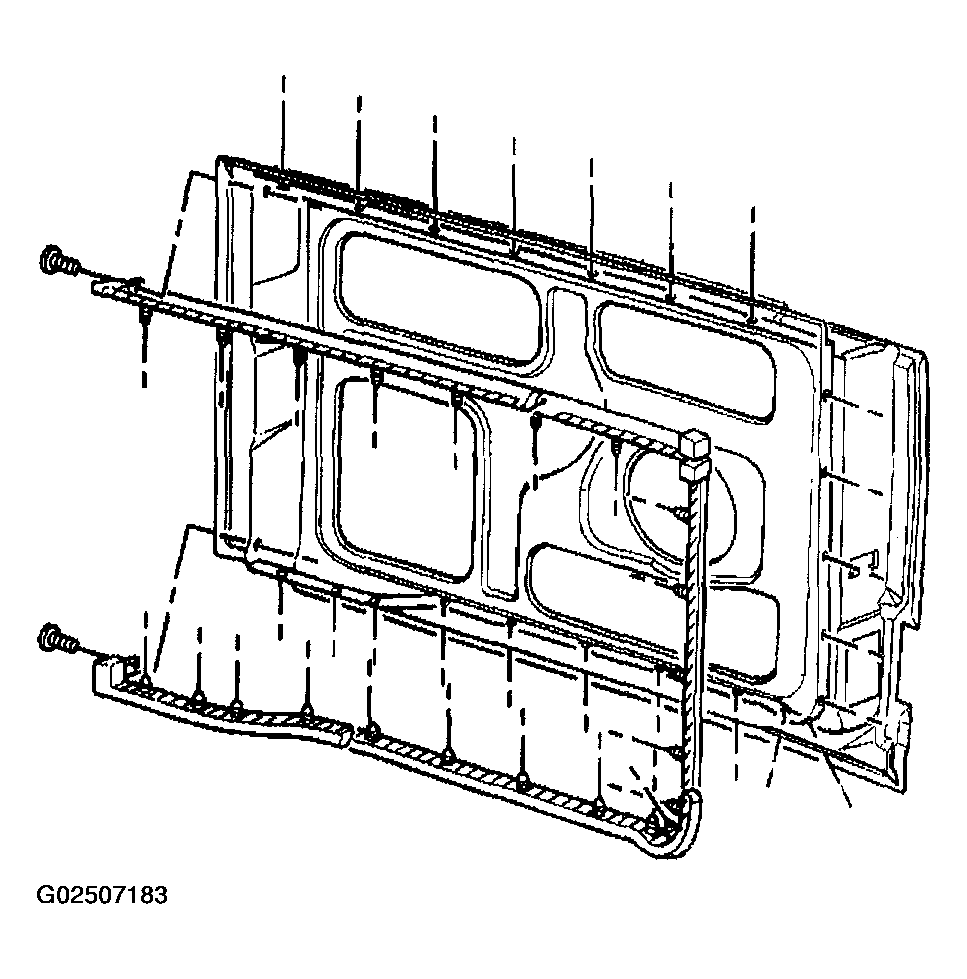

    6. Fig 1: Removing & Installing Left Rear Door (E54) Weatherstrip
    G02507183Courtesy of GENERAL MOTORS CORP.

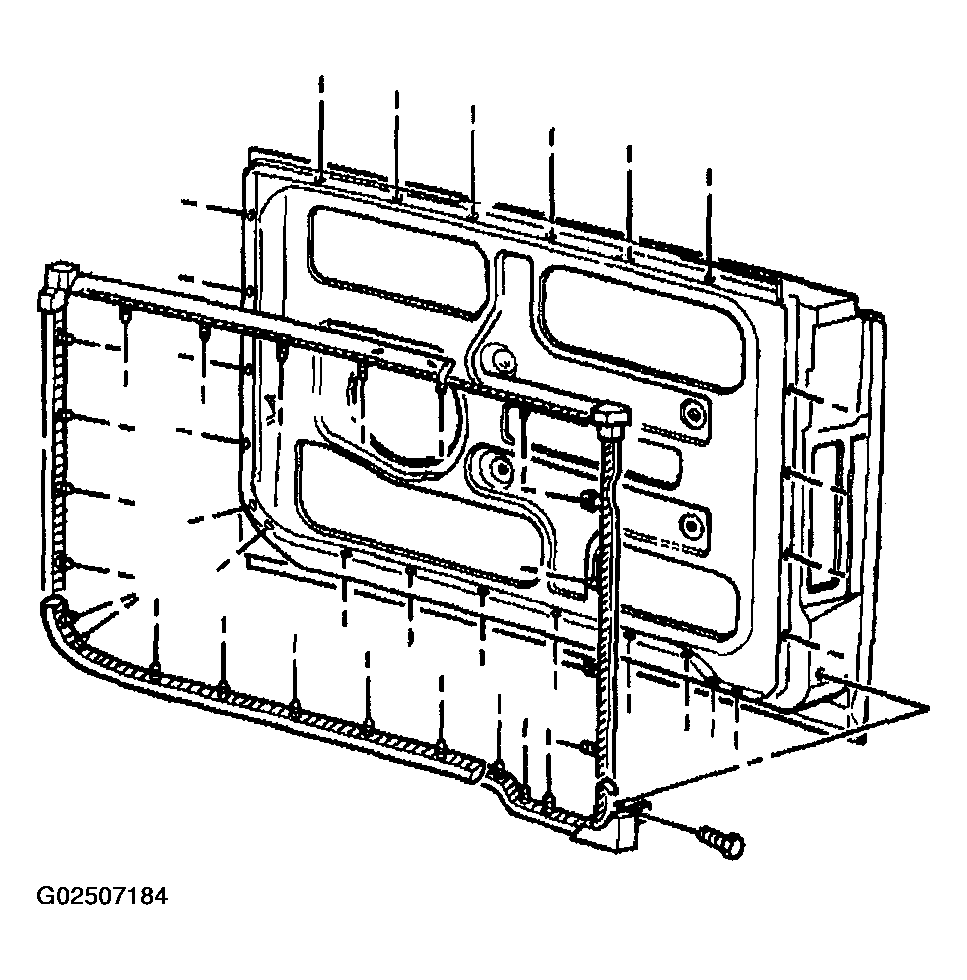

    Fig 2: Removing & Installing Right Rear Door (E54) Weatherstrip
    G02507184Courtesy of GENERAL MOTORS CORP.
