Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use 3M Weatherstrip adhesive or an equivalent in order to install the right door weatherstrip.
  2. Use 3M Weatherstrip adhesive or an equivalent in order to install the left door weatherstrip.
  3. Install the plastic retainers into place. Push the retainers into place until the retainers are fully seated.

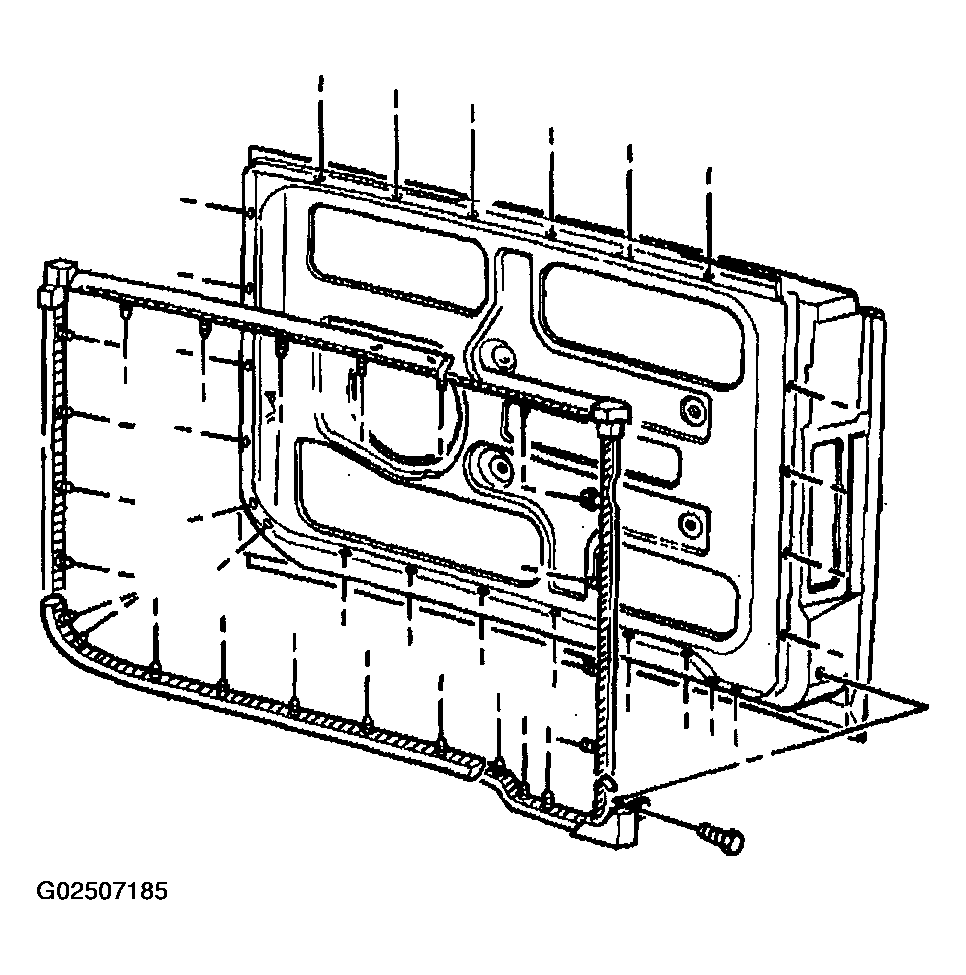

    4. Fig 1: Removing & Installing Right Rear Door (E54) Weatherstrip
    G02507185Courtesy of GENERAL MOTORS CORP.

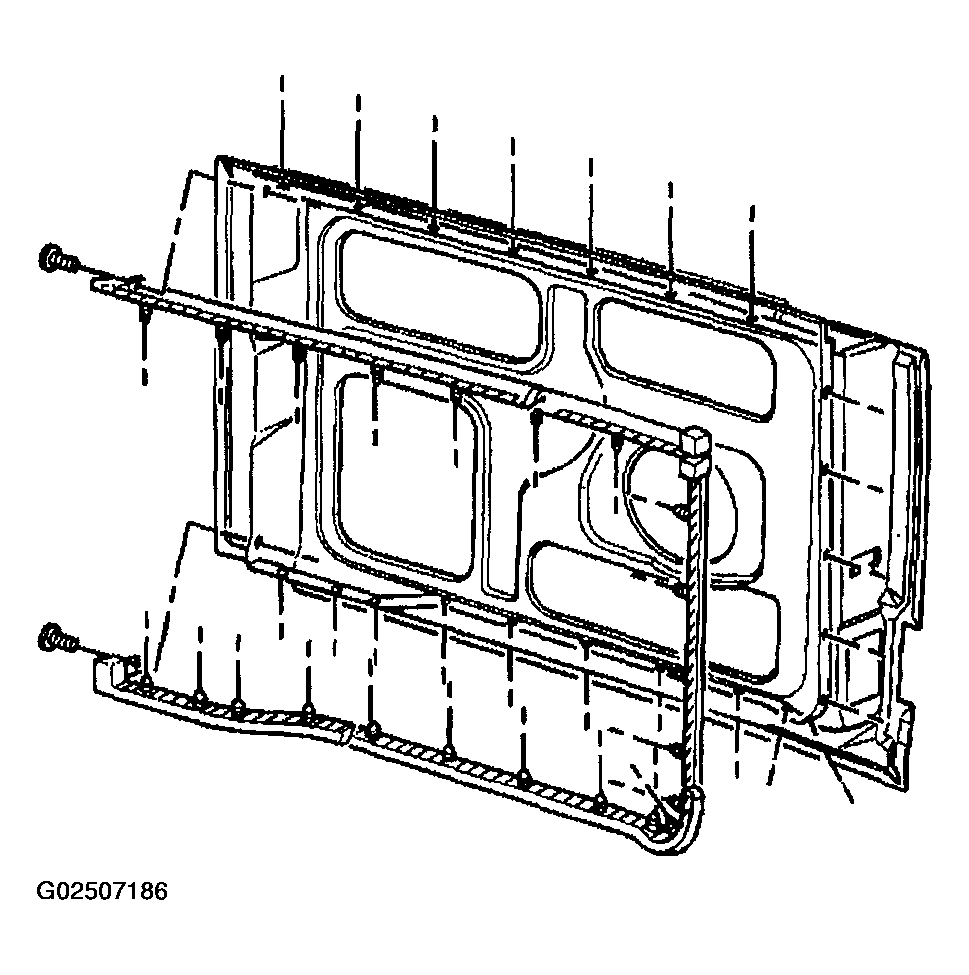

    Fig 2: Removing & Installing Left Rear Door (E54) Weatherstrip
    G02507186Courtesy of GENERAL MOTORS CORP.
