Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the J 38778 in order to remove the retainers (2).
  2. Use the 3M Release Agent or an equivalent in order to break the weatherstrip adhesive bond.
  3. Use the J 38778 in order to remove the plastic weather retainers (3).
  4. Remove the weatherstrip (1) from the left door.
  5. Remove the weatherstrip from the right door.

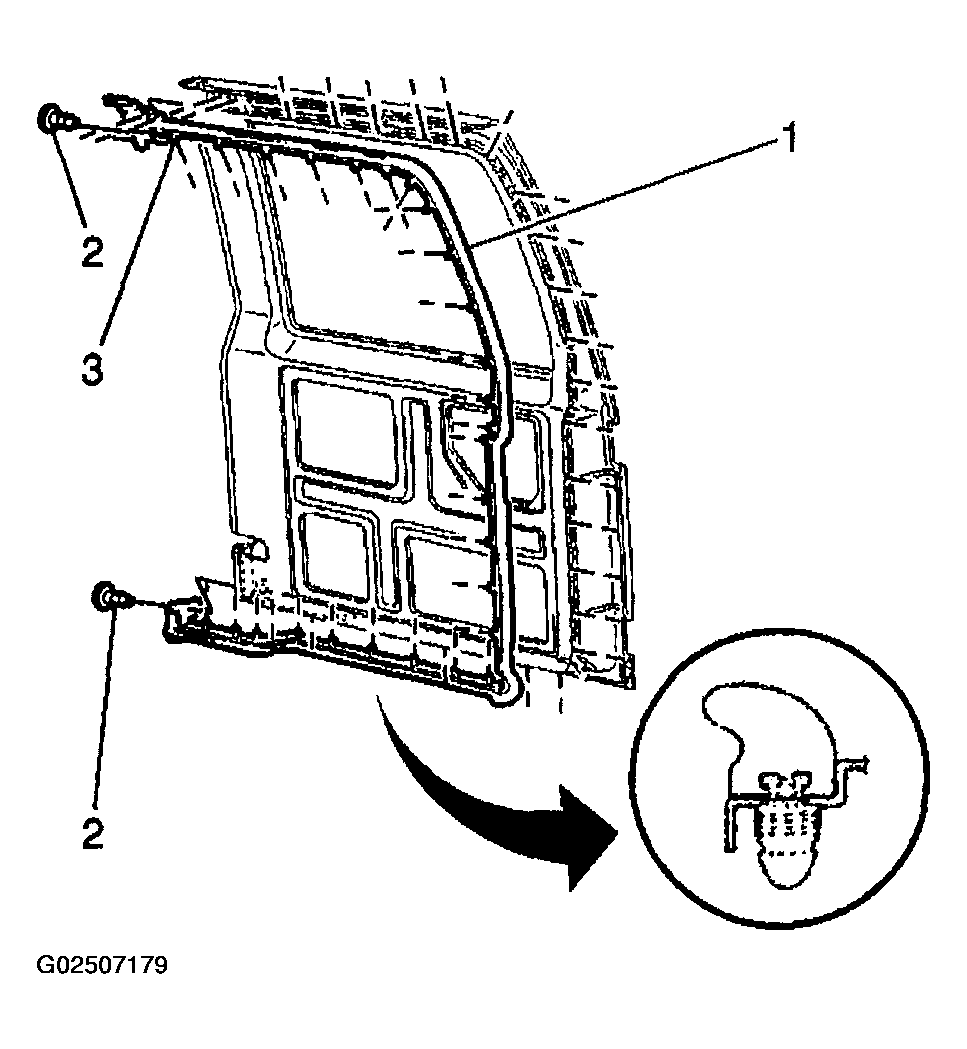

    6. Fig 1: Removing & Installing Left Rear Cargo Door Weatherstrip
    G02507179Courtesy of GENERAL MOTORS CORP.

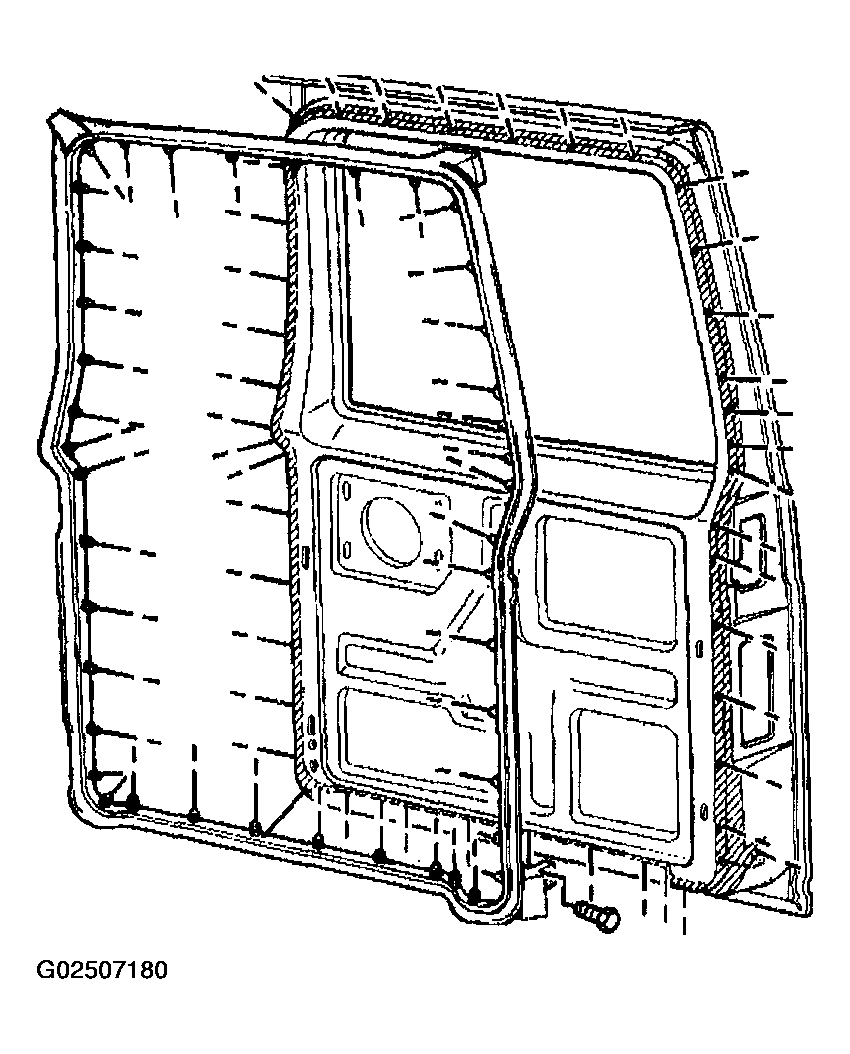

    Fig 2: Removing & Installing Right Rear Cargo Door Weatherstrip
    G02507180Courtesy of GENERAL MOTORS CORP.
