Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use 3M Weatherstrip adhesive or an equivalent in order to install the weatherstrip to the right door.
  2. Use 3M Weatherstrip adhesive or an equivalent in order to install the weatherstrip (3) to the left door.
  3. Install the plastic retainers (2) into place. Push the retainers into place until the retainers are fully seated.

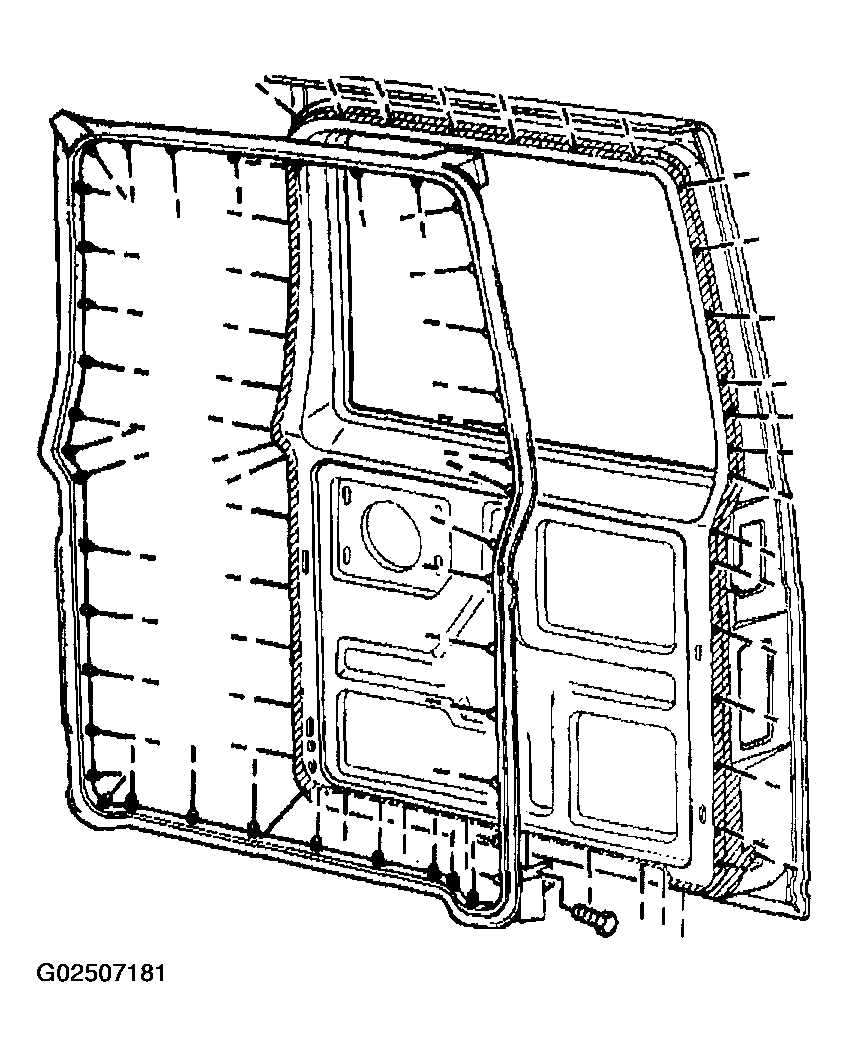

    4. Fig 1: Removing & Installing Right Rear Cargo Door Weatherstrip
    G02507181Courtesy of GENERAL MOTORS CORP.

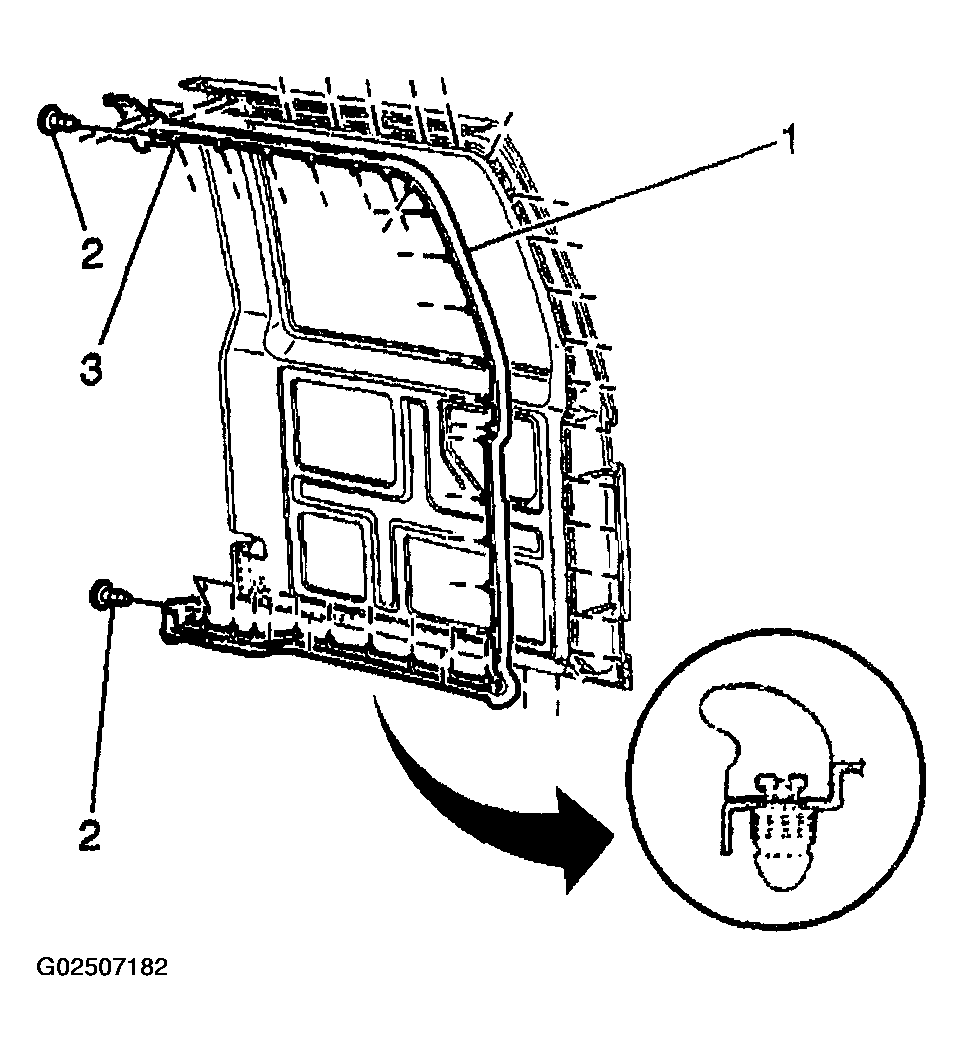

    Fig 2: Removing & Installing Left Rear Cargo Door Weatherstrip
    G02507182Courtesy of GENERAL MOTORS CORP.
