Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove all of the interior trim in order to access the weatherstrip.
  2. Pull the weatherstrip from the pinch-weld flange. Start at the upper right corner.

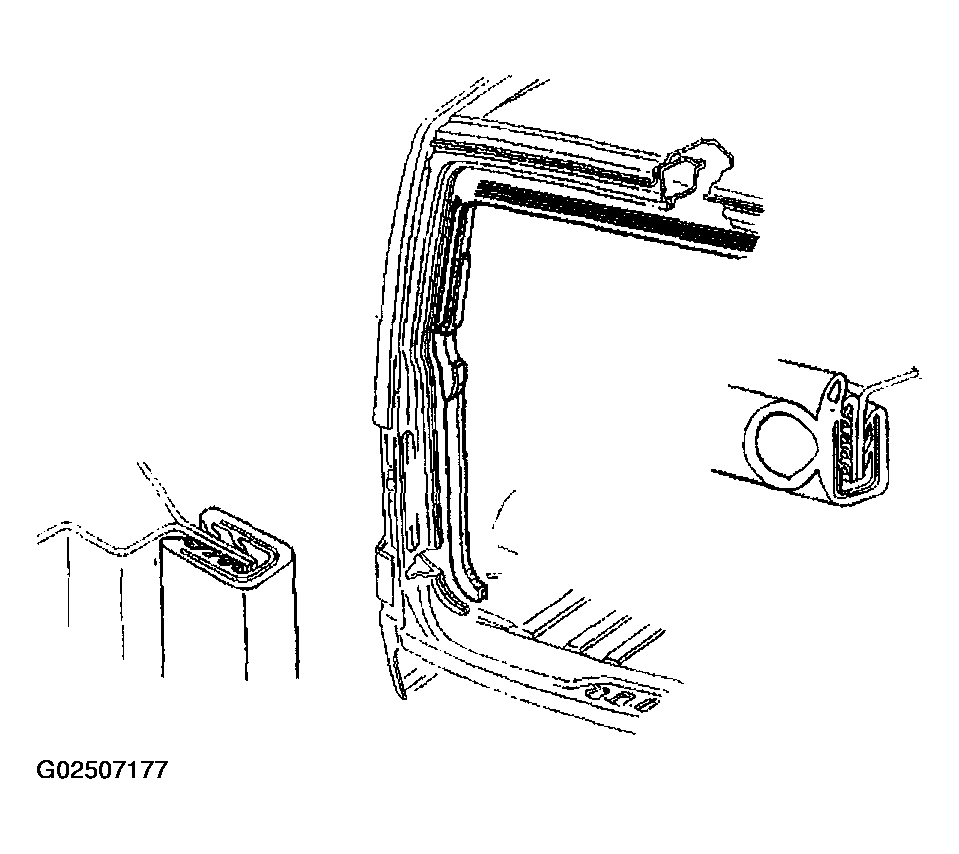

  3. Fig 1: Removing & Installing Lift Gate Weatherstrip
    G02507177Courtesy of GENERAL MOTORS CORP.
