Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT -- DOOR .
  2. Peel the water deflector from the door and remove from the door.

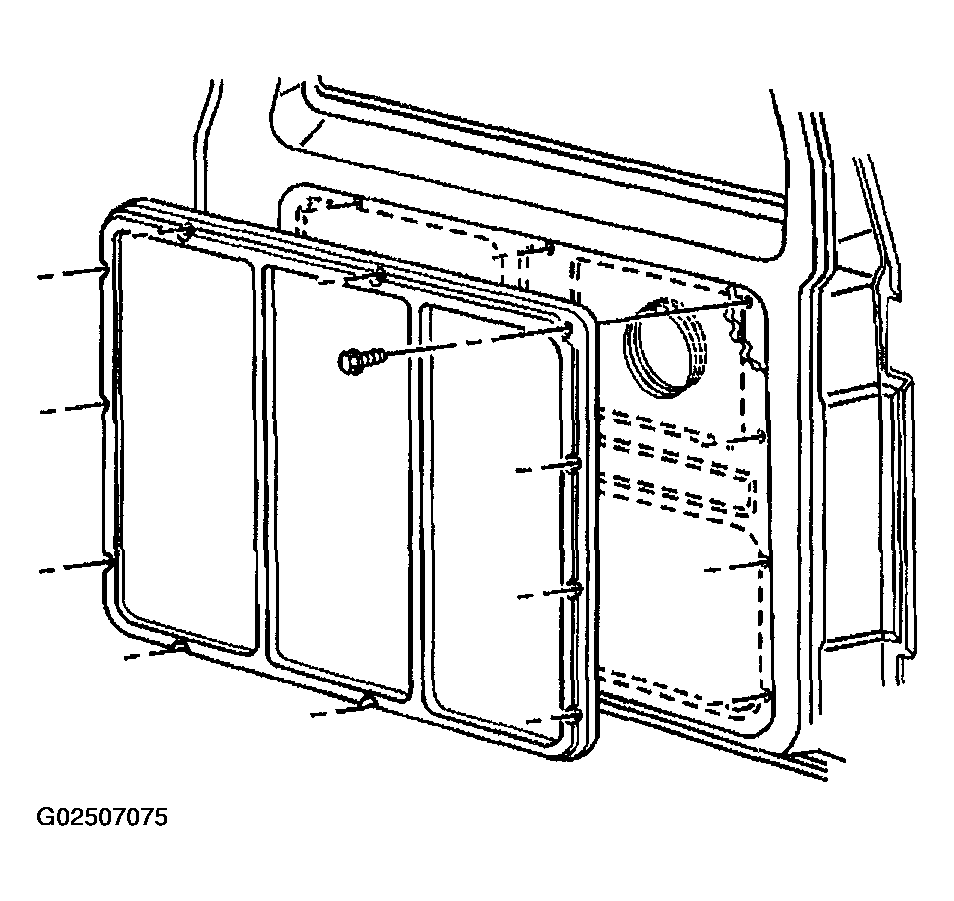

    3. Fig 1: Removing & Installing Trim Panel
    G02507075Courtesy of GENERAL MOTORS CORP.

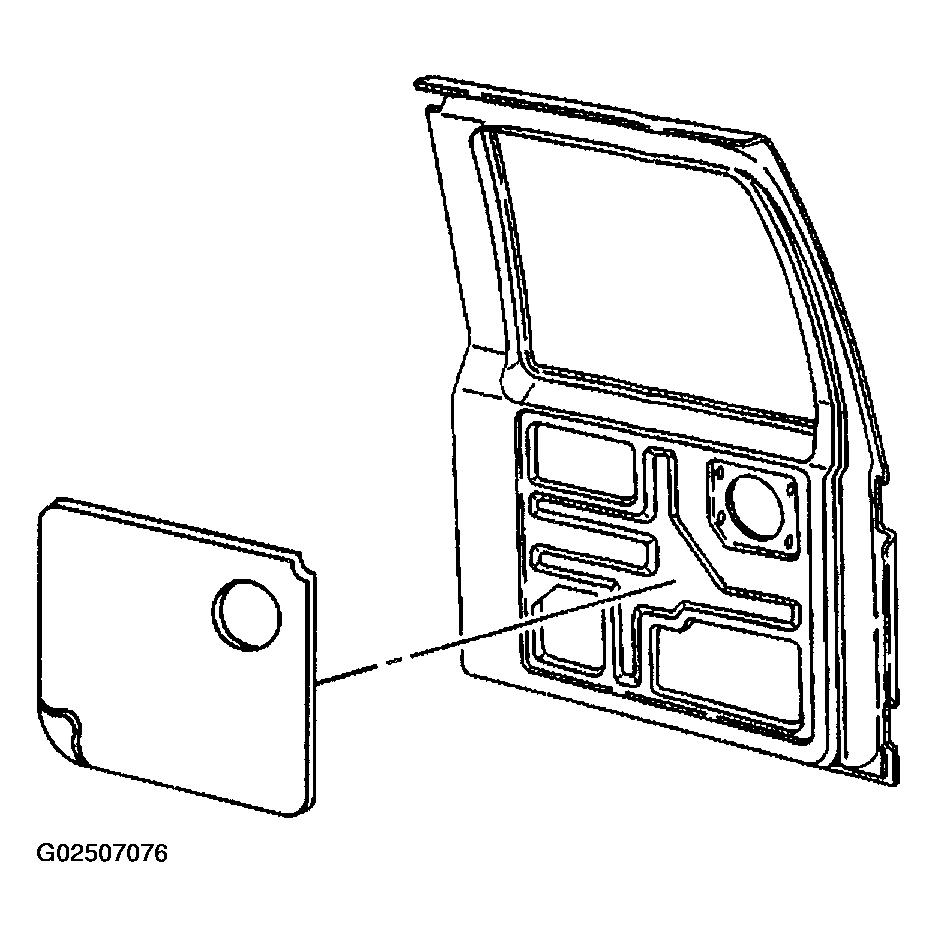

    Fig 2: Removing & Installing Water Deflector
    G02507076Courtesy of GENERAL MOTORS CORP.
