Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water deflector.
  2. Install the trim panel. Refer to TRIM PANEL REPLACEMENT -- DOOR .

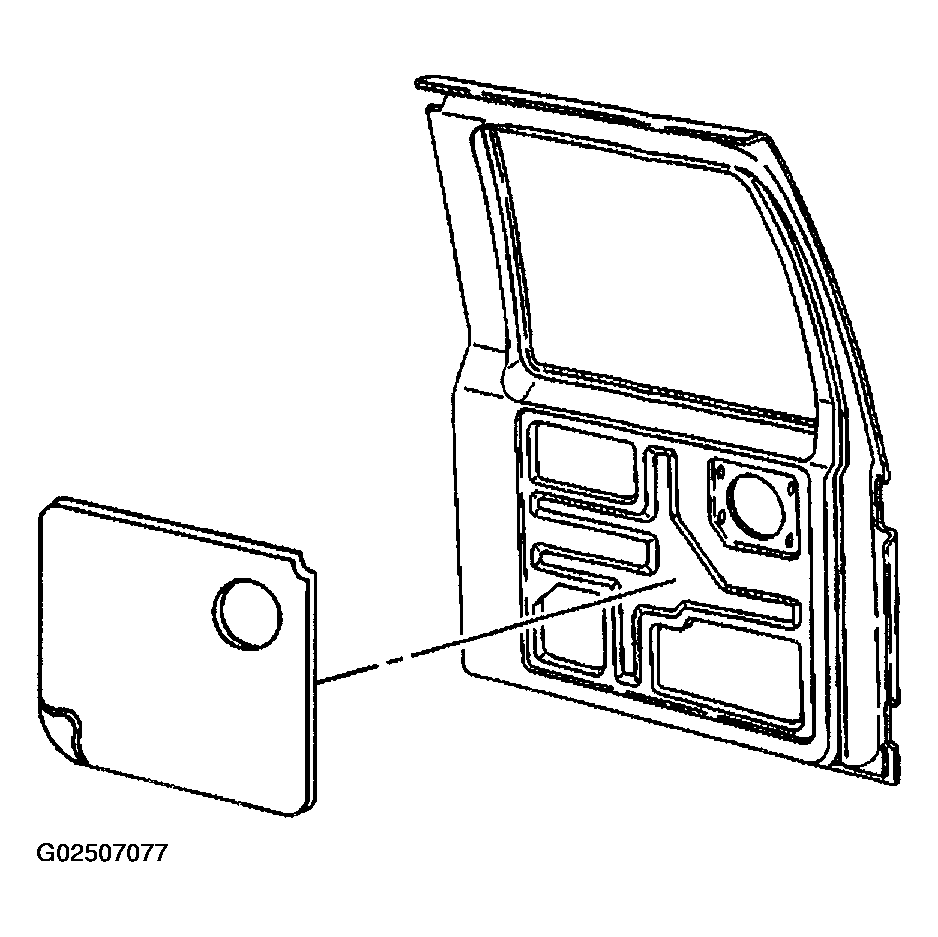

    3. Fig 1: Removing & Installing Water Deflector
    G02507077Courtesy of GENERAL MOTORS CORP.

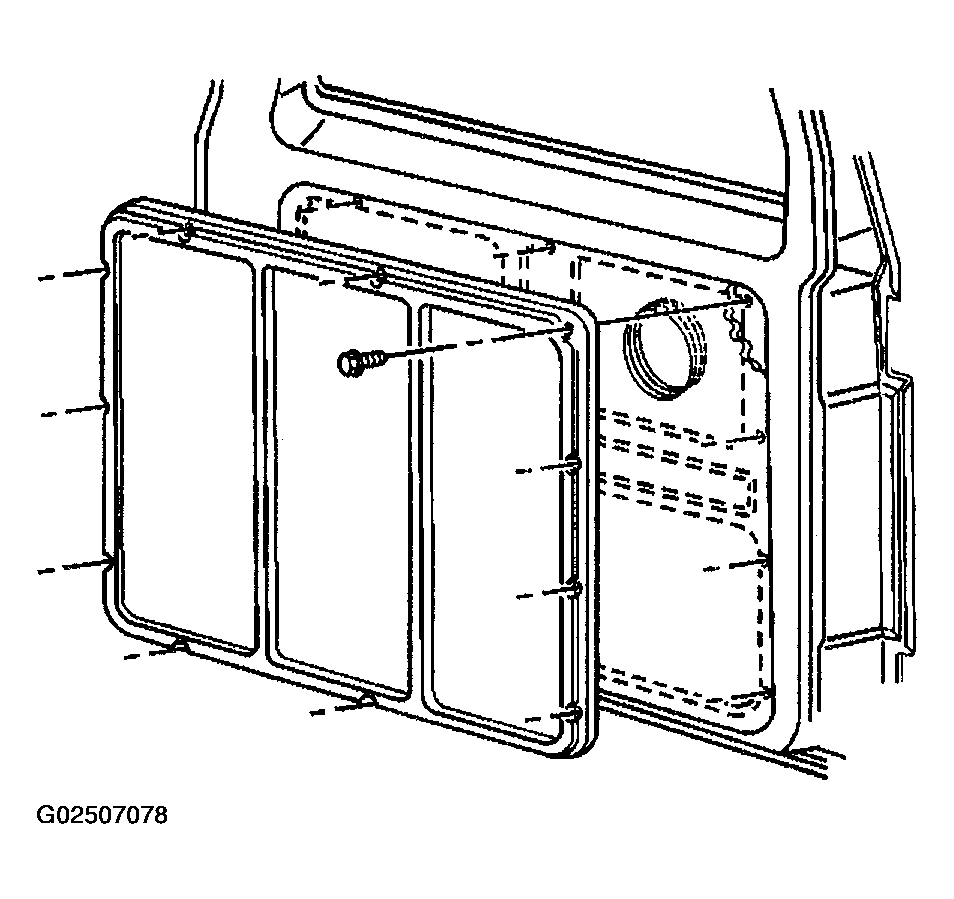

    Fig 2: Removing & Installing Trim Panel
    G02507078Courtesy of GENERAL MOTORS CORP.
