Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lace.
  2. Use J 38778 in order to remove the trim panel.

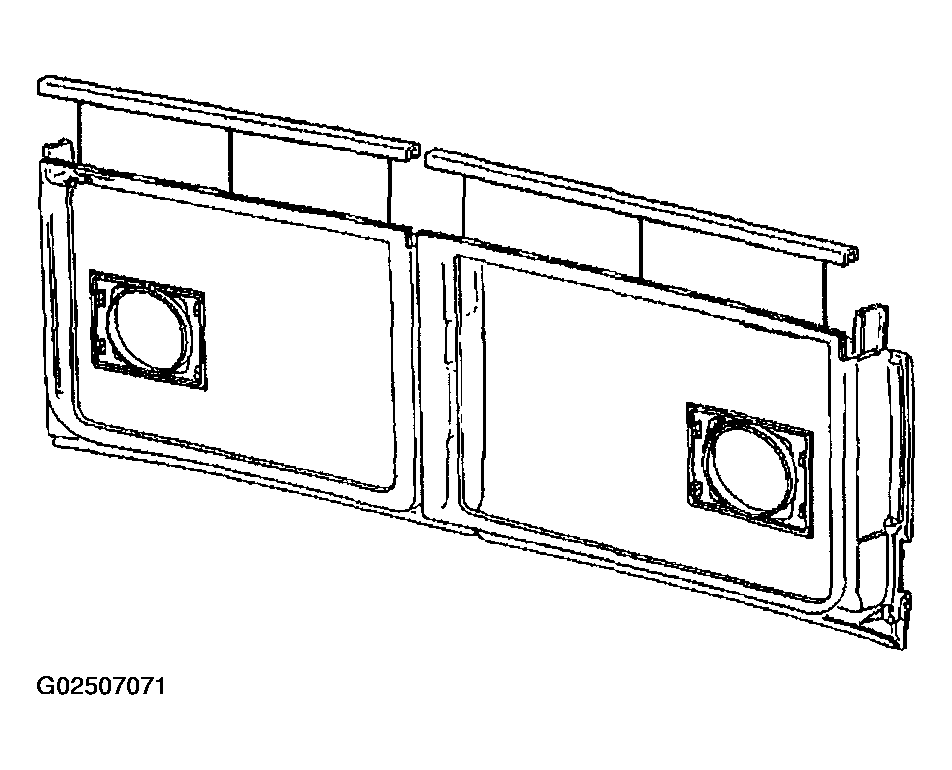

  3. Fig 1: Removing & Installing Rear Door (E54) Trim Panel Lace
    G02507071Courtesy of GENERAL MOTORS CORP.

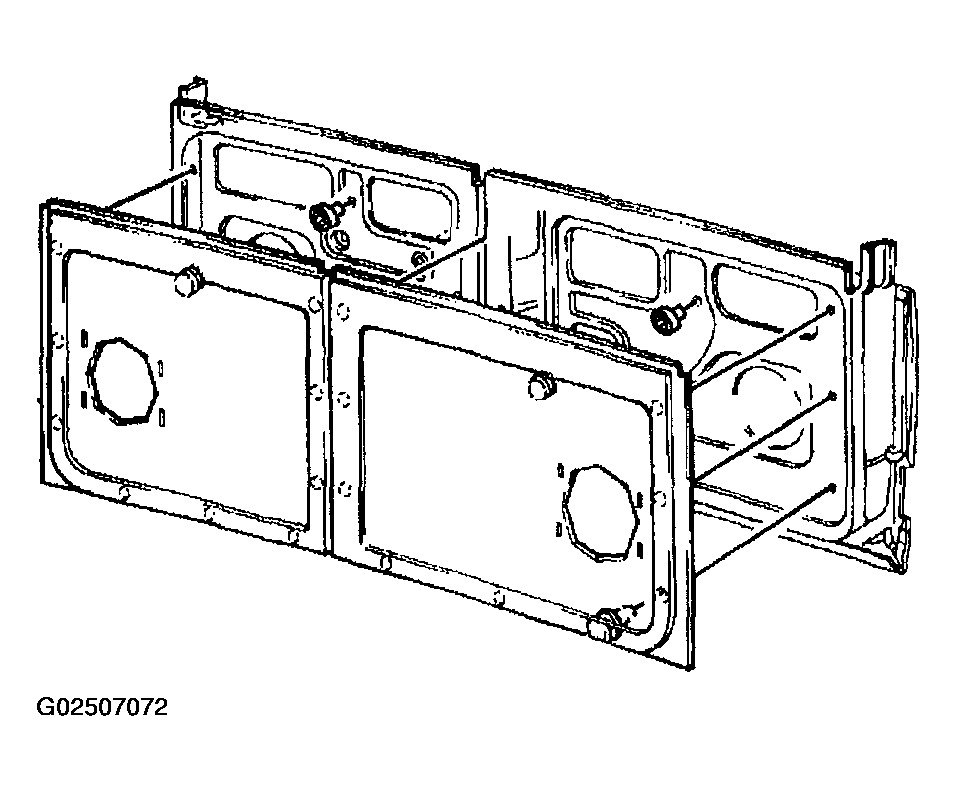

    Fig 2: Removing & Installing Rear Door (E54) Trim Panel
    G02507072Courtesy of GENERAL MOTORS CORP.
