Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the trim panel.
  2. Install the trim panel screws. Tighten:  Tighten the trim panel screws to 2 N.m (18 lb in).
  3. Install the window garnish molding. Refer to Window Garnish Molding Replacement  .

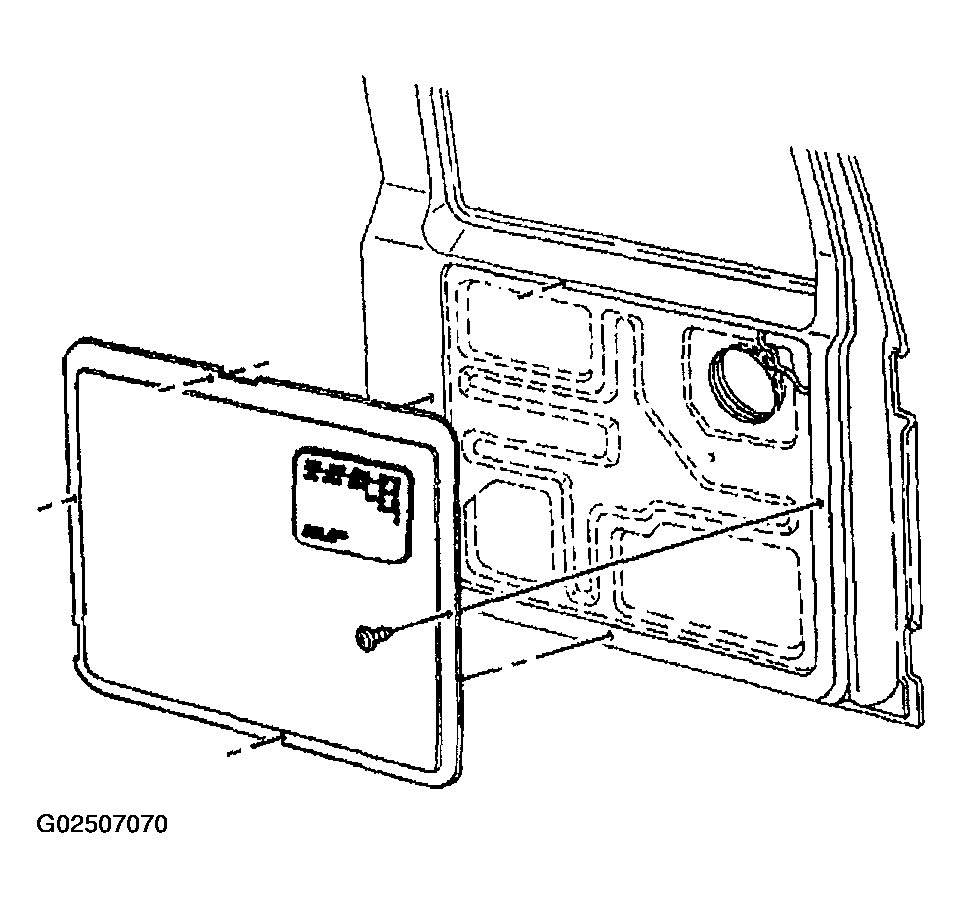

    4. Fig 1: Removing & Installing Rear Cargo Door Trim Panel
    G02507070Courtesy of GENERAL MOTORS CORP.
