Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a lift window hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
NOTE: Apply pressure only at the end of the hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.
  1. Open and support the liftgate.
  2. Remove the strut retaining clips from each end of the strut. Use a small flat bladed tool to lift up on the retaining clip in order to release the strut from the strut ball.

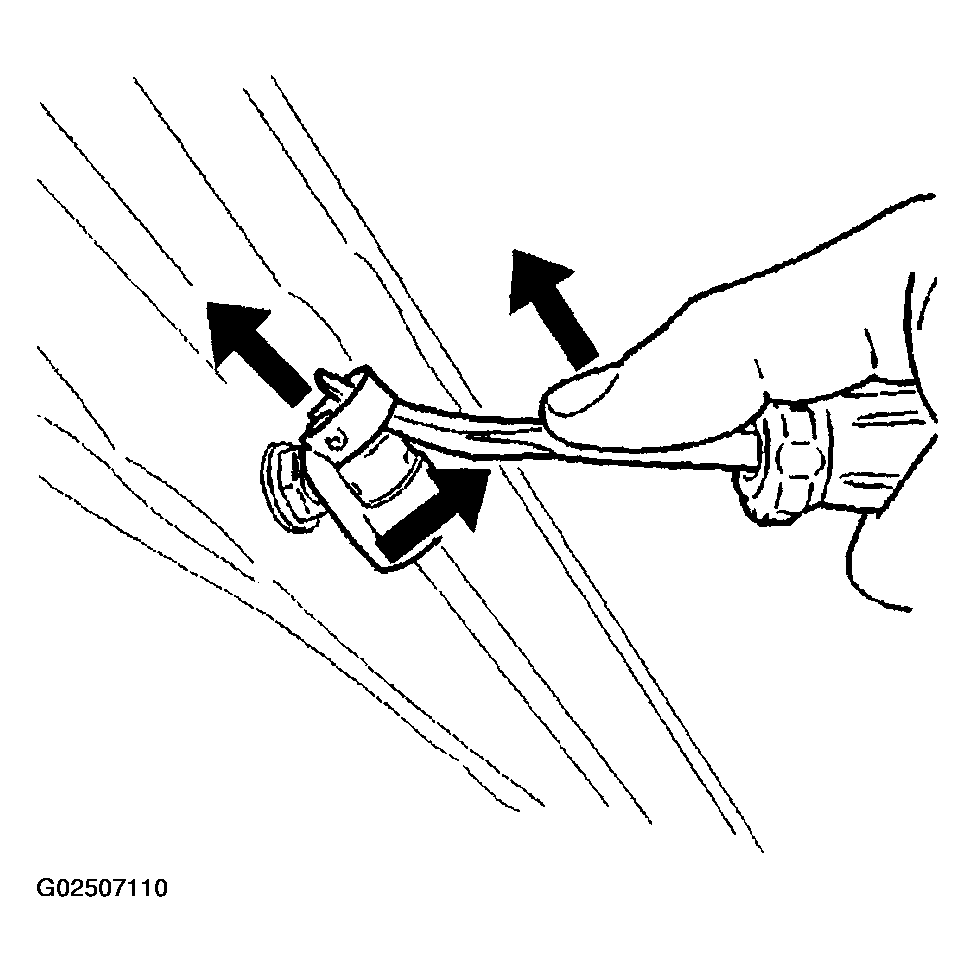

    3. Fig 1: Removing Lift Gate Strut Retaining Clip
    G02507110Courtesy of GENERAL MOTORS CORP.
  3. If equipped with a rear window defogger, remove the following components:
    1. The body side rear garnish molding from the headliner. Refer to TRIM REPLACEMENT - FOURTH PILLAR LEFT in Interior Trim.
    2. The body side rear garnish molding and speaker as one. Refer to TRIM REPLACEMENT - THIRD PILLAR LEFT in Interior Trim.
    3. The rear window defogger electrical connector from the harness
    4. The grommet and electrical connector from the body, by pulling the components out
  4. Remove the strut.

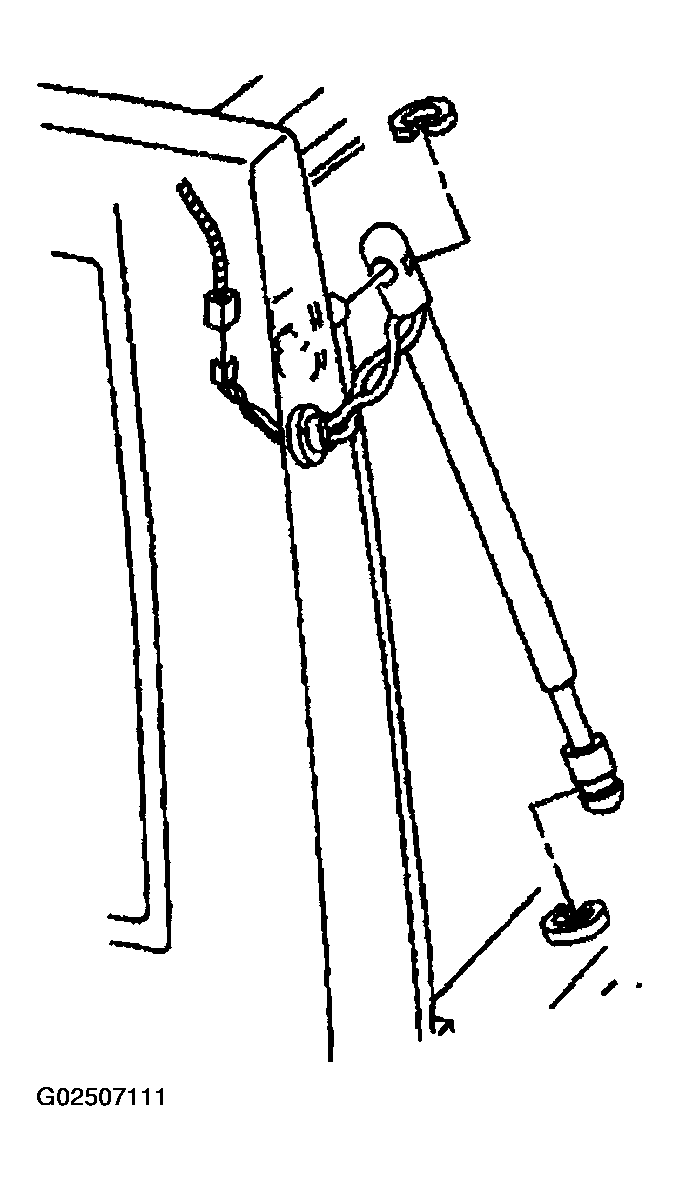

    5. Fig 2: Removing & Installing Lift Gate Strut
    G02507111Courtesy of GENERAL MOTORS CORP.
