Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the liftgate.
  2. Remove the strut. Refer to STRUT REPLACEMENT - LIFT GATE  .
  3. Remove the strut ball from the lid or body by turning counterclockwise.

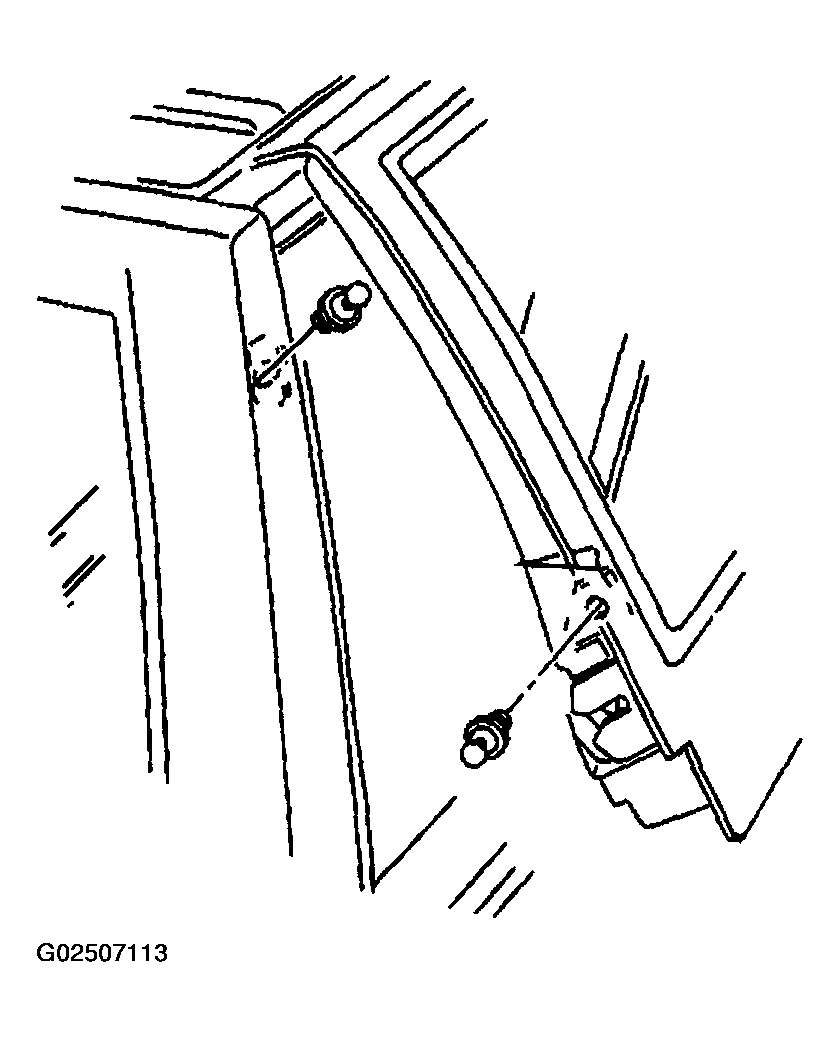

    4. Fig 1: Removing & Installing Lift Gate Strut Ball Stud
    G02507113Courtesy of GENERAL MOTORS CORP.
