Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts that retain the striker.
  2. Remove the striker from the vehicle.

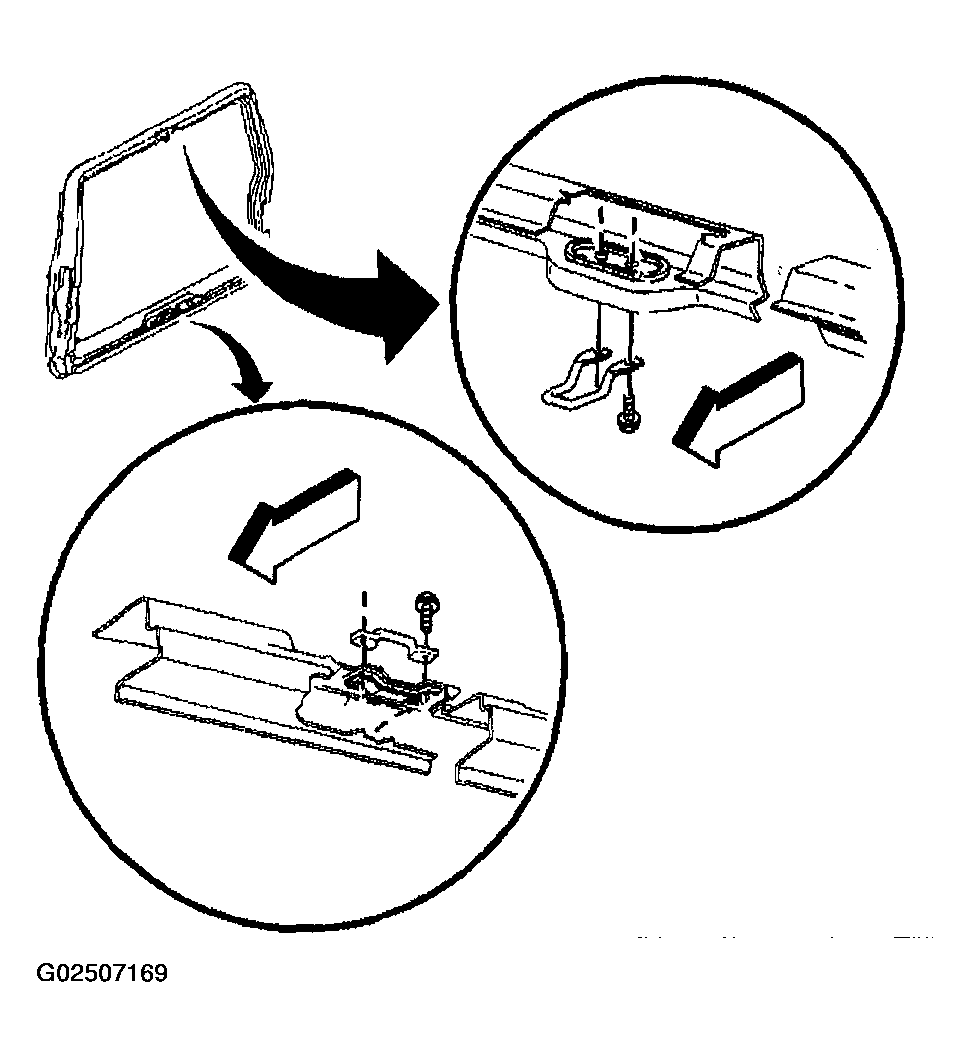

    3. Fig 1: Removing & Installing Upper & Lower Lock Striker
    G02507169Courtesy of GENERAL MOTORS CORP.
