Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the lock striker to the vehicle.
  2. Install the bolts that retain the lock striker to the vehicle. Tighten:  Tighten the bolts that retain the lock striker to 8 N.m (71 lb in).

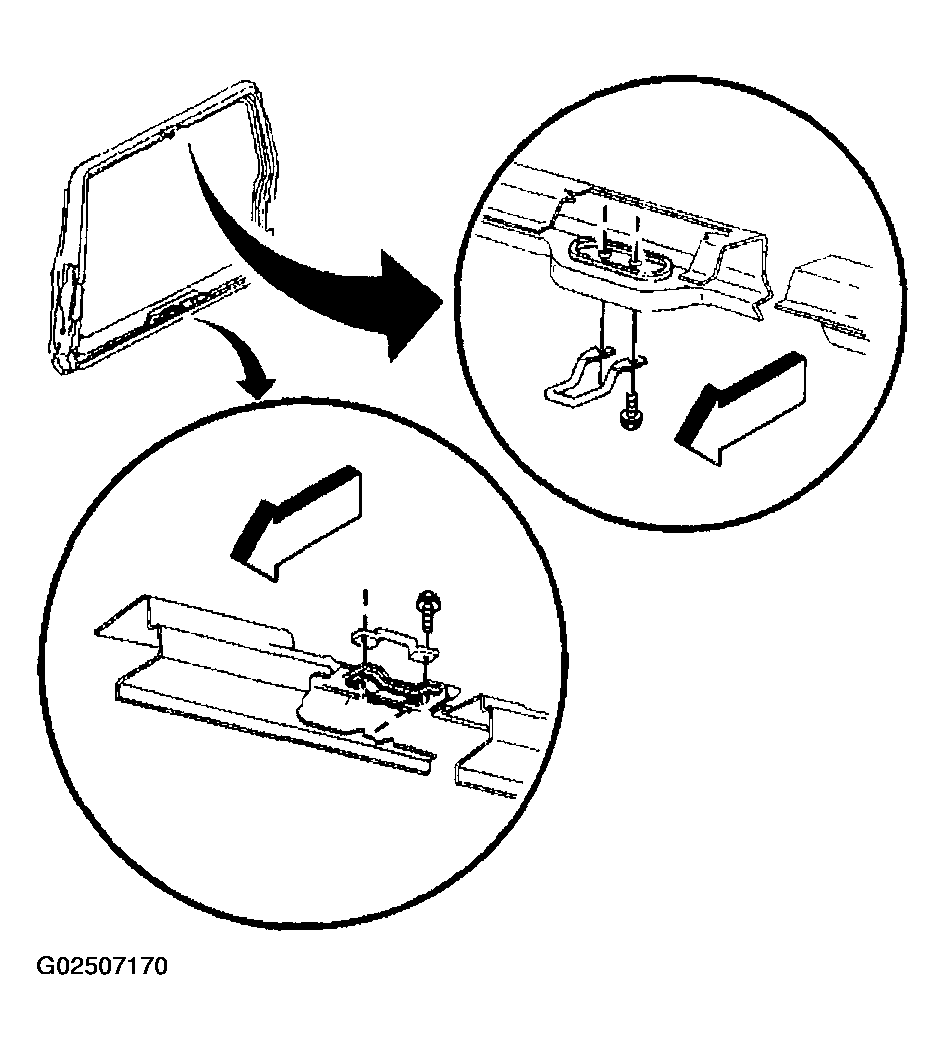

    3. Fig 1: Removing & Installing Upper & Lower Lock Striker
    G02507170Courtesy of GENERAL MOTORS CORP.
