Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.

Install the liftgate striker (2) with the screws (1). Tighten:  Tighten the liftgate striker screws to 10 N.m (88 lb in).

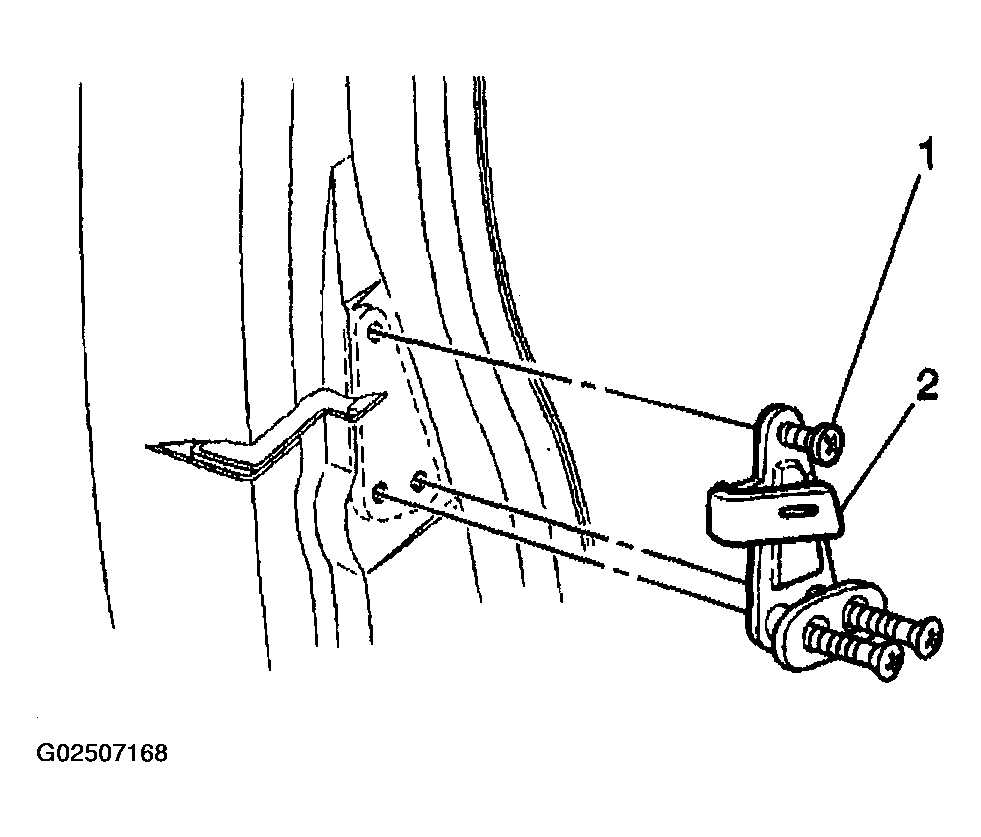

Fig 1: Removing & Installing Lift Gate Lock Striker
G02507168Courtesy of GENERAL MOTORS CORP.
