Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .
  2. Remove the water deflector. Refer to Water Deflector Replacement  .
  3. Remove the control rods from the remote lock.
    1. Pry the clip anchor out of the hole.
    2. Push the clip away from the lever.
    3. Pull the rod and the clip away from the lever.
  4. Remove the remote lock nuts.
  5. Remove the lock.

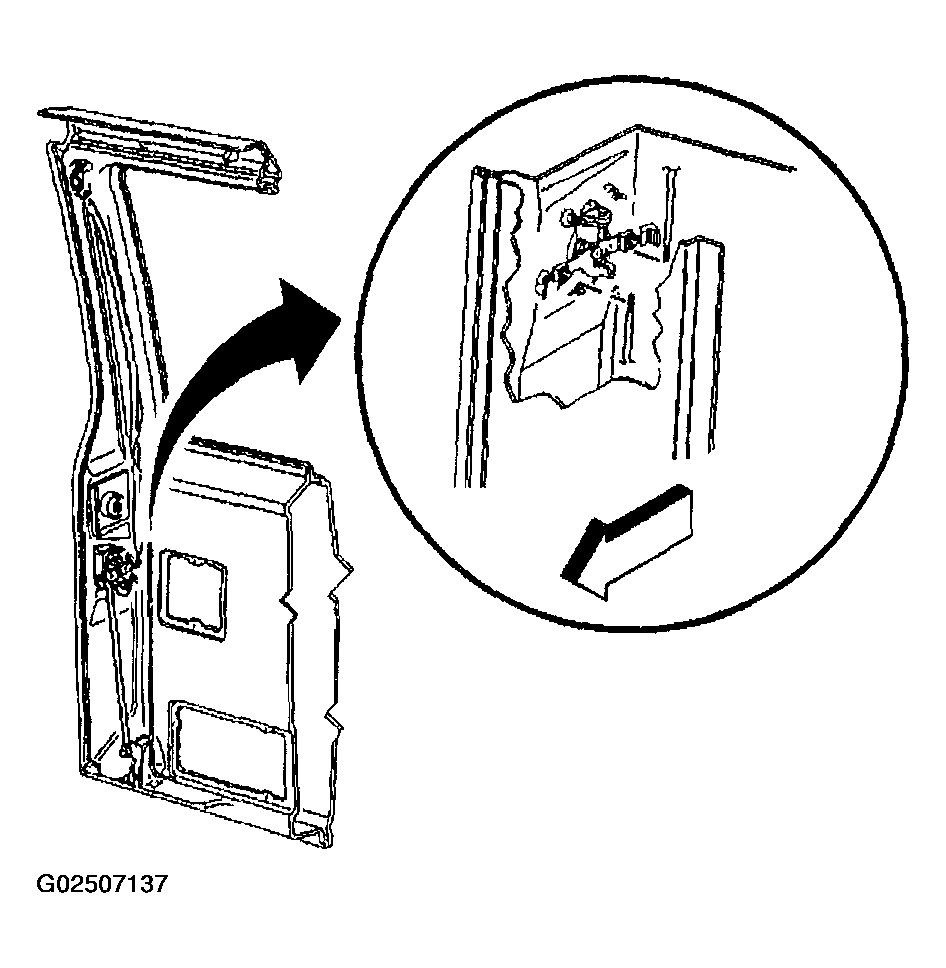

    6. Fig 1: Removing & Installing Rear Door Remote Lock Control Rods
    G02507137Courtesy of GENERAL MOTORS CORP.

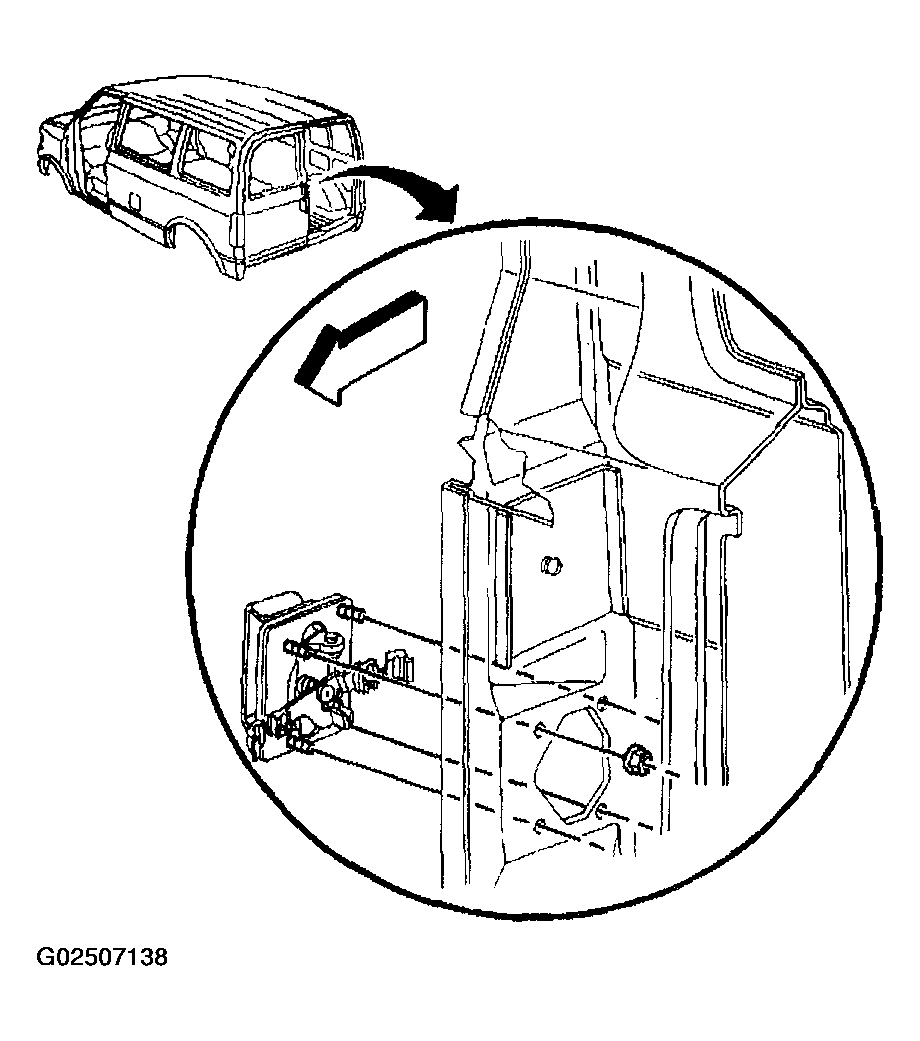

    Fig 2: Removing & Installing Rear Door Remote Lock
    G02507138Courtesy of GENERAL MOTORS CORP.
