Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the clips to the remote lock.
  2. Install the remote lock.
  3. Install the remote lock nuts. Tighten:  Tighten the remote lock nuts to 7 N.m (62 lb in).
  4. Install the control rods through the clips to the remote lock.
  5. Install the water deflector. Refer to Water Deflector Replacement  .
  6. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

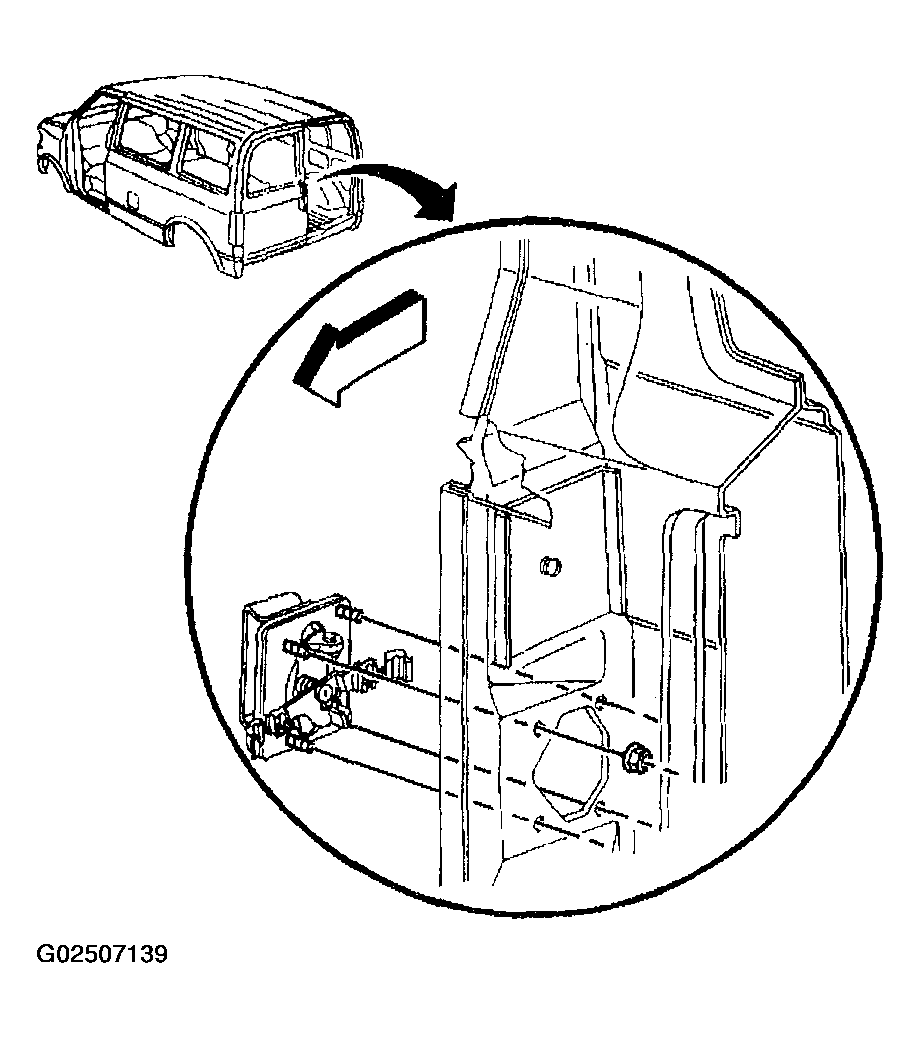

    7. Fig 1: Removing & Installing Rear Door Remote Lock
    G02507139Courtesy of GENERAL MOTORS CORP.

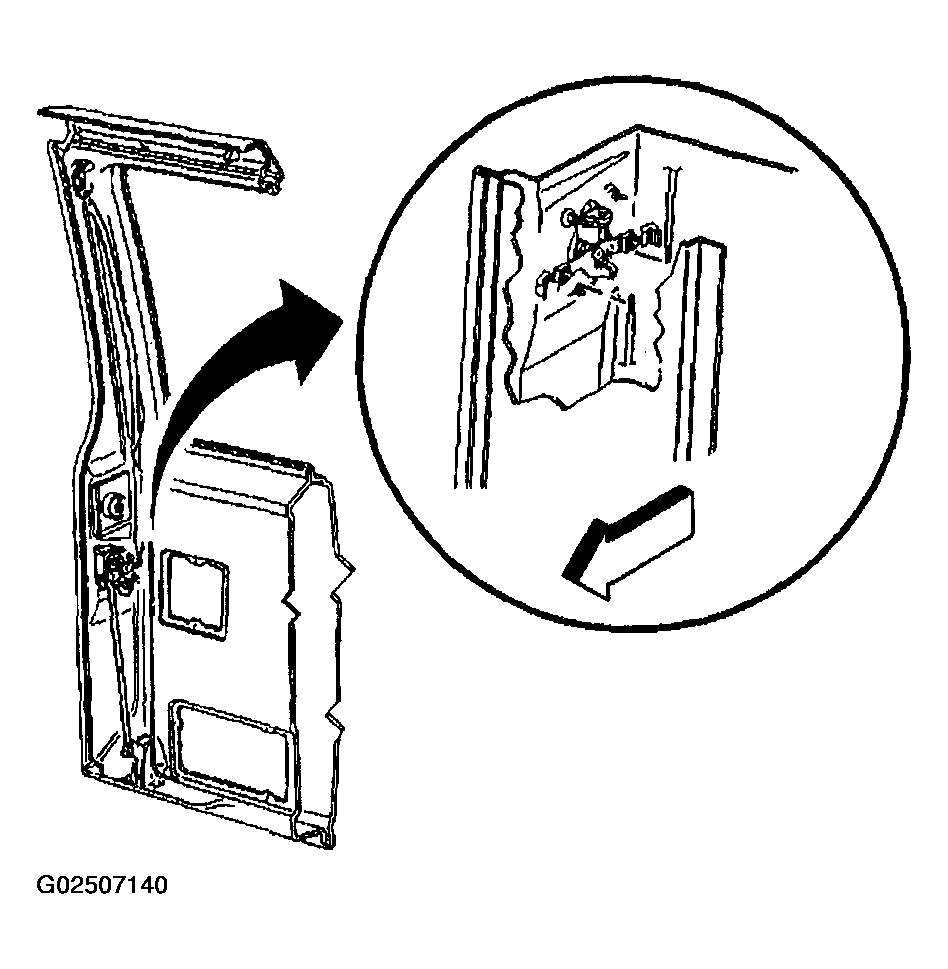

    Fig 2: Removing & Installing Rear Door Remote Lock Control Rods
    G02507140Courtesy of GENERAL MOTORS CORP.
