Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clips to the lock.
  2. Install the lock to the door.
    3. NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  3. Install the screws (3) that retain the lock to the door. Tighten:  Tighten the screws that retain the lock to the door to 9 N.m (80 lb in).
  4. Install the control rods (1, 2) through the clips to the lock assembly.
  5. Install the water deflector. Refer to Water Deflector Replacement  .
  6. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

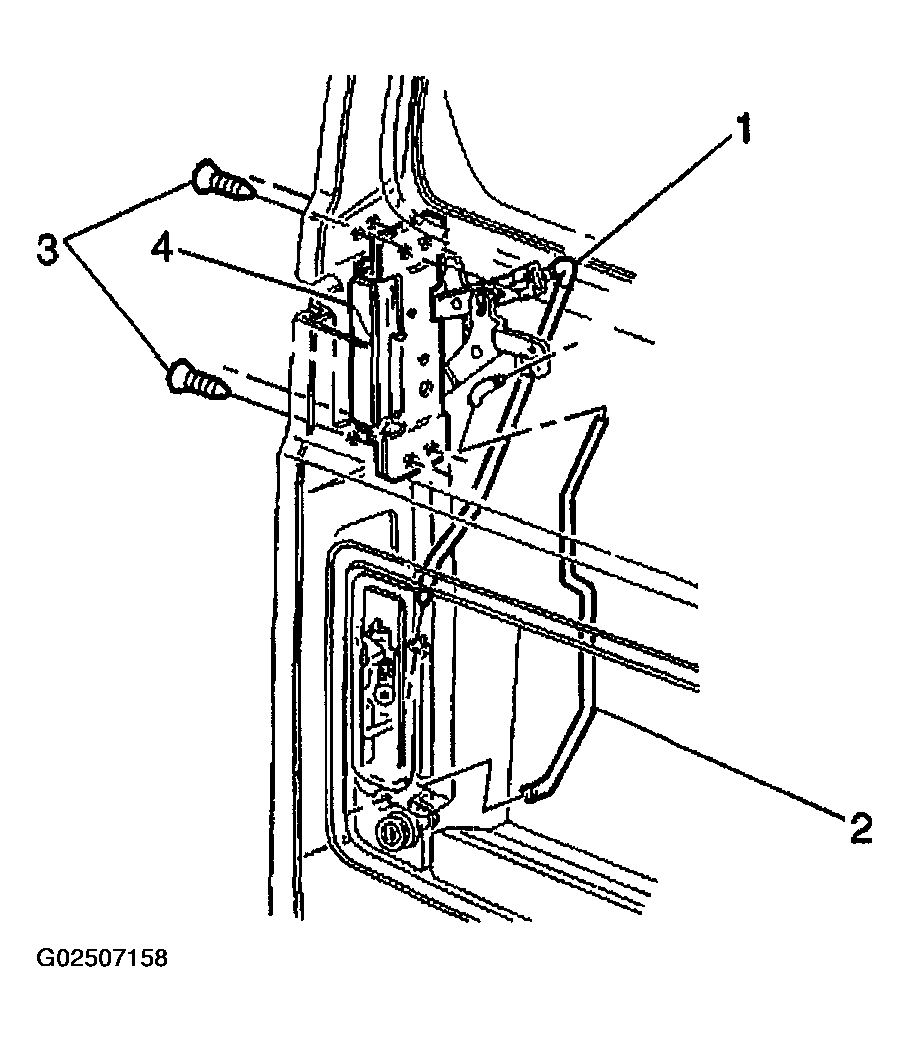

    7. Fig 1: Removing & Installing Rear Cargo Door Lock Assembly
    G02507158Courtesy of GENERAL MOTORS CORP.
