Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required: M 39010  Heavy Duty Rivet Gun. See SPECIAL TOOLS & EQUIPMENT  .

  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .
  2. Use a sharp-bladed tool, if needed, in order to separate the water deflector at the perforations. Refer to Water Deflector Replacement  .
  3. Remove the control rods from the lever (3).
  4. Grind the head of the rivet (1) in order to remove the lever to door rivet.
  5. Remove the lever from the door.

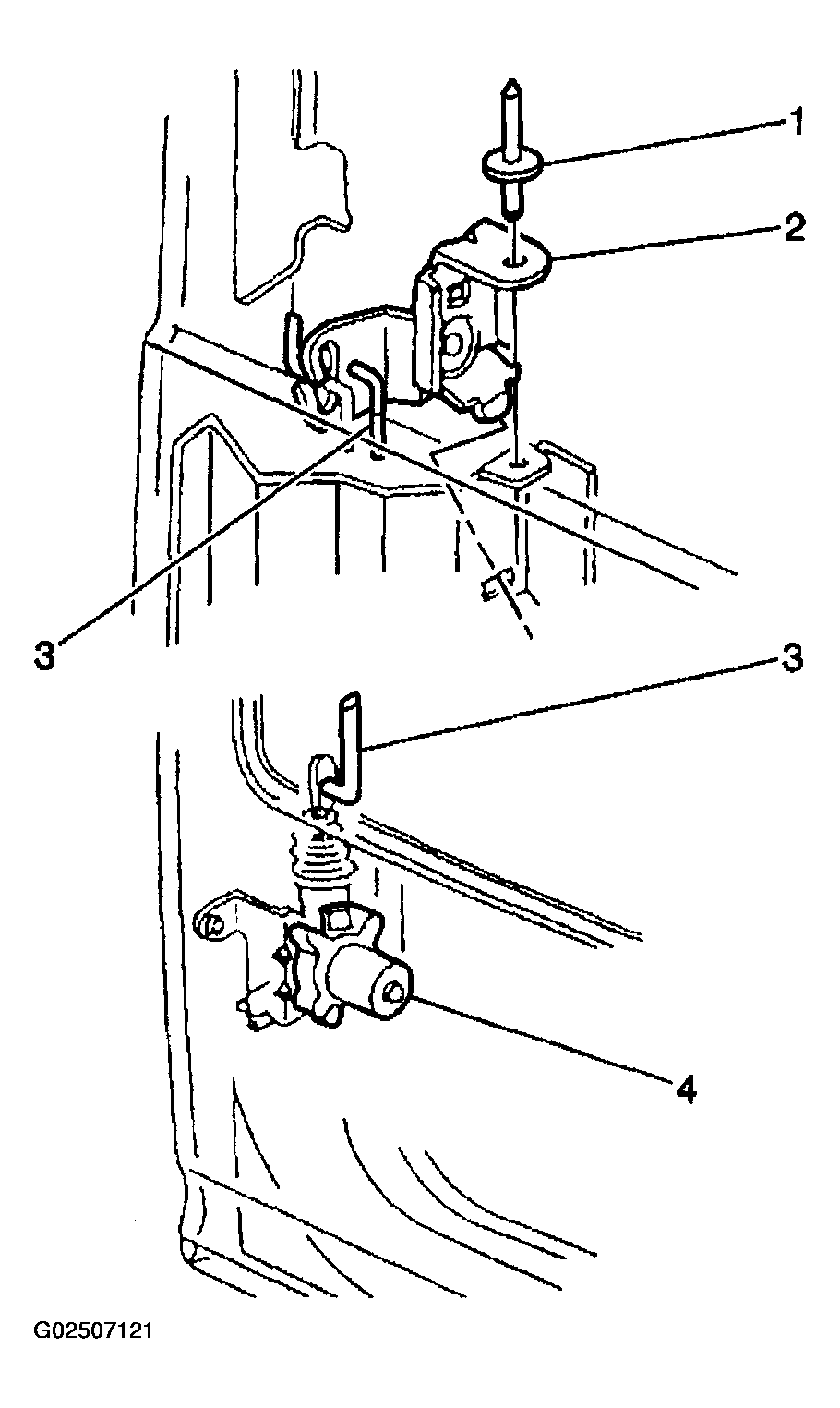

    6. Fig 1: Exploded View Of Rear Door Remote Lock Lever Assembly
    G02507121Courtesy of GENERAL MOTORS CORP.
