Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lever to the door.
  2. Use M 39010 in order to install the lever to door rivets (1).
  3. Install the control rods to the lever (3).
  4. Install the water deflector. Refer to Water Deflector Replacement  .
  5. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

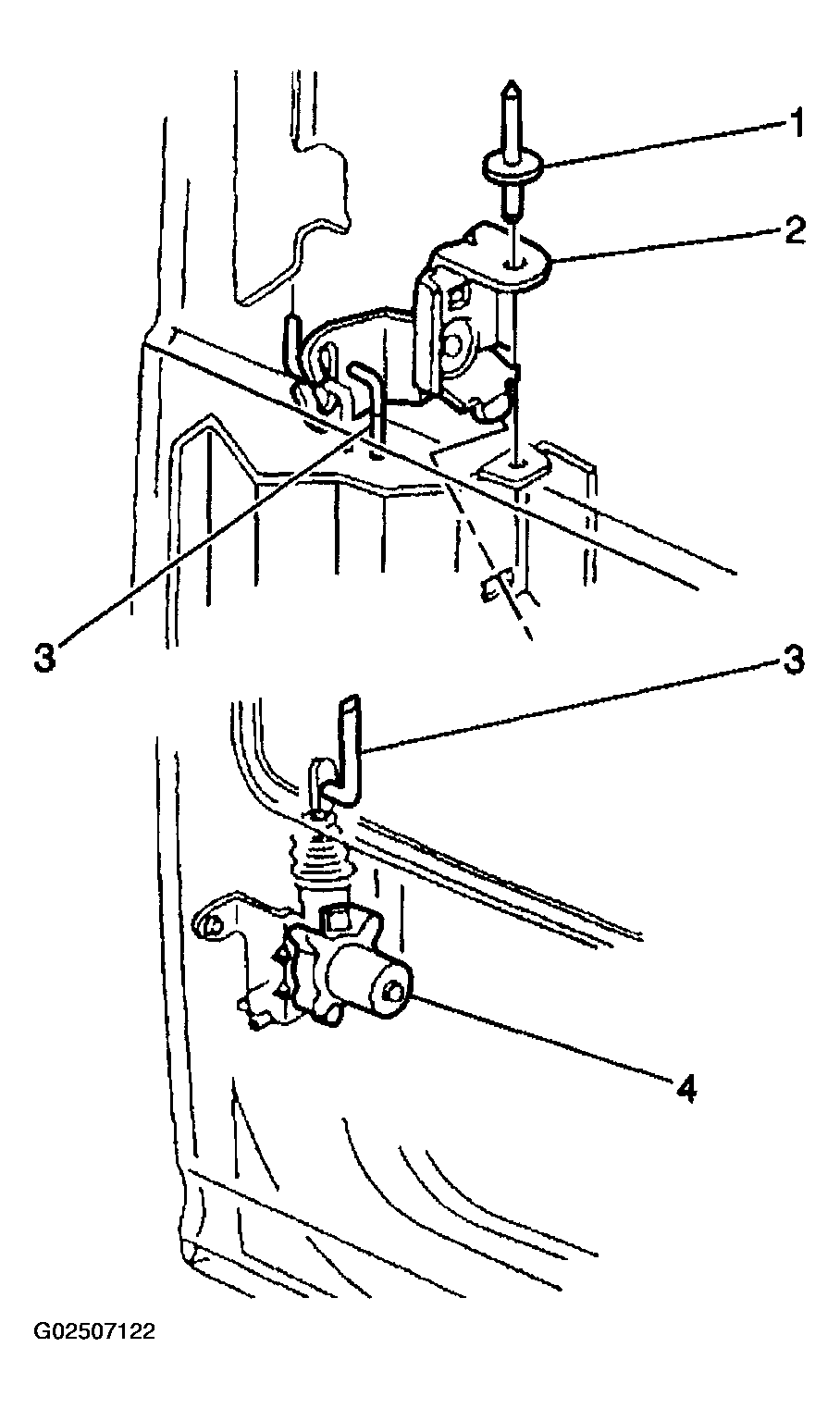

    6. Fig 1: Exploded View Of Rear Door Remote Lock Lever Assembly
    G02507122Courtesy of GENERAL MOTORS CORP.
