Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE  .
  2. Disconnect the electrical connector.
  3. Remove the rear wiper motor from the liftgate.
  4. Remove the lock cylinder retainer.
  5. Remove the lock cylinder from the liftgate.

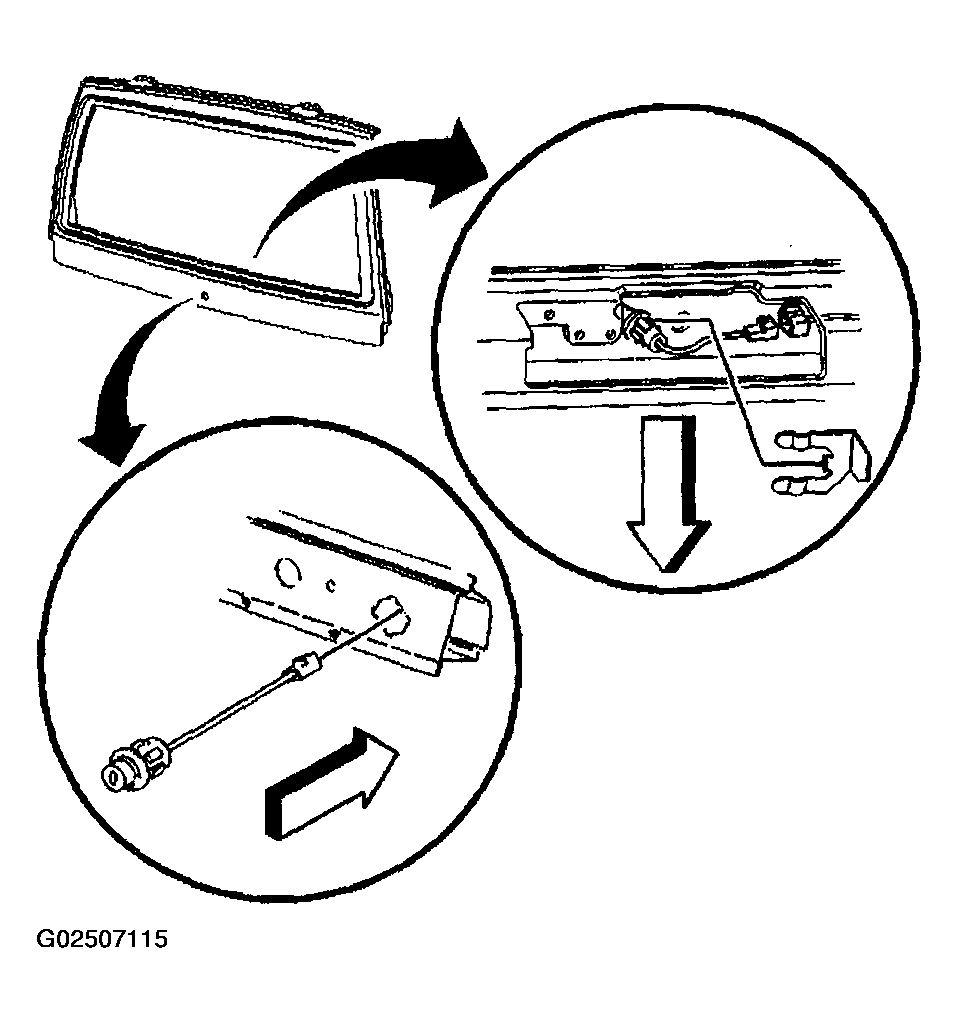

    6. Fig 1: Removing & Installing Lift Gate Lock Cylinder
    G02507115Courtesy of GENERAL MOTORS CORP.
