Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock cylinder to the liftgate.
  2. Install the lock cylinder retainer.
  3. Install the rear wiper motor to the liftgate.
  4. Connect the electrical connector.
  5. Install the liftgate garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE  .

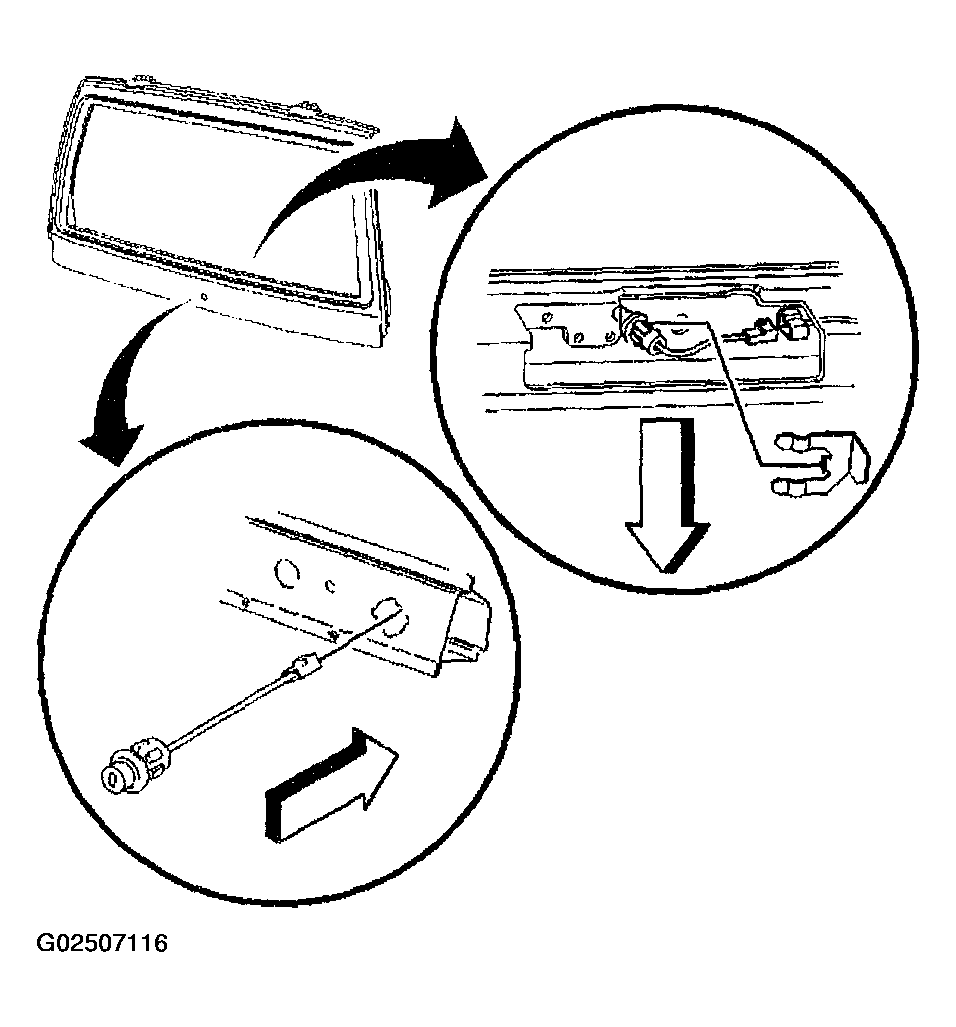

    6. Fig 1: Removing & Installing Lift Gate Lock Cylinder
    G02507116Courtesy of GENERAL MOTORS CORP.
