Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the actuator to the liftgate.
  2. Use M 39010 in order to install the actuator to the liftgate rivets.
    3. IMPORTANT: Install new retainers whenever the control rods are removed.
  3. Install the right and the left control rods to the actuator lever.
  4. Install the wiper motor to the liftgate.
  5. Install the actuator electrical connector.
  6. Install the brace to the liftgate.
  7. Install the liftgate garnish molding. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE  .

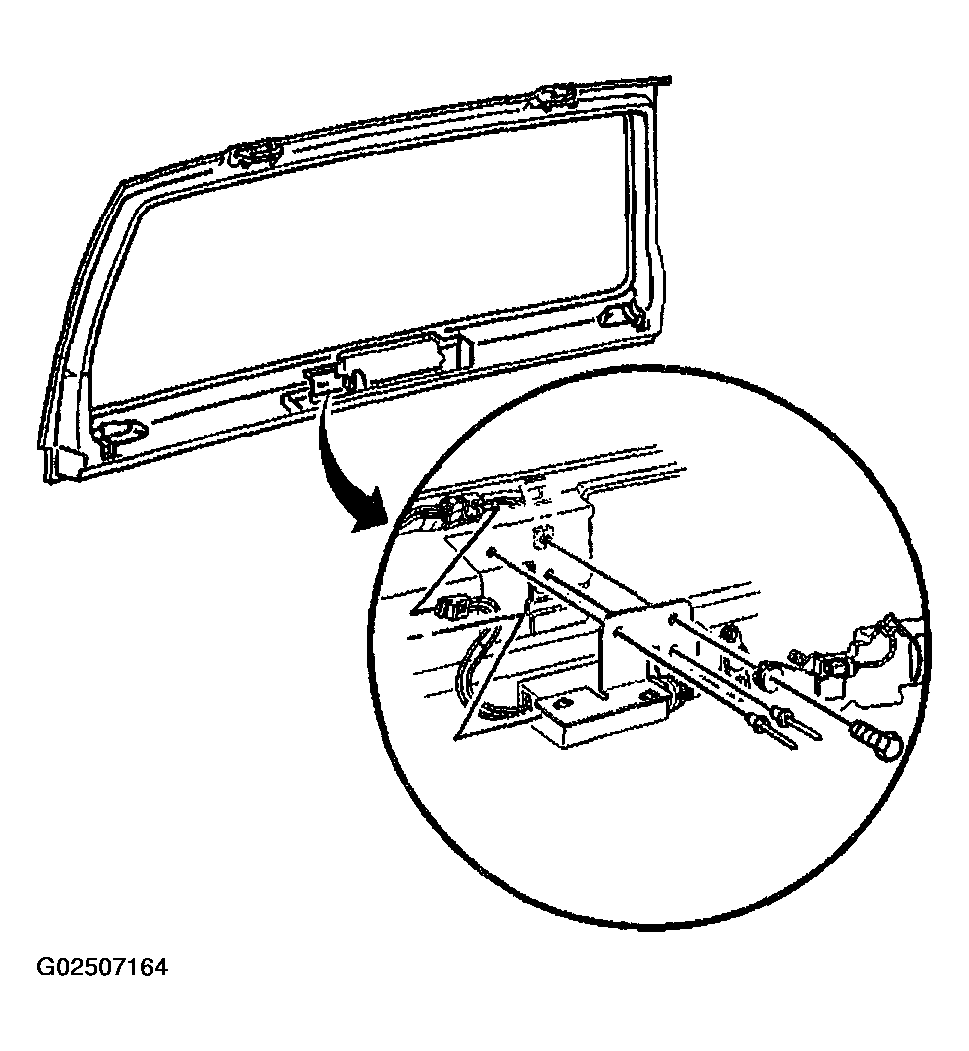

    8. Fig 1: Removing & Installing Lift Gate Lock Actuator
    G02507164Courtesy of GENERAL MOTORS CORP.
