Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the actuator to the door.
  2. Use the M 39010 in order to install the rivets that retain the actuator to the door.
  3. Install the actuator wiring connector.
  4. Install the actuator to the lever rod.
  5. Install the water deflector. Refer to Water Deflector Replacement  .
  6. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

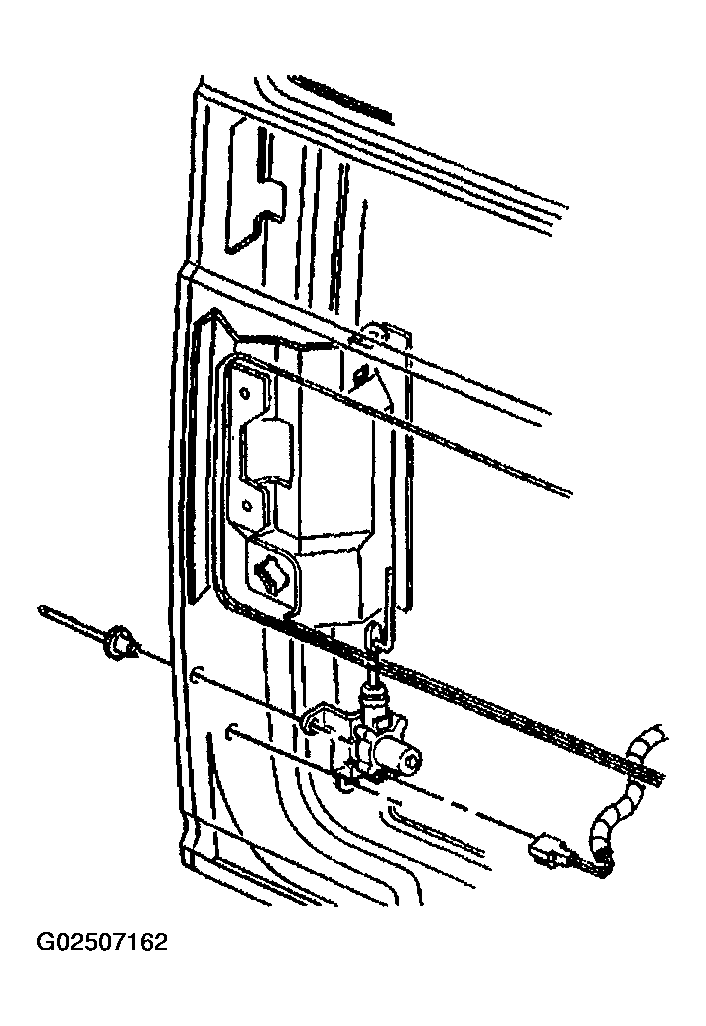

    7. Fig 1: Removing & Installing Door Lock Actuator
    G02507162Courtesy of GENERAL MOTORS CORP.
