Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .
  2. Use a soft-faced scraper, if needed, in order to peel the water deflector away from the door. Refer to Water Deflector Replacement  .
  3. Remove the lamp harness from the license plate housing (2).
  4. Remove the bolts (1) from the housing.
  5. Remove the housing from the door (2).

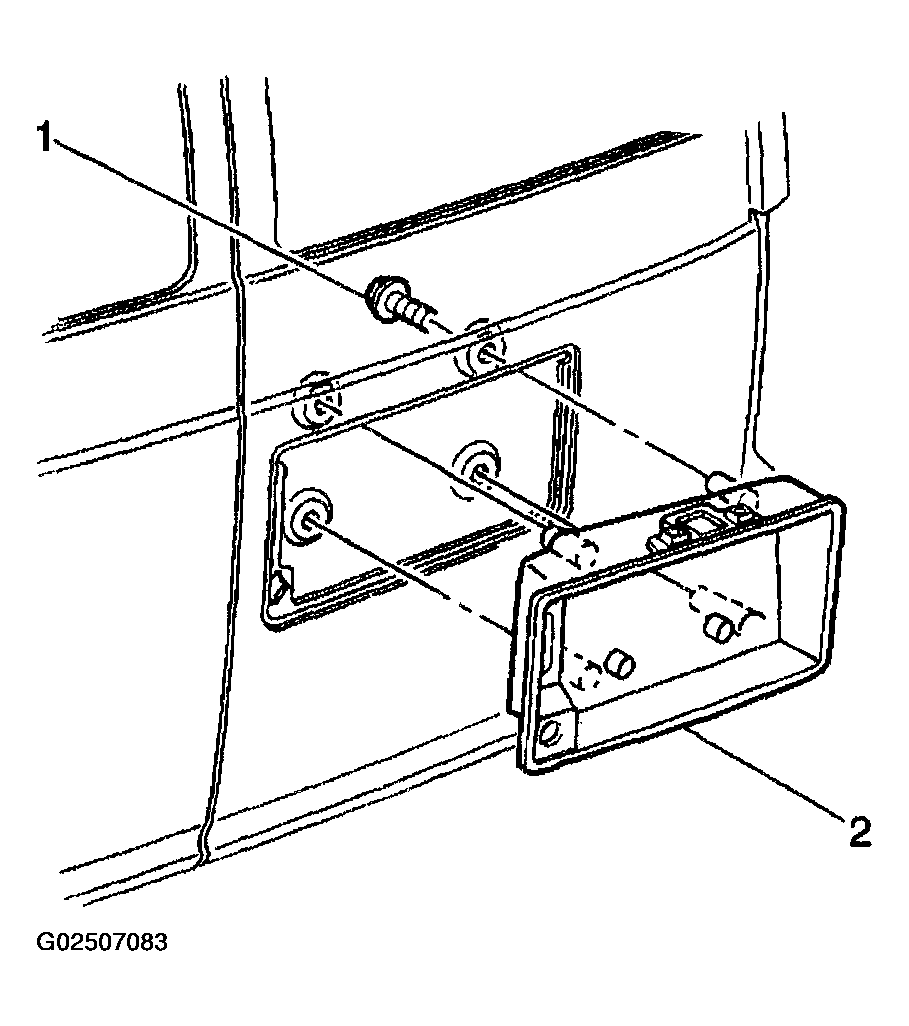

    6. Fig 1: Removing & Installing License Plate Pocket
    G02507083Courtesy of GENERAL MOTORS CORP.
