Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the housing (2) to the door.
  2. Install the housing to door bolts (1). Tighten:  Tighten the door bolts to 4 N.m (35 lb in).
  3. Install the lamp harness to the housing.
  4. Install the water deflector. Refer to Water Deflector Replacement  .
  5. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

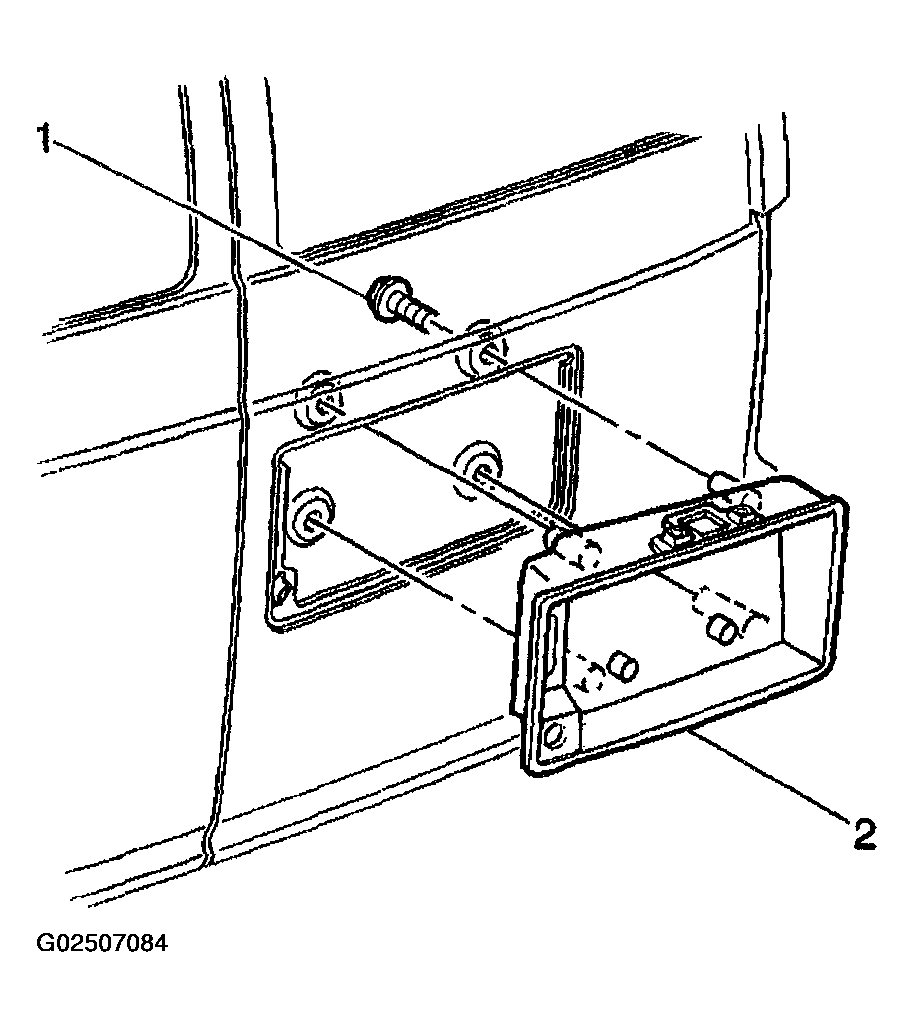

    6. Fig 1: Removing & Installing License Plate Pocket
    G02507084Courtesy of GENERAL MOTORS CORP.
