Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clips to the remote lock.
  2. Install the lower latch and the rod to the door.
  3. Install the reinforcement.

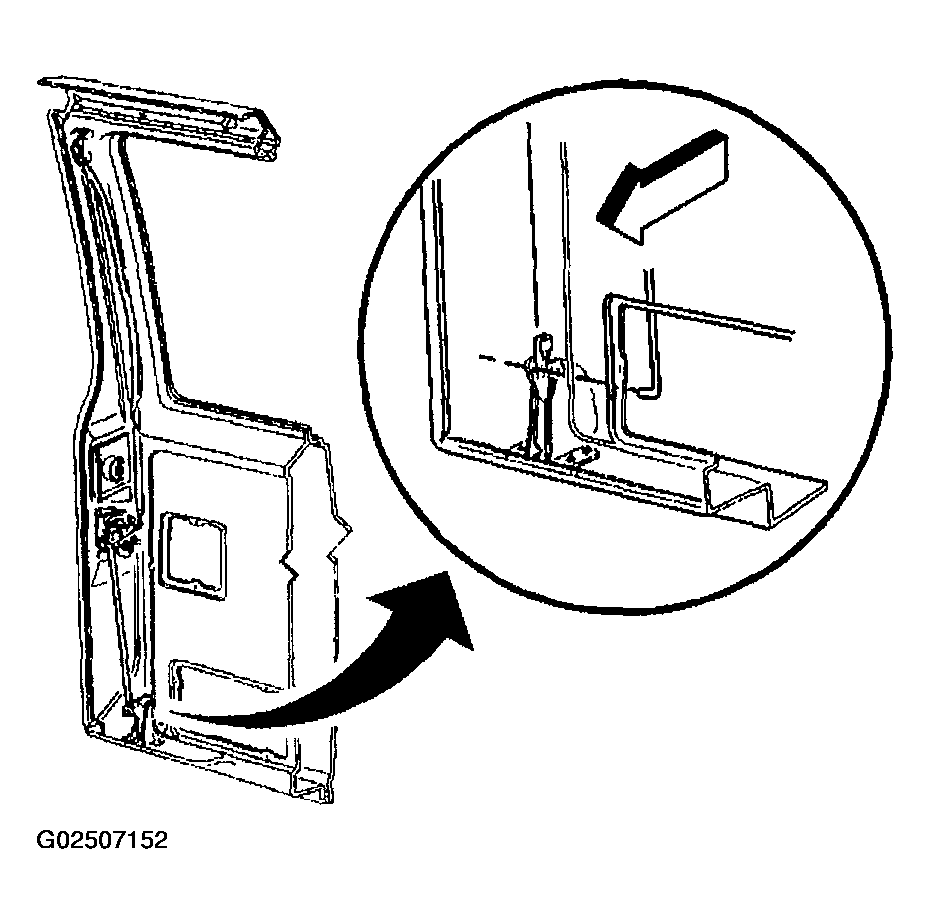

    4. Fig 1: Removing & Installing Lower Latch & Rod From Door
    G02507152Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  4. Install the lower latch screws. Tighten:  Tighten the lower latch screws to 8 N.m (71 lb in).

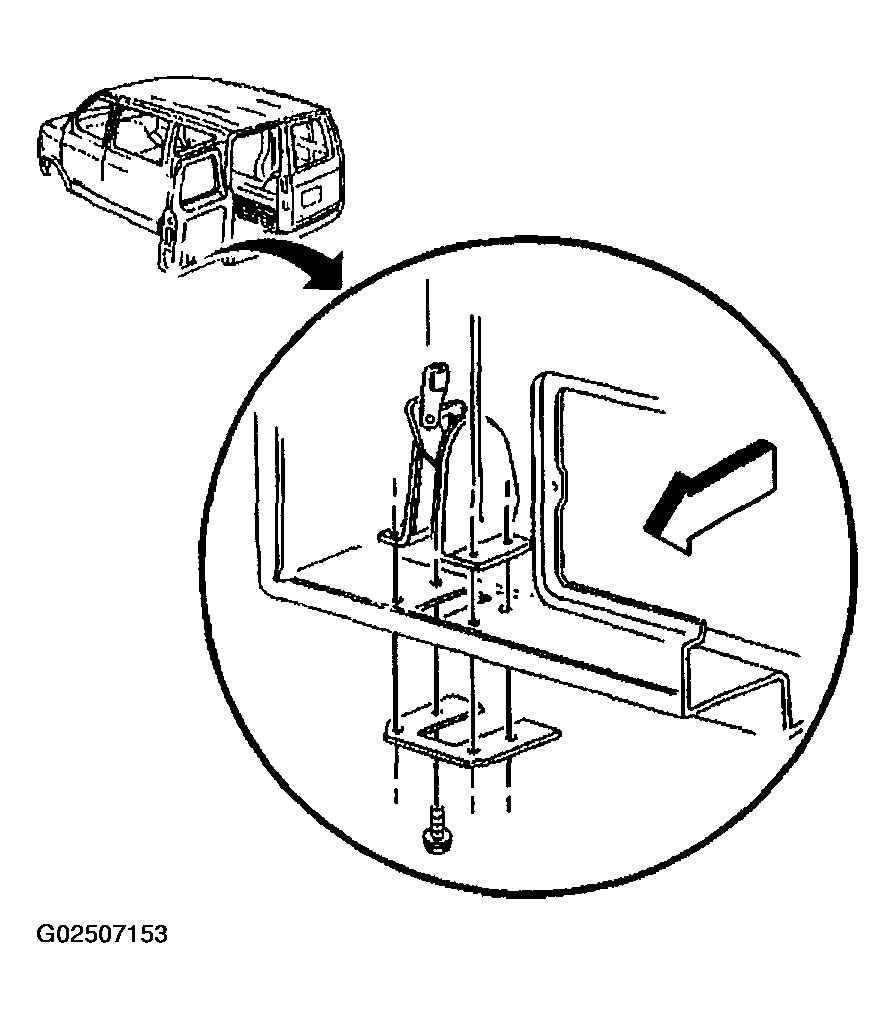

    5. Fig 2: Removing & Installing Lower Latch Screws & Reinforcement
    G02507153Courtesy of GENERAL MOTORS CORP.

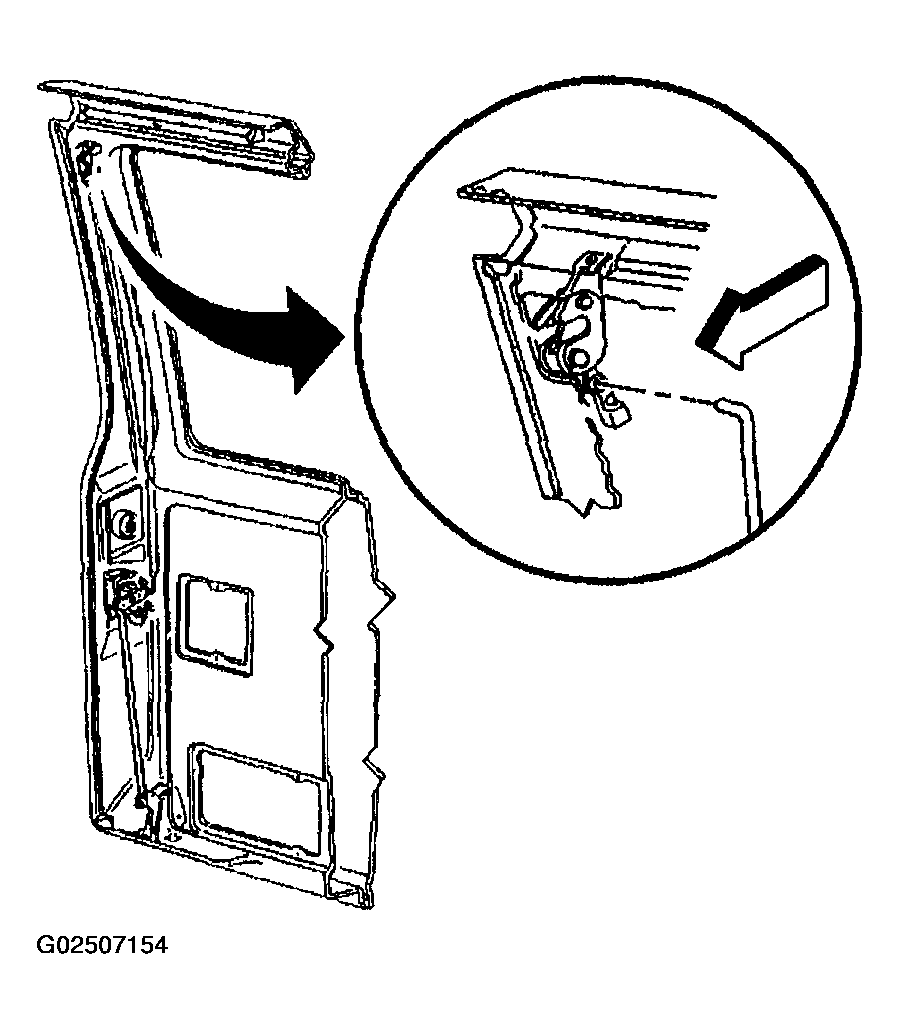

    Fig 3: Removing & Installing Upper Latch & Rod From Door
    G02507154Courtesy of GENERAL MOTORS CORP.
  5. Install the upper latch and the rod to the door.
  6. Install the cover, if equipped.
  7. Install the upper latch screws. Tighten:  Tighten the upper latch screws to 10 N.m (88 lb in).

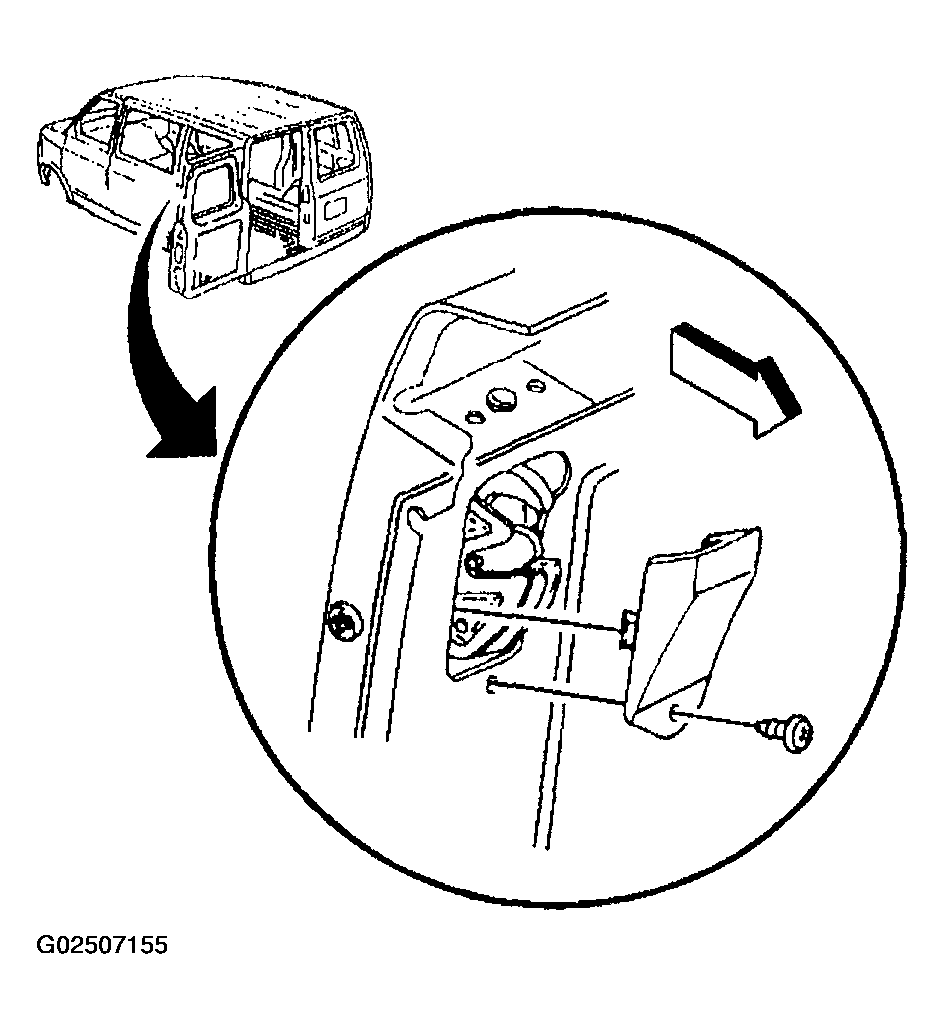

    8. Fig 4: Removing & Installing Upper Latch Cover
    G02507155Courtesy of GENERAL MOTORS CORP.

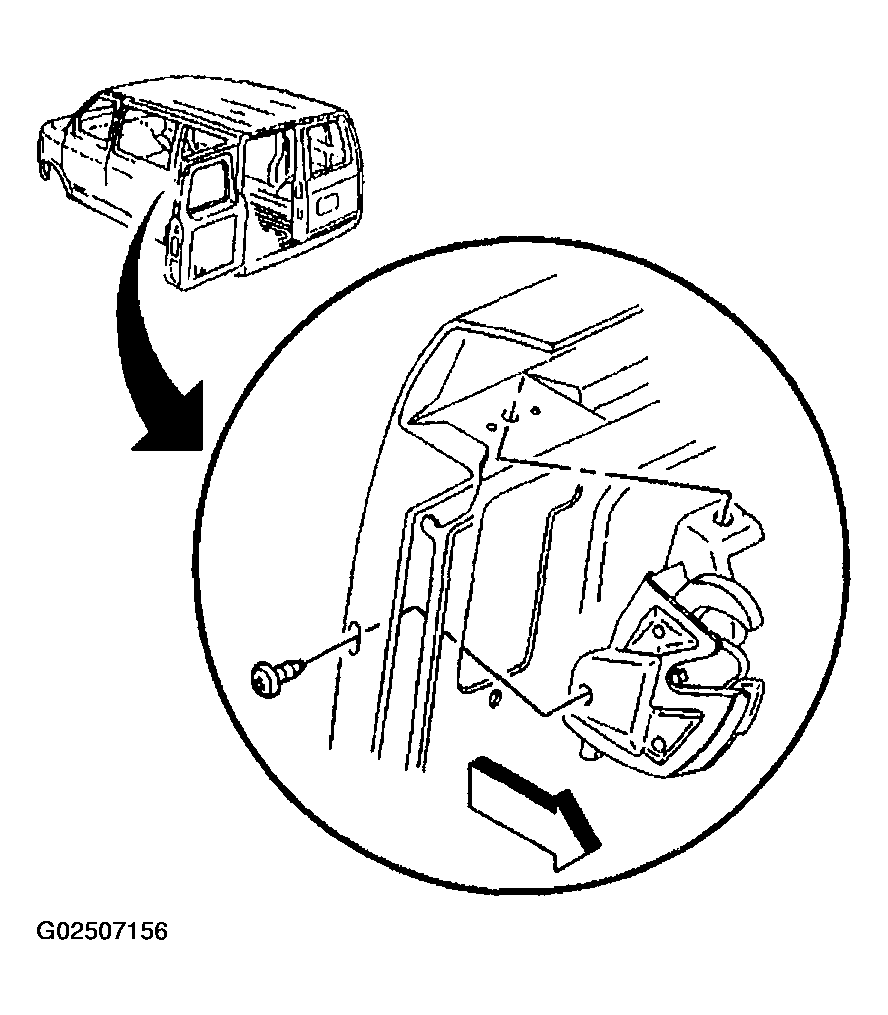

    Fig 5: Removing & Installing Upper Latch Screws
    G02507156Courtesy of GENERAL MOTORS CORP.
  8. Install the control rods through the clips to the remote lock.
  9. Install the water deflector. Refer to Water Deflector Replacement  .
  10. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .
