Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the control rod and the retainer to the latch.
  2. Install the retainer as shown in order to prevent squeaks and rattles.

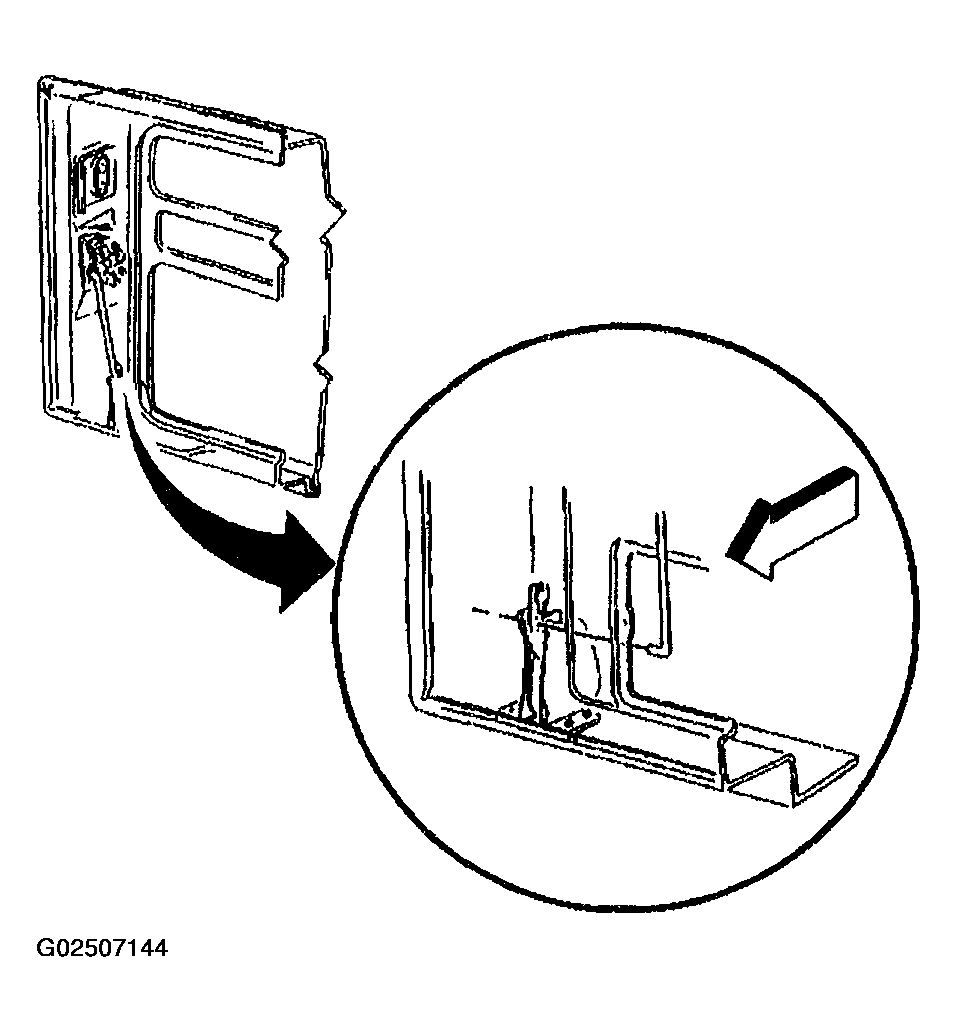

    3. Fig 1: Removing & Installing Lower Latch Assembly
    G02507144Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  3. Install the following components to the door. Ensure that the arrow on the retainer points toward the front of the vehicle:
    • The latch
    • The retainer
    • The bolts. Tighten:  Tighten the bolts to the door to 8 N.m (71 lb in).

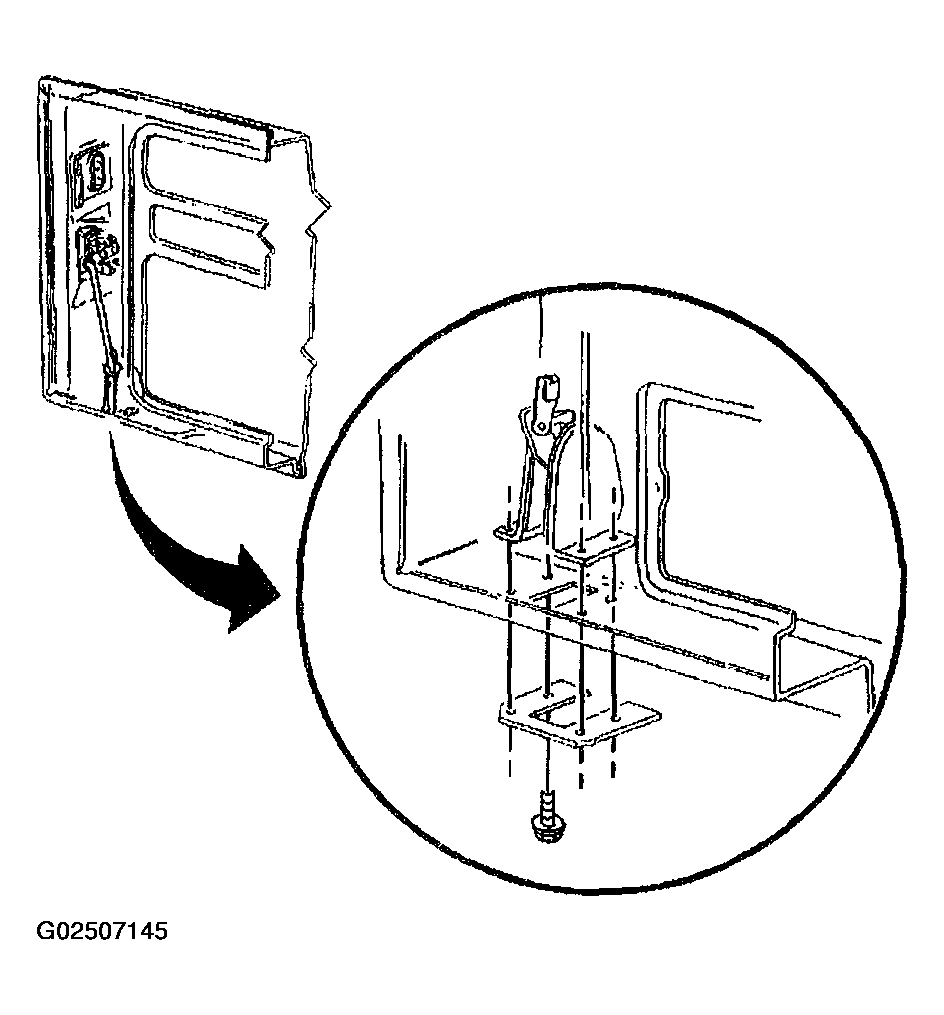

    4. Fig 2: Removing & Installing Lower Latch Bolts & Reinforcement
    G02507145Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Install new nylon retainers whenever you remove the control rods.
  4. Install the control rod to the lock assembly.
  5. Install the water deflector. Refer to Water Deflector Replacement  .
  6. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

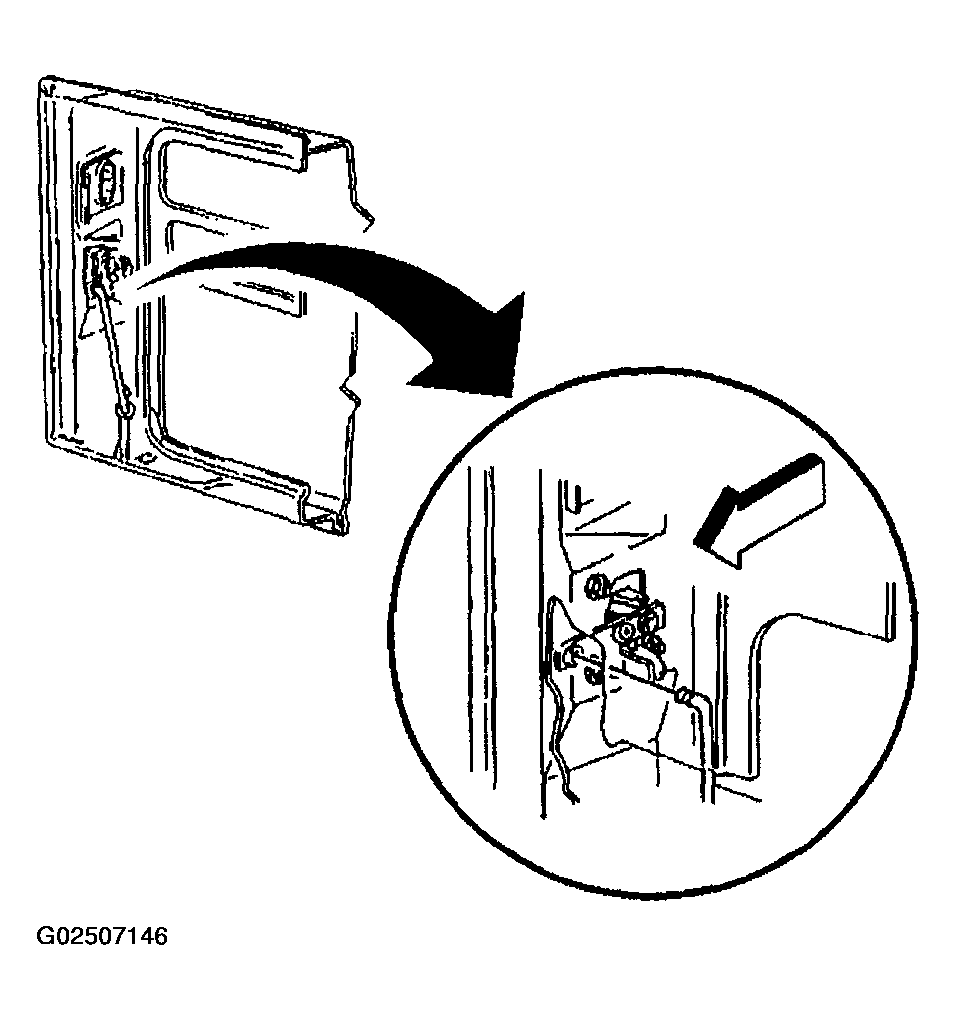

    7. Fig 3: Removing & Installing Lock Control Rods
    G02507146Courtesy of GENERAL MOTORS CORP.
