Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .
  2. Remove the water deflector. Refer to Water Deflector Replacement  .
  3. Remove the control rod (1) from the door lock.
  4. Remove the door handle nuts (2).
  5. Remove the door handle from the door.

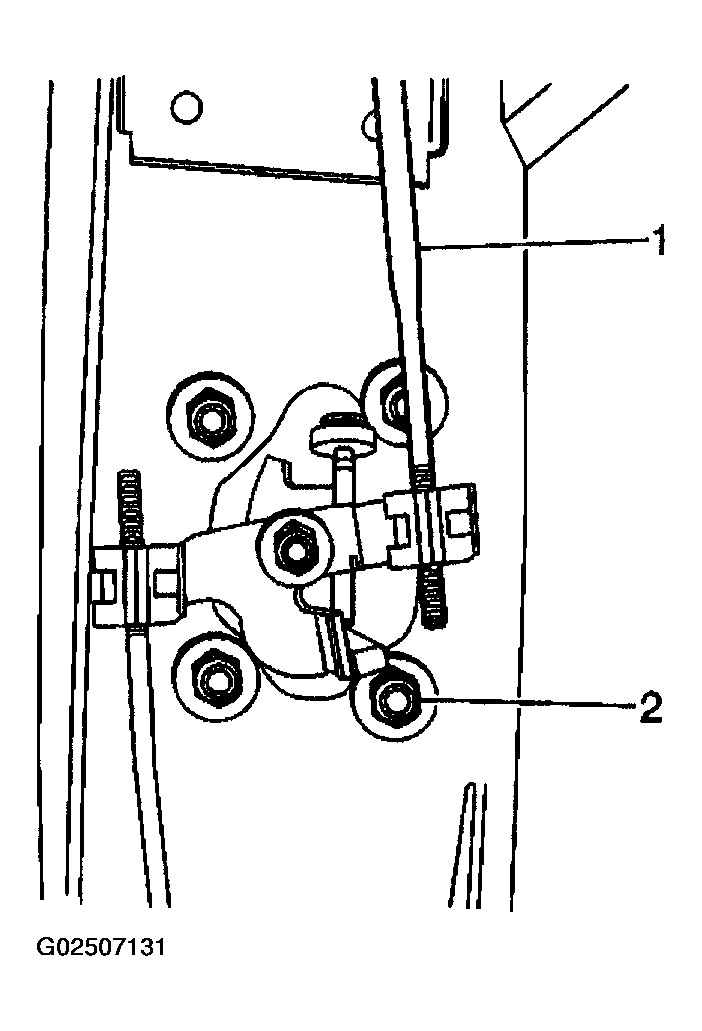

    6. Fig 1: Identifying Rear Door Inside Handle Lock Control Rod & Handle Attaching Nuts
    G02507131Courtesy of GENERAL MOTORS CORP.

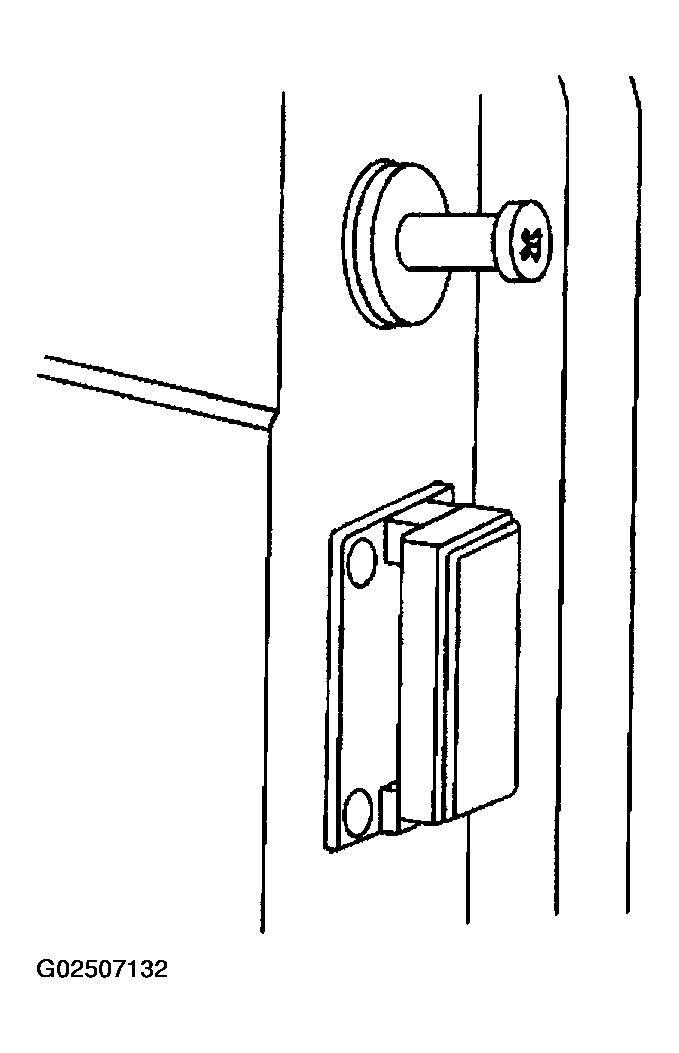

    Fig 2: Removing & Installing Rear Door Inside Handle
    G02507132Courtesy of GENERAL MOTORS CORP.
