Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the door handle to the door.
  2. Install the door handle nuts (2). Tighten:  Tighten the nuts to 11 N.m (97 lb in).
    3. IMPORTANT: Install new control rod retainers whenever they are removed.
  3. Install the control rod to the door handle (1).
  4. Install the water deflector. Refer to Refer to Water Deflector Replacement  .
  5. Install the door trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .
    6. Fig 1: Removing & Installing Rear Door Inside Handle
    G02507133Courtesy of GENERAL MOTORS CORP.

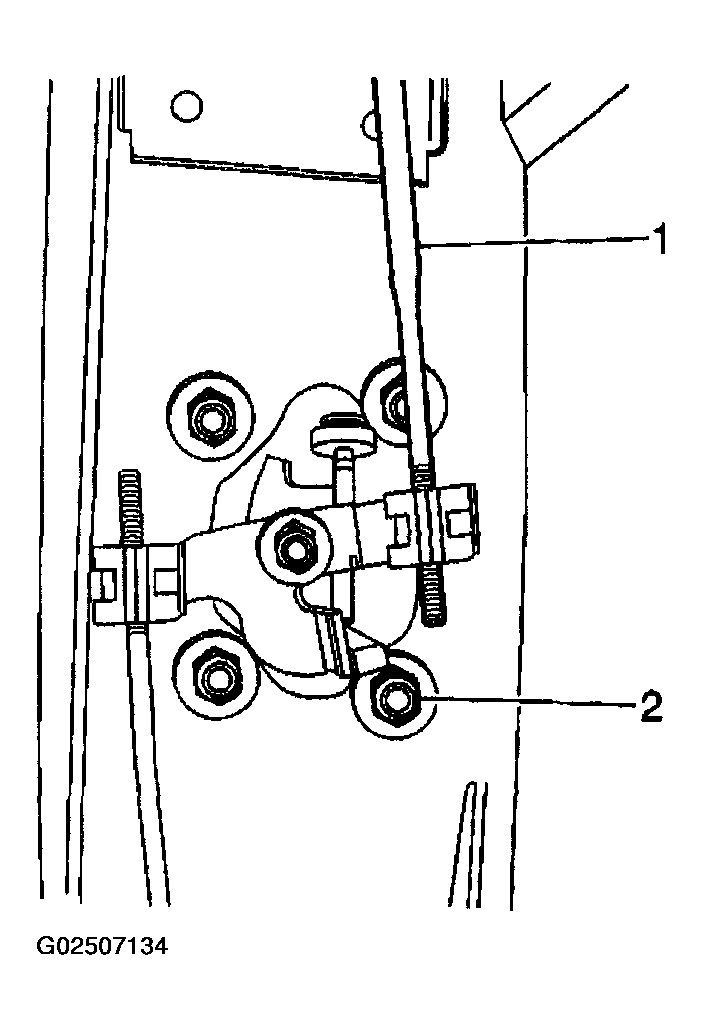

    Fig 2: Identifying Rear Door Inside Handle Lock Control Rod & Handle Attaching Nuts
    G02507134Courtesy of GENERAL MOTORS CORP.
