Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws that retain the liftgate handle.
  2. Remove the liftgate handle.

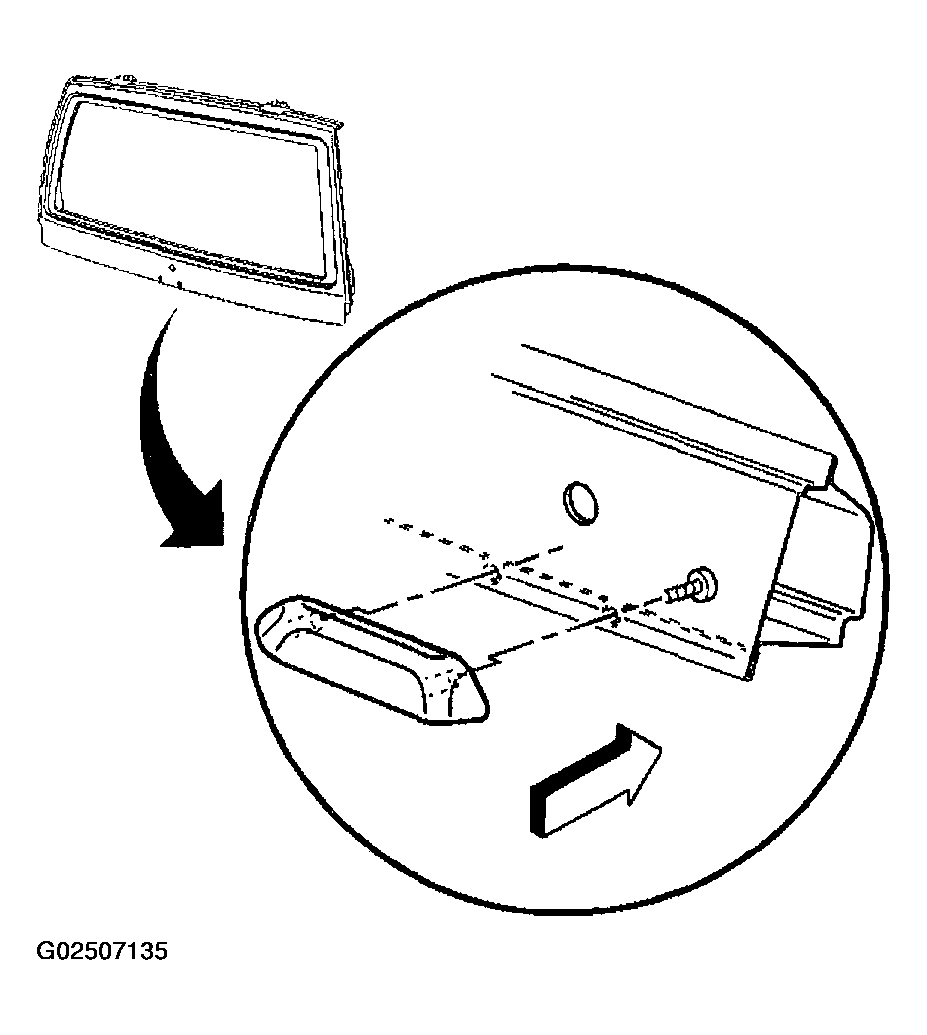

    3. Fig 1: Removing & Installing Lift Gate Handle
    G02507135Courtesy of GENERAL MOTORS CORP.
