Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the liftgate handle.
  2. Install the screws that retain the liftgate handle. Tighten:  Tighten the screws that retain the liftgate handle to 4 N.m (35 lb in).

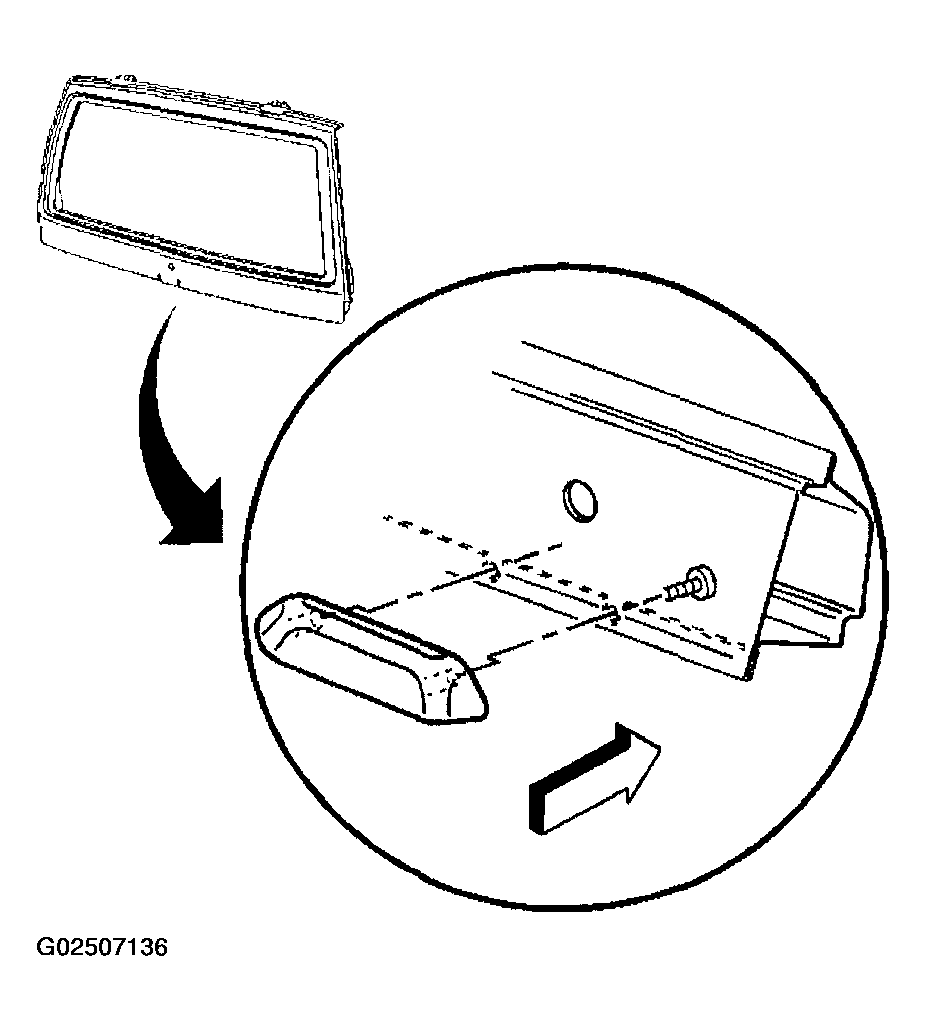

    3. Fig 1: Removing & Installing Lift Gate Handle
    G02507136Courtesy of GENERAL MOTORS CORP.
