Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the interior handle screw cover (12).
  2. Remove the screws (11).
  3. Remove the handle (10) and the escutcheon (9).
  4. Remove the garnish molding screws (3).
  5. Remove the garnish molding (2).

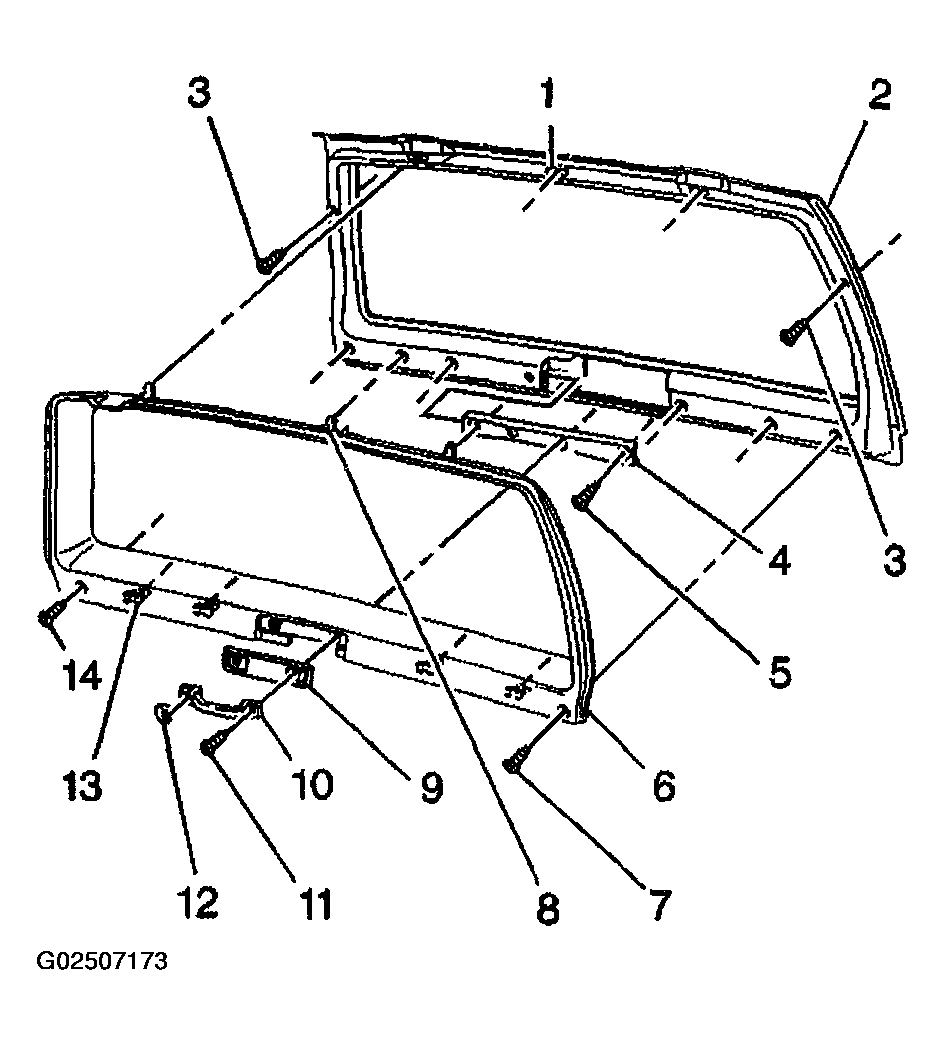

    6. Fig 1: Removing & Installing Lift Gate Garnish Molding
    G02507173Courtesy of GENERAL MOTORS CORP.
