Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the garnish molding (2). Install the locator pins into the locator hole on the liftgate.
  2. Install the garnish molding screws (3). Tighten:  Tighten the garnish molding screws to 2 N.m (18 lb in).
  3. Install the handle escutcheon (9) and the handle (10).
  4. Install the interior handle. Tighten:  Tighten the interior handle screws to 6 N.m (53 lb in).
  5. Install the interior handle screw covers (12).

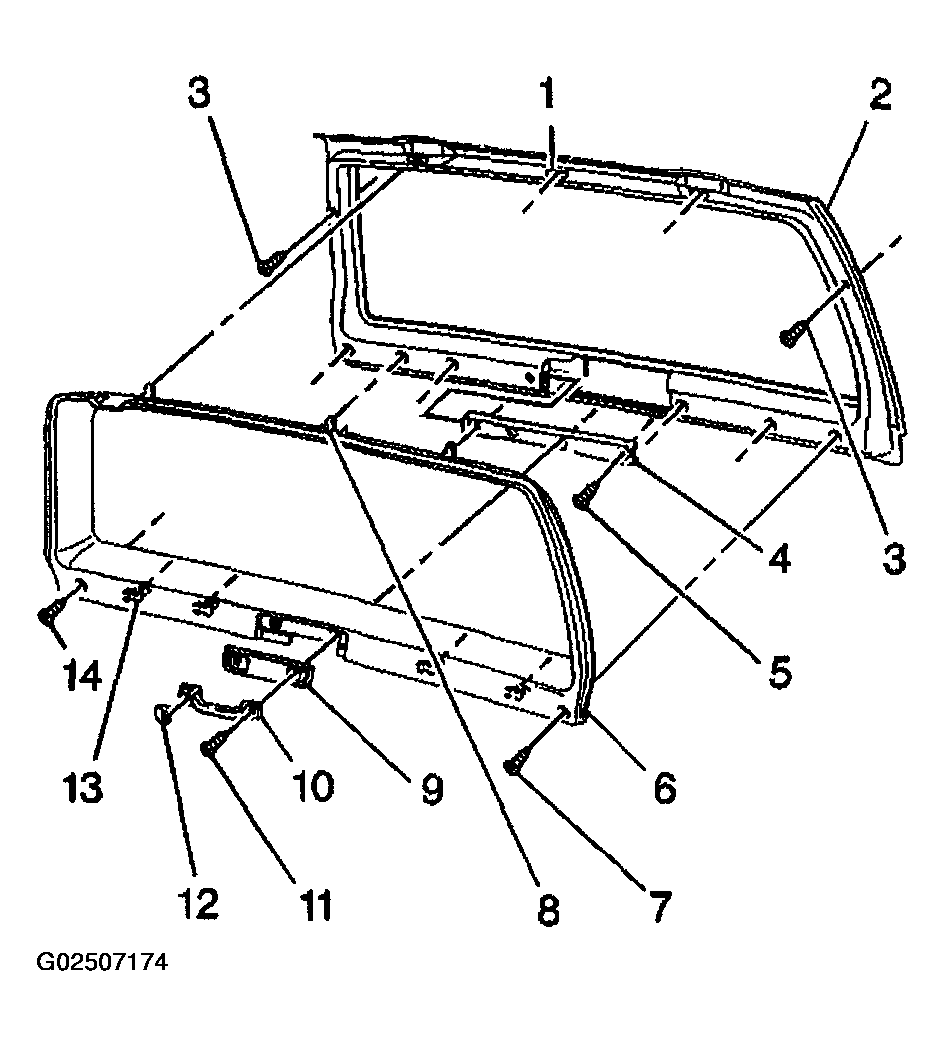

    6. Fig 1: Removing & Installing Lift Gate Garnish Molding
    G02507174Courtesy of GENERAL MOTORS CORP.
