Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel filler door. Refer to Fuel Filler Door Replacement  .
  2. Remove the fuel filler cap.
  3. Remove the screws that retain the pocket to the fuel filler pipe.
  4. Remove the screws that retain the fuel filler pocket to the body.
  5. Remove the fuel filler pocket.

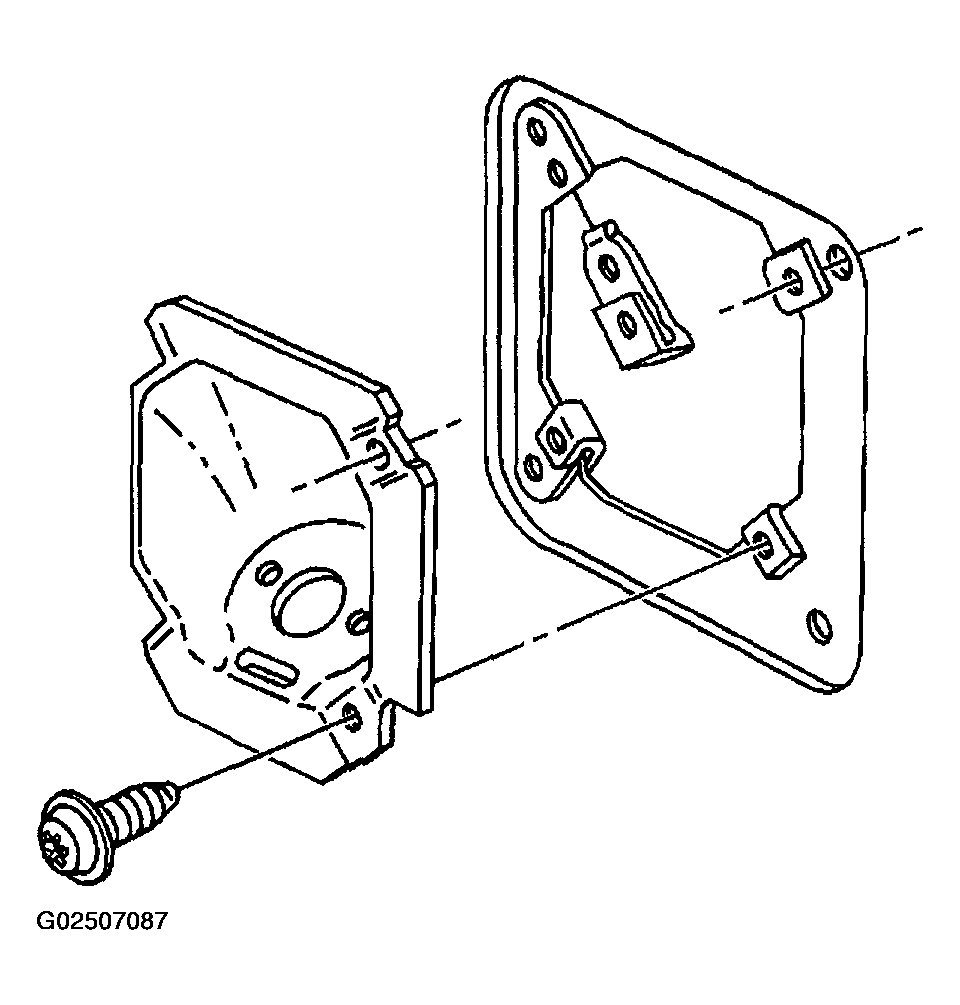

    6. Fig 1: Removing & Installing Fuel Filler Pocket
    G02507087Courtesy of GENERAL MOTORS CORP.
