Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the fuel filler pocket.
  2. Install the screws that retain the fuel filler pocket to the body.
  3. Install the screws that retain the pocket to the fuel filler pipe. Tighten:  Tighten the screws that retain the pocket to the fuel filler pipe to 2 N.m (18 lb in).
  4. Install the fuel filler cap.
  5. Install the fuel filler door. Refer to Fuel Filler Door Replacement  .

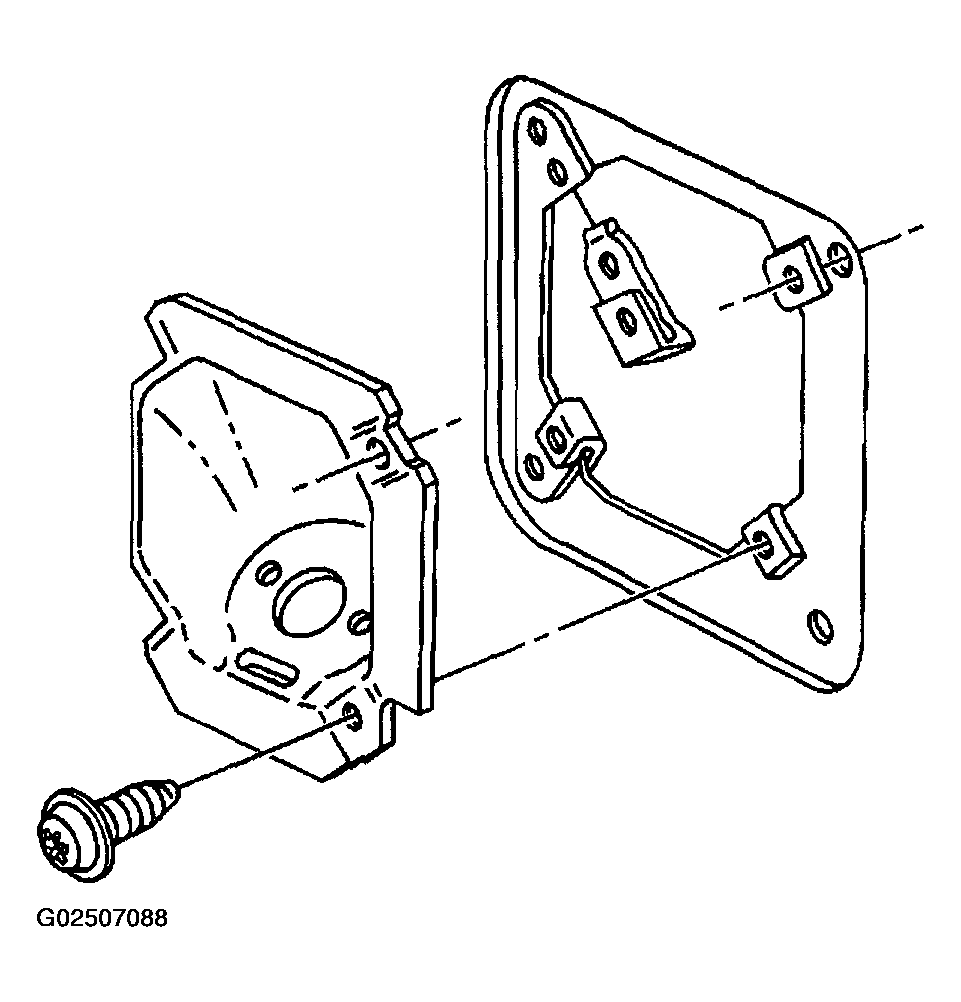

    6. Fig 1: Removing & Installing Fuel Filler Pocket
    G02507088Courtesy of GENERAL MOTORS CORP.
