Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws that retain the fuel filler door.
  2. Remove the fuel filler door.

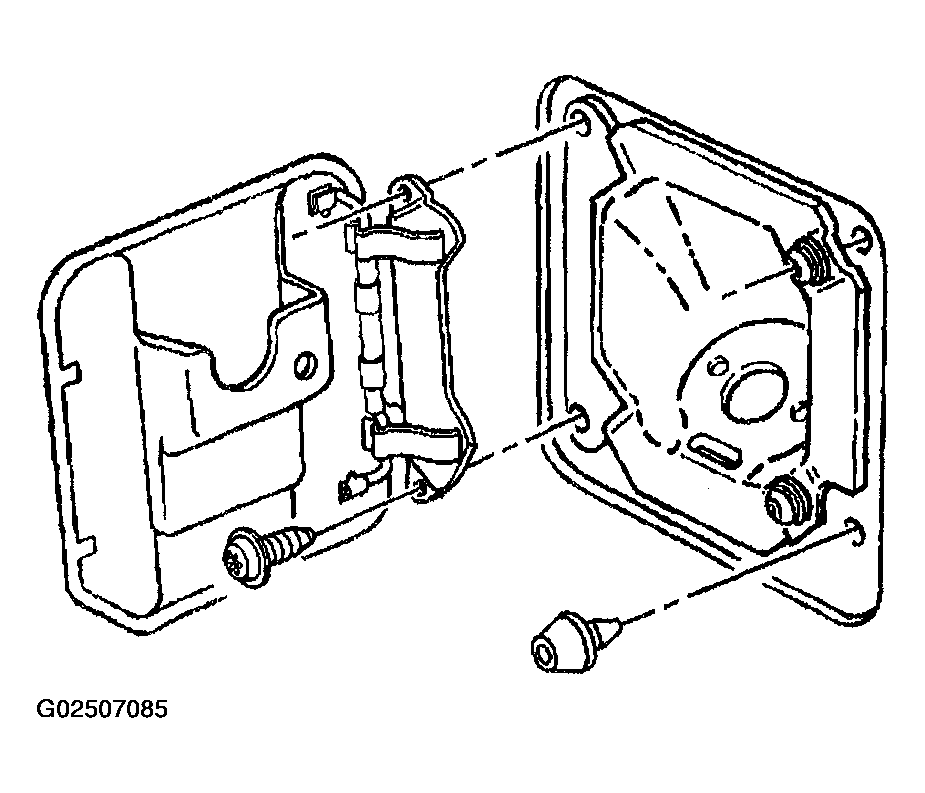

    3. Fig 1: Removing & Installing Fuel Filler Door
    G02507085Courtesy of GENERAL MOTORS CORP.
