Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  1. Install the fuel filler door.
  2. Install the screws that retain the fuel filler door. Tighten:  Tighten the screws that retain the fuel filler door to 2 N.m (18 lb in).

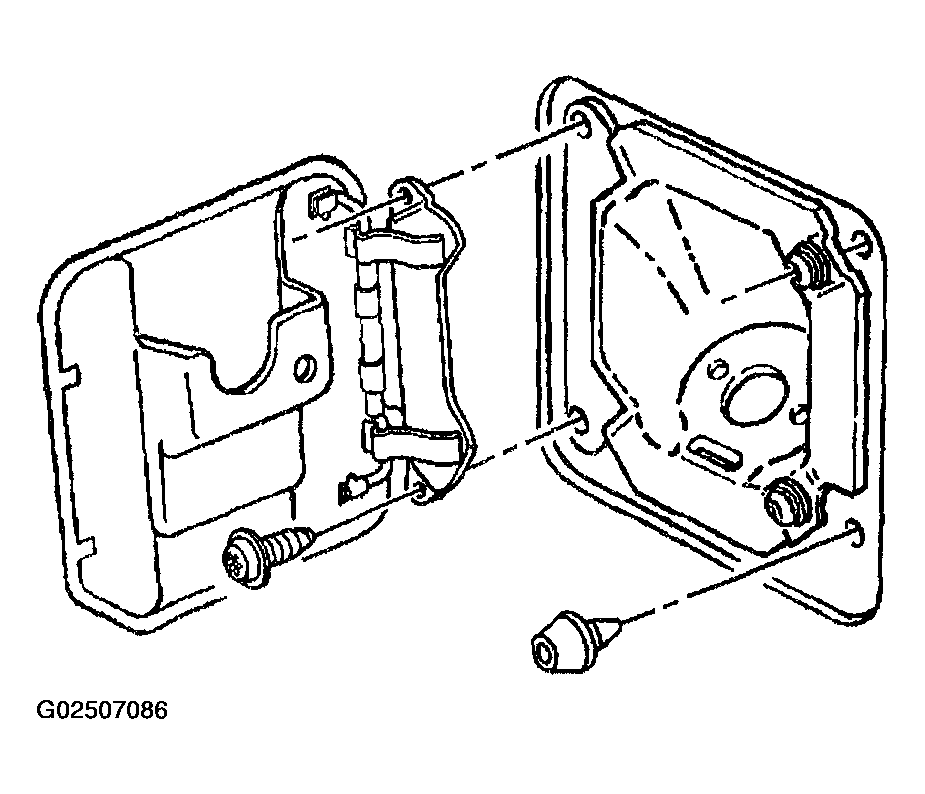

    3. Fig 1: Removing & Installing Fuel Filler Door
    G02507086Courtesy of GENERAL MOTORS CORP.
