Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .
  2. Separate the water deflector at the perforations. Use a sharp-bladed tool if needed. Refer to Water Deflector Replacement  .
  3. Remove the nuts from the striker (2).
  4. Remove the insulator (3).
  5. Remove the striker (4).

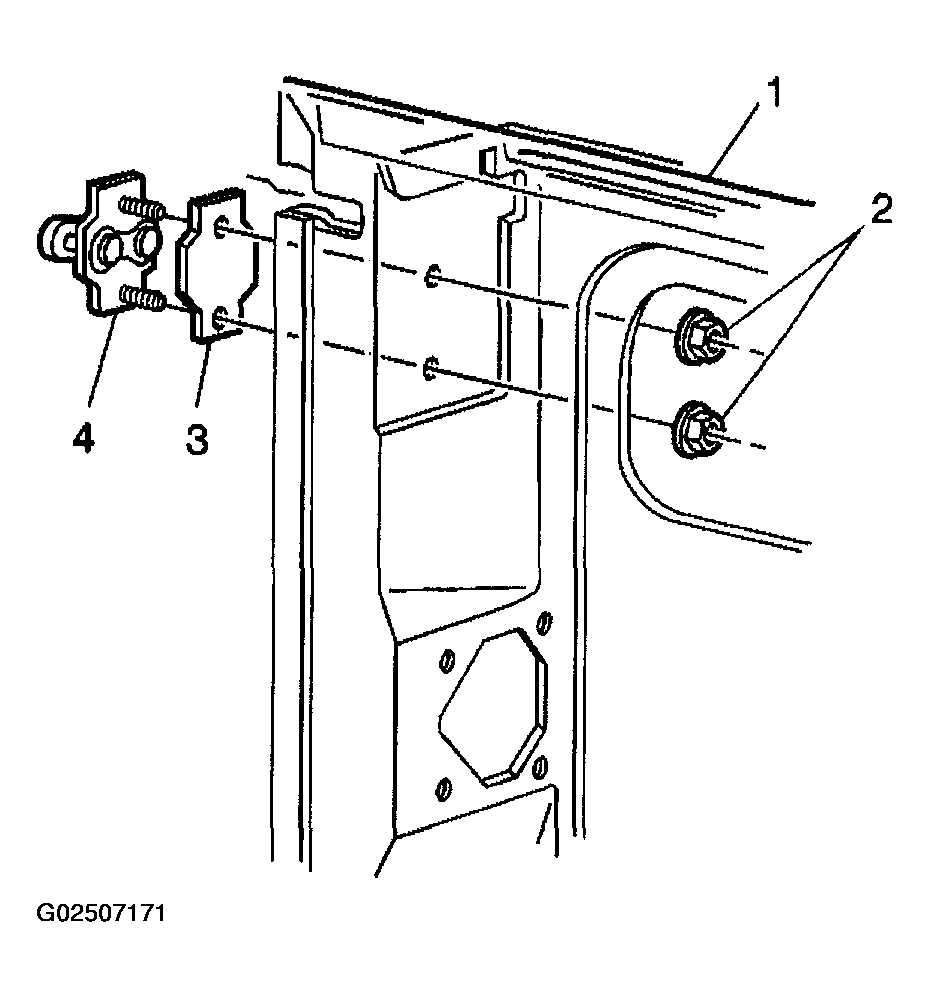

    6. Fig 1: Removing & Installing Left Rear Door Striker
    G02507171Courtesy of GENERAL MOTORS CORP.
