Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the striker to the door (4). The narrow part on the wedge plate of the striker should point toward the rear of the vehicle.
  2. Install the insulator (3).
    3. NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.
  3. Install the nuts to the striker (2). Tighten:  Tighten the nuts to the striker to 30 N.m (22 lb ft).
  4. Install the water deflector. Refer to Water Deflector Replacement  .
  5. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR (CARGO DOORS)  or TRIM PANEL REPLACEMENT - REAR DOOR (E54)  .

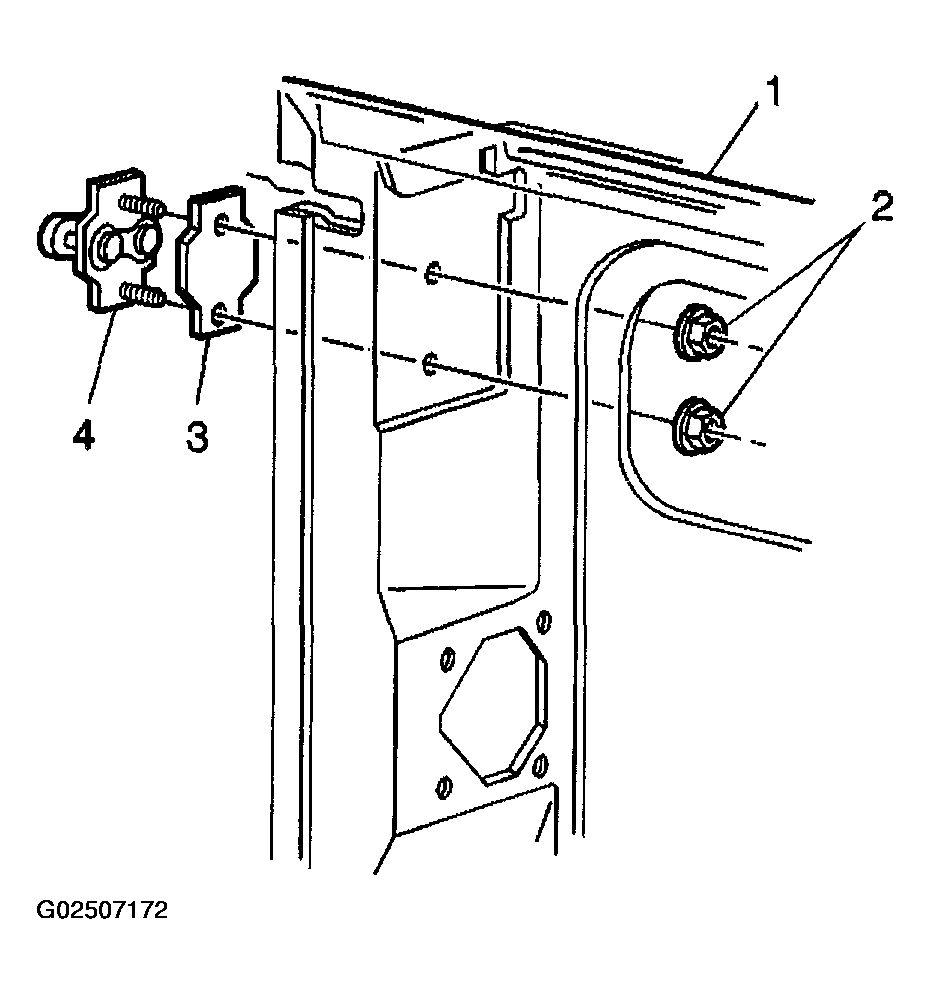

    6. Fig 1: Removing & Installing Left Rear Door Striker
    G02507172Courtesy of GENERAL MOTORS CORP.
